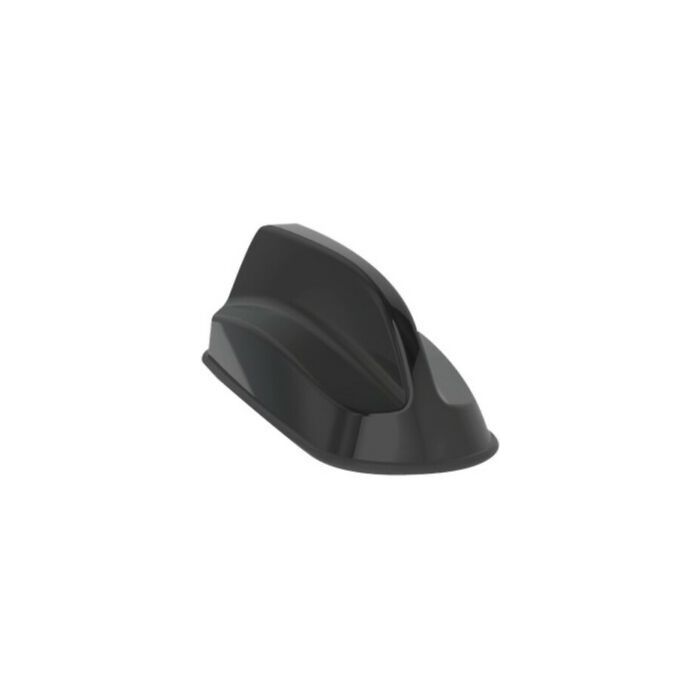

3-in-1 SharkFin, LTE + GNSS, 4m coax

ELECTRICAL DATA
Frequency Rang Elements 2 & 3 698-960 / 1710-2170, 2500-3800MHz

Operational Bands Elements 2 & 3 2G/3G/4G LTE

Peak gain: Isotropic Elements 2 & 3
698-960MHz 2dBi
1710-3800MHz 5dBi

Isolation with 4m/13’ CS29 2 & 3 > 11dB

Correlation Co-efficient < 0.2

Polarisation Vertical

Impedance 50Ω

Max Input Power 25W
MECHANICAL DATA

Dimensions

Height 50 mm (2.2”)

Length 170 mm (6.77”)

Width 60 mm (2.4”)

Operating Temp -40°/ 176°F (-40° / +80°C)

Material ASA, EPDM, Aluminum Alloy

Colour Black

Ingress Protection IP 66

Weight 913g
