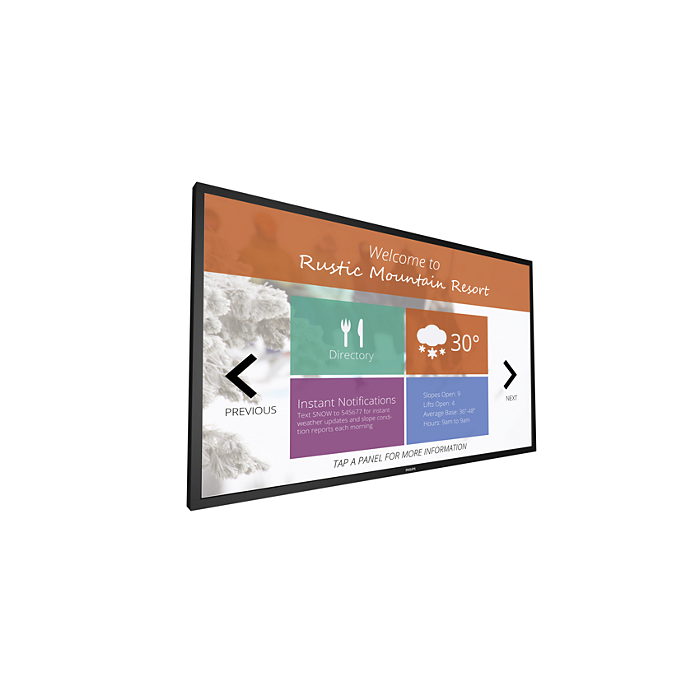

43BDL4051T 43" Full HD Android Touch Display

Diagonal screen size (metric)

108.0  cm

Diagonal screen size (inch)

42.5  inch

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60 Hz

Brightness

450  cd/m²

Contrast ratio (typical)

1100:1

Dynamic contrast ratio

500,000:1

Surface treatment

Anti-Glare coating

Aspect ratio

16:9

Response time (typical)

12  ms

Pixel pitch

0.49 x 0.49 mm

Display colors

16.7 million

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Picture enhancement

• 3/2 - 2/2 motion pull down
• 3D Combfilter
• Motion compens. deinterlacing
• Progressive scan
• 3D MA deinterlacing
• Dynamic contrast enhancement

Panel technology

IPS

Interactivity

Multi-touch technology

Infrared touch

Touch points

10 simultaneous touch points

Plug and play

HID compliant

Protection glass

• 5 mm tempered safety glass
• Anti-Glare
• Anti-Reflective

Connectivity

Video input

• DisplayPort (1.2)
• HDMI (x2)
• DVI-D
• USB
• VGA (via DVI)

Video output

• DisplayPort
• DVI-I
• VGA (via DVI-D)

Audio input

• Audio Left/Right (RCA)
• 3.5 mm jack

Audio output

• Audio Left/Right (RCA)
• External speaker connector

External control

• RJ45
• IR (in/out) 3.5 mm jack
• RS232C (in/out) 2.5 mm jack

Other connections

• micro SD
• micro USB
• mPCIe
• USB power outlet (5 V. 2 amp)
• USB

Supported Display Resolution

Computer formats

• 640 x 480, 60, 67, 72, 75Hz
• 800 x 600, 56, 60, 72, 75Hz
• 1024 x 768, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1280 x 1024, 60Hz
• 1360 x 768, 60Hz
• 1366 x 768, 60Hz
• 1440 x 900, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 1920 x 1200, 60Hz

Video formats

• 480i, 60Hz
• 480p, 60Hz
• 576p, 50Hz
• 576i, 50Hz
• 720p, 50, 60Hz
• 1080i, 50, 60Hz
• 1080p, 50, 60Hz

Convenience

Placement

• Landscape (24/7)
• Portrait (24/7)

Signal Loop Through

• RS232
• VGA
• IR Loopthrough
• DisplayPort
• DVI

Network controllable

• RS232
• RJ45
• One Wire (HDMI-CEC)
• HDMI (One Wire)

Picture performance

Advanced color control

Picture in picture

PIP

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

• Hidden
• Lockable

Remote control signal

Lockable

Energy saving functions

Smart Power

Other convenience

Carrying handles

Memory

16GB eMMC

Dimensions

Set Width

1002.6  mm

Set Height

590.8  mm

Set Depth

91.4  mm

Set Width (inch)

39.47  inch

Set Height (inch)

23.26  inch

Set Depth (inch)

3.60  inch

Product weight

19.4  kg

Product weight (lb)

42.77  lb

Bezel width

29.2 mm

VESA Mount

400 x 400 mm, M6

Sound

Built-in speakers

2 x 10W

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Relative humidity

20 ~ 80  %

MTBF

50,000  hour(s)

Altitude

0 ~ 3000 m

Temperature range (storage)

-20 ~ 60  °C

Power

Mains power

100 ~ 240 VAC, 50/60Hz

Standby power consumption

<0.5W

Consumption (Typical)

59  W

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• USB cable
• Remote Control
• Batteries for remote control
• Quick start guide

Optional accessories

ColourCalibrationKit (CCK4602)

Stand

BM05922 (Optional)

Miscellaneous

On-Screen Display Languages

• Arabic
• English
• French
• German
• Italian
• Japanese
• Polish
• Spanish
• Turkish
• Russian
• Simplified Chinese
• Traditional Chinese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals

• CE
• CCC
• FCC, Class B
• UL/cUL
• RoHS
• CB
• C-Tick
• BSMI
• EnergyStar 7.0
• GOST
• PSE
• VCCI

Warranty

3 year warranty
