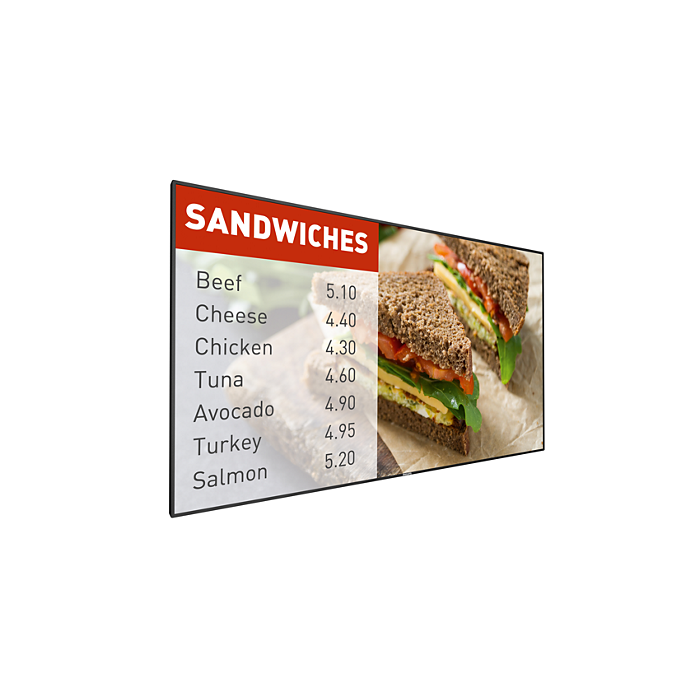

49BDL5055P - 49" 24/7 Android Display

Diagonal screen size (inch)

48.5  inch

Diagonal screen size (metric)

123.2  cm

Panel resolution

1920x1080p

Optimum resolution

1920 x 1080 @ 60Hz

Brightness

500  cd/m²

Contrast ratio (typical)

1300:1

Dynamic contrast ratio

500,000:1

Aspect ratio

16:9

Response time (typical)

8  ms

Pixel pitch

0.55926 x 0.55926 mm

Display colors

1.07 billion

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Operating system

Android 5.1.1

Connectivity

Video input

• Display Port1.2x1
• DVI-I x 1
• HDMI 1.4x2
• USB 2.0 (Type A) x2
• USB 2.0 (Type B )x1

Video output

• DisplayPortx1
• DVI-I x1

Audio input

3.5 mm jack

Audio output

3.5mm jack

Other connections

• OPS
• micro SD x1
• Micro USB(type B)x1

Optional WiFi functionality

requires WiFi module and external antennas

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Supported Display Resolution

Computer formats

• 1024 x 768, 60, 75Hz
• 1280 x 1024, 60Hz
• 1280 x 768, 60Hz
• 1280 x 800, 60Hz
• 1360 x 768, 60Hz
• 1600 x 1200, 60Hz
• 1920 x 1080, 60Hz
• 640 x 480, 60, 72, 75Hz
• 720 x 400, 70Hz
• 800 x 600, 60, 75Hz

Video formats

• 1080i, 25, 30Hz
• 1080p, 50, 60Hz
• 480I, 30Hz
• 480p, 60Hz
• 576i, 25Hz
• 576p, 50Hz
• 720p, 50, 60Hz

Dimensions

Set Width

1092.8  mm

Set Height

623.0  mm

Set Depth

56.8  mm

Set Width (inch)

43.0  inch

Set Height (inch)

24.5  inch

Set Depth (inch)

2.3  inch

Bezel width

6.5 mm

Product weight (lb)

41.9  lb

Product weight

19.0  kg

VESA Mount

400 x 400 mm, M6

Convenience

Placement

• Landscape
• Portrait

Tiled Matrix

Up to 15 x 15

Keyboard control

• Hidden
• Lockable

Signal Loop Through

• IR Loopthrough
• DisplayPort
• DVI
• RS232
• VGA

Network controllable

• RJ45
• HDMI (One Wire)
• RS232

Energy saving functions

Smart Power

Screen saving functions

Pixel Shift, Low Bright

Ease of installation

• AC Out
• Smart Insert
• Carrying Handles

Other convenience

G sensor

Power

Standby power consumption

<0.5 W

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (Typical)

95  W

Consumption (EPA 7.0)

82.08 W

Operating conditions

Temperature range (operation)

0 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80(operation),5 - 95(storage)  %

Altitude

0 ~ 3000 m

MTBF

60,000  hour(s)

Sound

Built-in speakers

2 x 10W RMS

Accessories

Included accessories

• Batteries for remote control
• Quick start guide
• Remote Control
• AC Power Cord
• RS232 cable

Included Accessories

• Edge Alignment Kit (2)-1pcs
• Philips logo
• Thumbscrew (8pcs)
• Edge Alignment Kit (1 )-2pcs
• RS232 daisy-chain cable
• Wifi Antennas (2 pcs)

Stand

BM04642/00(Optional)

Multimedia Applications

USB Playback Audio

• AAC
• M4A
• MP1
• MP2
• MP3
• WMA

USB Playback Picture

• BMP
• GIF
• JPEG
• JPG
• PNG

USB Playback Video

• 3GP
• AVI
• DAT
• FLV
• MKV
• MOV
• MP4
• MPG
• TS
• VOB
• WEBM

Miscellaneous

On-Screen Display Languages

• English
• French
• German
• Spanish
• Polish
• Turkish
• Russian
• Italian
• Simplified Chinese
• Traditional Chinese
• Arabic
• Japanese
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals

• EnergyStar 7.0
• CE
• FCC, Class B
• CCC
• BSMI
• CB
• VCCI
• CECP
• EAC
• PSB
• EMF
• UL/cUL

Warranty

3 year warranty
