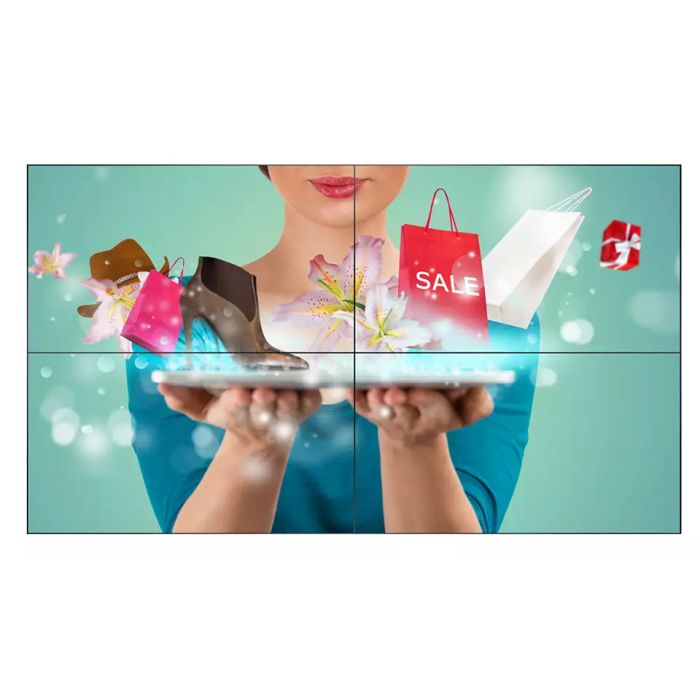

55BDL2105X 55" FHD 24/7 Tiled Display

Be the first to review this product

A$1,850.00

In stock

SKU

55BDL2105X

55BDL2105X 55" FHD 24/7 500cd/m² Slim-Bezel

Key Features:

Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
Cost-effective system solution
- FailOver ensures content is always playing
Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow bezels. For distraction-free images
Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size

Details

The 55BDL2105X is a 55 inch 24/7 video wall display with slim bezels to enable a clearer image. Failover ensures an output is always displayed even in the event of the primary source disconnecting. Also equipped with CMND & Control for network management alongside tiling mode for a videowall expreience without the need for external players.

Key Features:

Effortless setup. Total control.
- Operate, monitor and maintain with CMND & Control
- Add Android processing power with an optional CRD50 module
Cost-effective system solution
- FailOver ensures content is always playing
Brilliant images. Endless possibilities.
- Full HD monitors. Brilliant images. Clear contrast
- IPS panel: rich color consistency from every angle
- Ultra-narrow bezels. For distraction-free images
Powerful system solution
- Energy-saving automatic backlight control
- OPS slot allows for PC embedding without cabling
- Tiling mode. Create tiled 4K videowalls of any size

More Information

More Information
brand	Philips
Specifications	Picture/Display • Diagonal screen size: 54.5 inch / 138.7 cm • Panel resolution: 1920x1080p • Optimum resolution: 1920 x 1080 @ 60 Hz • Brightness: 500 cd/m² • Dynamic contrast ratio: 500,000:1 • Response time (typical): 8 ms • Aspect ratio: 16:9 • Viewing angle (H / V): 178 / 178 degree • Pixel pitch: 0.63 x 0.63 mm • Display colors: 16.7 M • Contrast ratio (typical): 1200:1 • Haze: 25 % Supported Display Resolution • Computer formats 640 x 480 60, 72, 75Hz 720 x 400 70Hz 800 x 600 60, 75Hz 1024 x 768 60, 75Hz 1280 x 768 60Hz 1280 x 800 60Hz 1280 x 960 60Hz 1280 x 1024 60Hz 1360 x 768 60Hz 1366 x 768 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz • Video formats 720p 50, 60Hz 1080i 25, 30Hz 1080p 50, 60Hz 2160P 50 60Hz ((HDMI/OPS/DP) Connectivity • Video input: Display Port1.2 (x1), DVI-D (x1), HDMI 2.0 (x2), VGA (Analog D-Sub) (x1) • Audio input: 3.5 mm mini jack (x1) • Video output: DisplayPort 1.2 (x1) • Audio output: 3.5 mm Mini Jack (x1) • External control: IR (in) 3.5 mm jack, LAN RJ45 (x2) • Other connections: OPS, USB 2.0 (x1), Thermal sensor Convenience • Placement: Landscape (24/7), Portrait (24/7) • Tiled Matrix: Up to 15 x 15 • Screen saving functions: Pixel Shift, Low Bright • Signal loop through: DisplayPort, RJ45 • Ease of installation: Carrying Handles, Smart Insert • Energy saving functions: Smart Power • Network controllable: LAN (RJ45) Operating conditions • Temperature range (operation): 0 ~ 40 °C • Temperature range (storage): -20 ~ 60 °C • Altitude: 0 ~ 3000 m • MTBF: 50,000 hour(s) • Humidity range (operation)[RH]: 20 - 80% (without condensation) • Humidity range (storage) [RH]: 5 - 95% (without condensation) Power • Consumption (Typical): 180 W • Consumption (Max): 340 W • Consumption (On mode): 140 W • Standby power consumption: 0.5 W • Energy Label Class: G Sound • Built-in speakers: 2 x 10W (RMS) Accessories • Included Accessories: Gap pad x3, IR sensor cable (1.8 m) (x1), Kit-1 (x1), Kit-2 (x2), Quick start guide (x1), Remote control & AAA batteries, RJ45 / RS232 converter, Wire Clamper (x3), Power cord, DP cable (x1), Edge alignment pin (x2), RJ45 cable (x1) Miscellaneous • On-Screen Display Languages: Arabic, English, French, German, Italian, Japanese, Polish, Russian, Spanish, Simplified Chinese, Turkish, Traditional Chinese • Regulatory approvals: CE, FCC, Class A, RoHS, CB, BSMI, ETL • Warranty: 3 years warranty Dimensions • Smart Insert mount: 100mm x 100mm, 6xM4xL6 • Set dimensions (W x H x D): 1213.5 x 684.3 x 97.8 mm(D@WallMount)/97.8 mm(D@Handle) mm • Set dimensions in inch (W x H x D): 47.77 x 26.94 x 3.85 (D@WallMount)/3.85 (D@Handle) inch • Bezel width: 2.3 mm + 1.2 mm • Wall Mount: 400mm x 400mm, M6 • Product weight: 28.8 kg
Description	The 55BDL2105X is a 55 inch 24/7 video wall display with slim bezels to enable a clearer image. Failover ensures an output is always displayed even in the event of the primary source disconnecting. Also equipped with CMND & Control for network management alongside tiling mode for a videowall expreience without the need for external players. Key Features: Effortless setup. Total control. Operate, monitor and maintain with CMND & Control Add Android processing power with an optional CRD50 module Cost-effective system solution FailOver ensures content is always playing Brilliant images. Endless possibilities. Full HD monitors. Brilliant images. Clear contrast IPS panel: rich color consistency from every angle Ultra-narrow bezels. For distraction-free images Powerful system solution Energy-saving automatic backlight control OPS slot allows for PC embedding without cabling Tiling mode. Create tiled 4K videowalls of any size

Reviews

Write Your Own Review

Downloads

Datasheet

Quick Start Guide

User Manual
