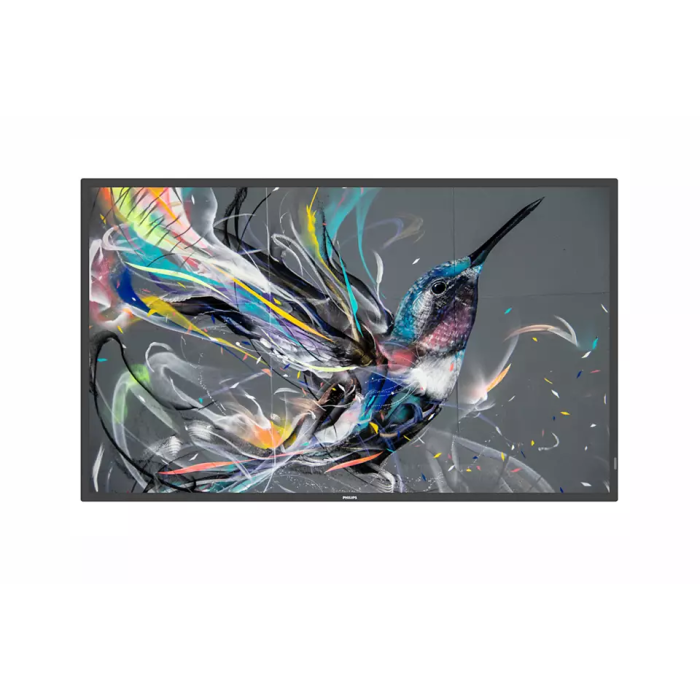

55BDL3550Q 55" UHD Android Display

Picture/Display

Diagonal screen size (metric)

138.7  cm

Diagonal screen size (inch)

54.6  inch

Panel resolution

3840 x 2160

Optimum resolution

3840 x 2160 @ 60 Hz

Brightness

400  cd/m²

Contrast ratio (typical)

1300:1

Dynamic contrast ratio

500,000:1

Response time (typical)

9  ms

Aspect ratio

16:9

Viewing angle (horizontal)

178  degree

Viewing angle (vertical)

178  degree

Pixel pitch

0.315 x 0.315 mm

Display colors

1.07 Billion

Clinical image

D-Image preset (dicom part 14 compatible)

Operating system

Android 8.0

Panel technology

IPS

Picture enhancement

• 3/2 - 2/2 motion pull down
• 3D Combfilter
• 3D MA deinterlacing
• Dynamic contrast enhancement
• Motion compens. deinterlacing
• Progressive scan

Supported Display Resolution

Computer formats

• 1920 x 1080, 60Hz
• 1600 x 1200, 60Hz
• 1440 x 900, 60Hz
• 1280 x 1024, 60Hz
• 1280 x 720, 60Hz
• 1280 x 800, 60Hz
• 1024 x 768, 60, 70, 75Hz
• 720 x 400, 70Hz
• 640 x 480, 60, 67, 72, 75Hz
• 1152 x 870, 75Hz
• 1680 x 1050, 60Hz
• 800 x 600, 56, 60, 72, 75Hz
• 1152 x 864, 75Hz
• 832 x 624, 75Hz

Video formats

• 3840 x 2160, 60Hz
• 3840 x 2160, 30Hz
• 480i, 60Hz
• 480p, 60Hz
• 576i, 50Hz
• 576p, 50Hz
• 1080p, 50, 60Hz
• 1080i, 50, 60Hz
• 720p, 50,60 Hz

Connectivity

Video input

• DVI-D (x1)
• HDMI 2.0 (x2)
• USB 2.0 (x2)
• VGA (Analog D-Sub) (x1)

Audio input

3.5 mm jack

Audio output

3.5mm jack

External control

• RJ45
• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack

Convenience

Energy saving functions

Smart Power

Tiled Matrix

Up to 15 x 15

Start-up

• Switch on delay
• Switch on status
• Boot on source

Start-up window

enable / disable Philips logo

Keyboard control

• Lockable
• Hidden

Network controllable

• RS232
• RJ45

Signal loop through

• RS232
• IR Loopthrough

Placement

• Landscape (18/7)
• Portrait (18/7)

Remote control signal

Lockable

Dimensions

Bezel width

13.9 mm (Even bezel)

Set Width

1241.8  mm

Set Height

712.6  mm

Set Depth

63.6  mm

Set Width (inch)

48.89  inch

Set Height (inch)

28.06  inch

Set Depth (inch)

2.50  inch

Wall Mount

400mm x 400mm , M6

Product weight

16.6  kg

Product weight (lb)

36.60  lb

Operating conditions

Temperature range (operation)

5 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

MTBF

30,000  hour(s)

Humidity range (operation)[RH]

20 ~ 80% RH (No condensation)

Humidity range (storage) [RH]

5 ~ 95% RH (No condensation)

Altitude

0 ~ 3000 m

Power

Mains power

100 ~ 240 VAC

Standby power consumption

<0.5 W

Consumption (Max)

175 W

Consumption (Typical)

125  W

Power Saving Features

Smart Power

Energy Label Class

G

Sound

Built-in speakers

2 x 10W RMS

Multimedia Applications

USB Playback Video

• MPEG
• H.264
• H.263
• H.265

USB Playback Picture

• JPEG
• BMP
• PNG

USB Playback Audio

• AAC
• HEAAC
• MPEG

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Remote Control
• Batteries for remote control
• Quick start guide

Included Accessories

• IR sensor cable (1.8 m) (x1)
• RS232 daisy-chain cable
• Philips logo (x1)
• USB Cover and screw (x2)

Stand

BM05922(optional)

Miscellaneous

Warranty

3 year warranty

On-Screen Display Languages

• English
• French
• German
• Italian
• Polish
• Turkish
• Russian
• Simplified Chinese
• Spanish
• Traditional Chinese
• Arabic
• Japanese

Regulatory approvals

• CE
• CB
• BSMI
• CU
• EPA
• ETL
• FCC, Class A
• J-Moss
• PSB
• VCCI

Internal Player

CPU

• Dual core cortex A53 1.1G Hz
• Dual core cortex A73 1.15G Hz

GPU

ARM Mali G51

Memory

• 2GB DDR3
• 8GB
