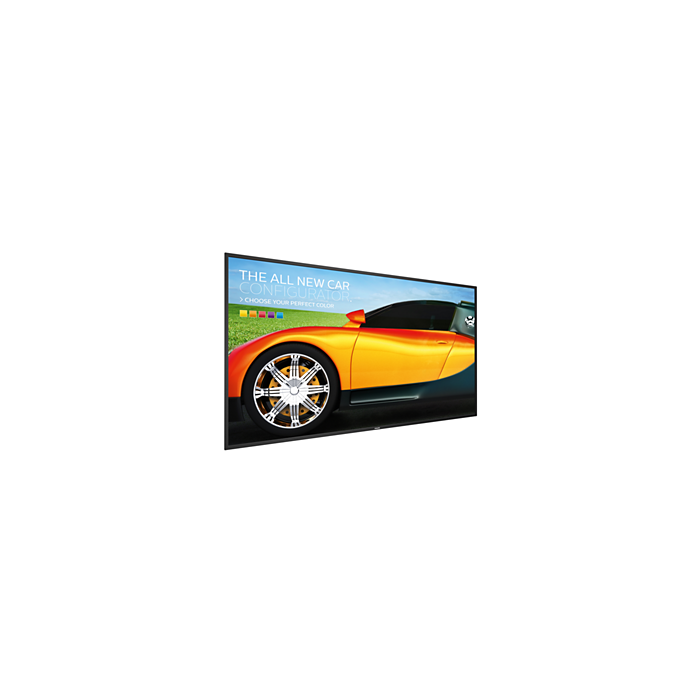

75BDL3050Q - 75" 16/7 4K UHD Display

Connectivity

Video input

• VGA (Analog D-Sub)
• DisplayPort (1.2)
• HDMI (x4)
• USB 2.0 (Type A) (x2)

Audio input

3.5 mm jack

Audio output

Audio Left/Right (RCA)

External control

• RS232C (in/out) 2.5 mm jack
• IR (in/out) 3.5 mm jack
• RJ45

Other connections

• OPS
• IR out
• AC-out
• Analog (D-sub input)
• Analog audio Left/Right out
• Display Port
• HDMI
• micro SD
• PC Audio in
• RS232 Serial
• USB 2.0
• USB power outlet (5 V. 2 amp)

Convenience

Screen saving functions

Pixel Shift, Low Brightness

Keyboard control

Lockable

Network controllable

• LAN (RJ45)
• RS232
• Card OPS RS232
• HDMI (One Wire)

Signal Loop Through

• RS232
• IR Loopthrough

Ease of installation

• Smart Insert
• AC Out
• Carrying Handles

Energy saving functions

Smart Power

Placement

Landscape (18/7)

Remote control signal

Lockable

Tiled Matrix

Up to 10 x 15

Memory

8GB eMMC

Dimensions

Bezel width

12.5 (Top/Left/Right) 16.0 (Bottom) mm

Set Width

1676.6  mm

Set Height

955  mm

Set Depth

73.8  mm

Set Width (inch)

66.01  inch

Set Height (inch)

37.60  inch

Set Depth (inch)

2.91  inch

Product weight

53.3  kg

Product weight (lb)

117.5  lb

VESA Mount

600 x 400 mm M8

Operating conditions

Altitude

0 ~ 3000 m

Temperature range (operation)

0 ~ 40  °C

Temperature range (storage)

-20 ~ 60  °C

Relative humidity

20 ~ 80 (operation),10 - 90%(storage)  %

MTBF

50,000  hour(s)

Power

Mains power

100 ~ 240 VAC, 50 ~ 60 Hz

Consumption (On mode)

237 W

Standby power consumption

<0.5W

Power Saving Features

Smart Power

Sound

Built-in speakers

2 x 10W RMS

Accessories

Included accessories

• AC Power Cord
• RS232 cable
• Batteries for remote control
• Quick start guide
• Remote Control
• HDMI cable
• IR sensor cable (1.8M)

Included Accessories

• RS232 daisy-chain cable
• USB Cover and screw x1

Multimedia Applications

USB Playback Video

• MKV
• MP4
• MPEG
• MPG
• TS
• WMV
• ASF
• AVI
• DAT
• FLV
• MOV
• TRP
• VOB
• WEBM

USB Playback Picture

• BMP
• JPEG
• JPG
• PNG

USB Playback Audio

• AAC
• M4A
• MP3
• WMA

Miscellaneous

Warranty

3 year warranty

On-Screen Display Languages

• Arabic
• Simplified Chinese
• Traditional Chinese
• English
• French
• German
• Italian
• Polish
• Russian
• Spanish
• Turkish
• Japanese
• Czech
• Danish
• Dutch
• Finnish
• Norwegian
• Portuguese
• Swedish

Regulatory approvals

• CE
• UL/cUL
• CB
• FCC, Class B
• BSMI
• CCC
• EAC
• EMF
• PSB

Internal Player

Storage

8GB eMMC

CPU

Quad Core Full HD

Memory

2GB DDR3
