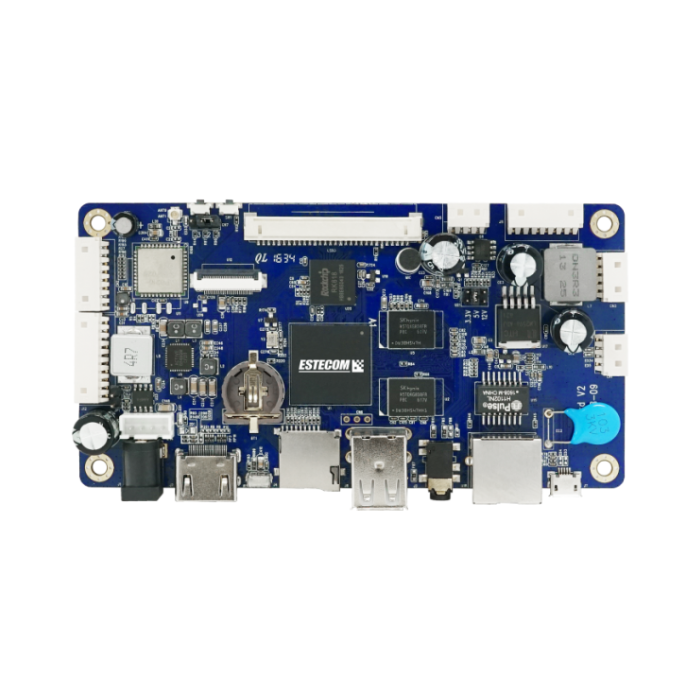

A3188-S Multi Media Player
Multi-purpose LCD controller
Android & Linux
Quad Core Cortex A9
CMS avail to suit
A3188-S is a low power, high performance processor for mobile phones, personal mobile internet device and other digital multimedia applications, and integrates quad-core Cortex A9 with separately NEON and FPU coprocessor. A3188-S supports almost full-format video decoder by 1080p@60fps, also support H.264/MVC/VP8 encoder by 1080p@30fps, high quality JPEG encoder/decoder, special image preprocessor and postprocessor. Embedded 3D GPU makes Android 3188 completely compatible with OpenGL ES2.0 and 1.1, OpenVG 1.1. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation
| Specifications | Dimension 133x 70mm Android version 4.4.4 Ice cream sandwitch Output Signal 2CH LVDS, HDMI Maximum Resolution 1920x1080 @60Hz Local Control OSD (On Screen Display) and IR Remote Control (UART) RS-232 Operating Temperature -20°C ~70°C Humidity 8% ~ 90% Storage 8GB NAND Memory, MicroSD (Max 32GB) Input Power Voltage +24VDC or +12VDC Storage Temperature -30°C ~80°C Ethernet IEEE802.3 10/100Mbps with Twisted pair WiFi IEEE802.11b/g/n USB External 2port, Internal 1port |
|---|---|
| Description |
A3188-S is a low power, high performance processor for mobile phones, personal mobile internet device and other digital multimedia applications, and integrates quad-core Cortex A9 with separately NEON and FPU coprocessor. A3188-S supports almost full-format video decoder by 1080p@60fps, also support H.264/MVC/VP8 encoder by 1080p@30fps, high quality JPEG encoder/decoder, special image preprocessor and postprocessor. Embedded 3D GPU makes Android 3188 completely compatible with OpenGL ES2.0 and 1.1, OpenVG 1.1. Special 2D hardware engine with MMU will maximize display performance and provide very smoothly operation |
