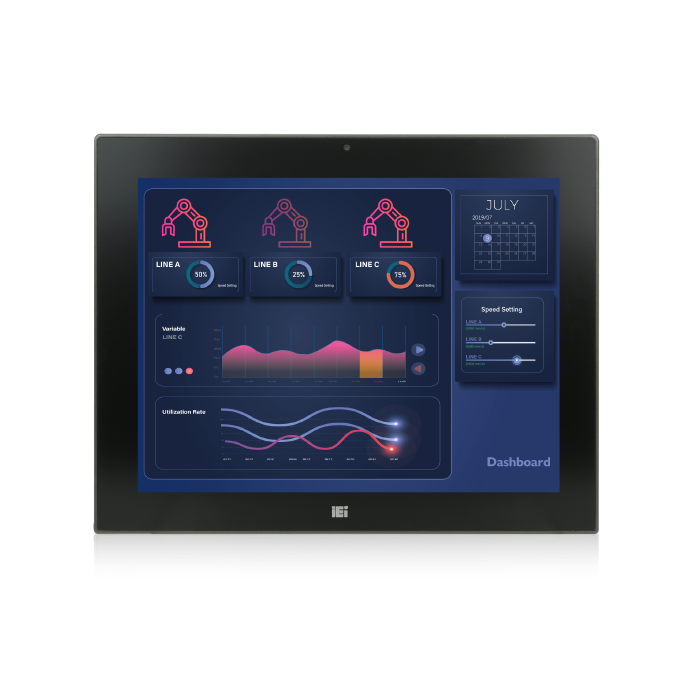

AFL3-12A-AL 12" Celeron POE Panel PC
12.1” 500 cd/m² 1024x768 with Intel Celeron Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone
Key Features:
-
12.1” light industrial interactive panel PC
-
9 V ~ 30 V wide range DC input with lockable DC jack
-
Selectable AT/ATX power mode
-
Built-in speakers
-
Support PoE PD IEEE803.2 af/at/bt
-
IP64-compliant front panel
-
Touch screen with anti-UV / anti-glare coating
12.1” 500 cd/m² 1024x768 with Intel Celeron Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone
Key Features:
-
12.1” light industrial interactive panel PC
-
9 V ~ 30 V wide range DC input with lockable DC jack
-
Selectable AT/ATX power mode
-
Built-in speakers
-
Support PoE PD IEEE803.2 af/at/bt
-
IP64-compliant front panel
-
Touch screen with anti-UV / anti-glare coating
More Information
| brand |
IEI Integration Corp. |
| Specifications |
| System |
| Cooling method / System Fan |
Fanless |
| CPU |
Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz) |
| Storage |
1 x 2.5” SATA 3Gb/s HDD bay
1 x M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal) |
| Communication |
| Bluetooth |
Bluetooth V4.1 |
| Wireless |
IEEE 802.11a/b/g/n/ac |
| I/O Interface |
| Ethernet |
2 x PCIe GbE by Intel® i211 controller |
| Audio |
AMP 2W + 2W (internal speaker) |
| Audio Codec |
ALC269 |
| RAM |
one 204-pin 1866MHz DDR3L DIMMs support up to 8GB |
| Power |
| Power Requirement |
9~30V , 6.67A~5A |
| Environment |
| Operating Temperature |
-20°C ~ 50°C |
| Humidity |
10% to 95% (non-condensing) |
| Storage Temperature |
-20°C ~ 60°C |
| Weight |
| Weight |
1.92kg/3.95kg |
| LCD |
| Size |
12.1” |
| Resolution |
1024 x 768 (4:3) |
| Brightness (cd/m2) |
500 |
| Contrast Ratio |
700:1 |
| LCD Color |
16.2M |
| Pixel Pitch (mm) |
0.240 (H) x 0.240 (V) |
| Viewing Angle (H-V) |
160° / 160° |
| Backlight MTBF |
50000 (LED backlight) |
| Touch |
| Touch Screen |
Projected capacitive type with USB interface (anti-UV) |
| Touch Controller |
EETI EXC3146 |
| Other Features |
| Camera |
2-megapixel with low light function |
| Microphone |
digital microphone |
| I/O Interface |
| I/O Interface |
1 x AT/ATX Switch |
| |
1 x Clear CMOS |
| |
1 x Line out |
| |
1 x RS-232 (RS-232 by DP9 (RI/5V , 1A)) |
| |
1 x RS-422/485 (RS-232/422/485 by RJ45) |
| |
2 x USB 2.0 |
| |
2 x USB 3.2 Gen1x1 |
| |
1 x HDMI (output) |
| |
2 x LAN (GbE) |
| |
1 x Power Switch |
| |
1 x Reset Button |
| |
1 x Power In (9 V ~ 30 V lockable DC jack) |
| OS Support |
| OS Support |
Microsoft Windows 10 / Windows 11, Linux |
| AFL3-PD-BT01-KIT01-R10 |
PoE PD IEEE802.3 af/at/bt module kit , only for AFL3-xxx-AL optional (W10A/12A/W15A) , R10 |
| AFL3-12A-AL-J2/P/PC/4G-R10 |
12.1”500 cd/m² 1024x768 fanless Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10 |
| Package Content |
-
4 x Round head machine screw
-
4 x Pan head machine screw
-
1 x Power cord
-
1 x Power adapter
-
1 x RJ-45 to DB-9 COM port transfer cable
|
|
| Description |
12.1” 500 cd/m² 1024x768 with Intel Celeron Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone
Key Features:
-
12.1” light industrial interactive panel PC
-
9 V ~ 30 V wide range DC input with lockable DC jack
-
Selectable AT/ATX power mode
-
Built-in speakers
-
Support PoE PD IEEE803.2 af/at/bt
-
IP64-compliant front panel
-
Touch screen with anti-UV / anti-glare coating
|
