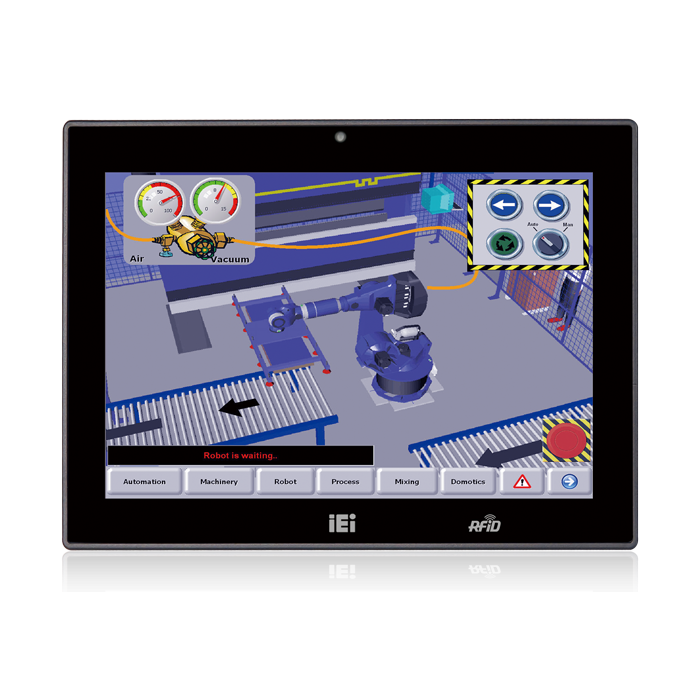

AFL3-12A-BT 12.1" Celeron Panel PC

A$0.00

In stock

SKU

AFL3-12A-BT-J1/xx/xG-R16

12.1” 500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

W10”~12” light industrial interactive panel PC
9 V ~ 30 V wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64-compliant front panel
IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

12.1” 500 cd/m² XGA fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

W10”~12” light industrial interactive panel PC
9 V ~ 30 V wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64-compliant front panel
IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

brand

IEI Integration Corp.

Specifications

Communication
Wi-Fi	IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions	303 x 243 x 44
Environment
Operating Temperature	-20°C~50°C
Storage Temperature	-20°C~60°C
I/O Interface
I/O Ports and Switches	1 x RS-232 COM port (RJ-45 connector) 1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V) 2 x USB 3.0 2 x USB 2.0 2 x RJ-45 for GbE LAN 1 x Power switch 1 x Audio port (line-out)
RAM	One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM preinstalled (system max. 8GB)
LCD
Backlight MTBF	50000 (LED backlight panel)
Brightness (cd/m2)	500
Contrast Ratio	700:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1024 x 768
Size	12.1"
Viewing Angle (H-V)	160º/160º
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power Requirement	9~30 VDC
Storage
Storage	mSATA 2.5” SATA 3Gb/s HDD bay
System
CPU	Intel® Celeron® J1900 (quad core, 2.0 GHz)
Touch
Touch Controller	PenMount DMC9000/ EETI EXC7200
Touch Screen	5-wire resistive touch window/ projected capacitive type
Weight
Weight	1.92Kg/3.95Kg
I/O Interface
I/O Interface	1 x AT/ATX switch
	1 x Audio((line-out))
	1 x DC Input Jack(9-30V lockable power jack)
	2 x LAN(RJ-45 for GbE LAN)
	1 x Power Switch
	1 x RS-232(COM port (RJ-45 connector))
	1 x RS-422/485(COM port (DB-9 connector)(RI/5V/12V))
	1 x Reset Button
	2 x USB 2.0
	2 x USB 3.0

AFL3-12A-BT-J1/R/4G-R15	12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 4GB DDR3L RAM , with AG, R15
AFL3-12A-BT-J1/R/2G-R15	12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, resistive touch screen, 2GB DDR3L RAM , with AG, R15
AFL3-12A-BT-J1/PC/4G-R15	12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 4GB DDR3L RAM , with AG, R15
AFL3-12A-BT-J1/PC/2G-R15	12.1”500 cd/m² XGA fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz, 802.11a/b/g/n/ac wireless module, projected capacitive touch screen, 2GB DDR3L RAM , with AG, R15

Package Content	10 x Screw Pack M2 1 x Power Adpater 1 x Touch Pen 1 x RJ45 to RS-232 Transfer Cable

Description

12.1” 500 cd/m² XGA fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz

Key Features:

W10”~12” light industrial interactive panel PC
9 V ~ 30 V wide range DC input with lockable DC jack
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64-compliant front panel
IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
