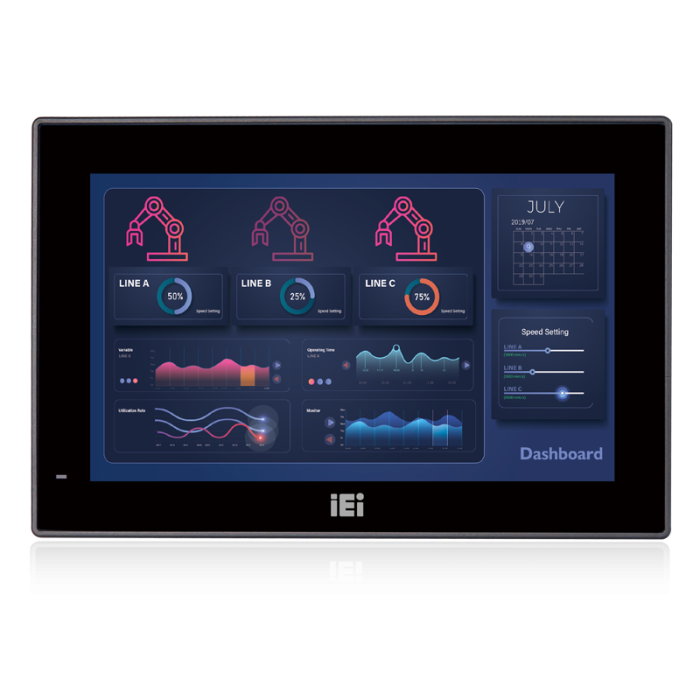

AFL3-W07A-AL - 7" Celeron POE Panel PC
Intel® Celeron N3350
(2M Cache, up to 2.4 GHz) TDP 6W
7" 500cd/m2 1024x600 Panel PC with Intel® Celeron® Processor N3350 (6W) on-board Processor , on-baord POE at, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch,R10
- W7” light industrial interactive panel PC
- 12V DC input with lockable DC jack
- Selectable AT/ATX power mode
- Built-in speakers
- On board IEEE802.3 at standard
- IP65 compliant front panel
- Touch screen wth anti-UV / anti-glare coating
More Information
| Specifications |
| Spec Item |
Description |
| Communication |
| Bluetooth |
Bluetooth V4.1 |
| Wireless |
IEEE 802.11a/b/g/n/ac |
| Environment |
| Humidity |
10% to 95% (non-condensing) |
| IP Level |
IP 65 compliant front panel |
| Operating Temperature |
-20ºC ~ 50ºC |
| Safety & EMC |
CE / FCC class A |
| Storage Temperature |
-20°C~60°C |
| I/O Interface |
| Audio |
AMP 2W (internal speaker) |
| Audio Codec |
ALC269 |
| Ethernet |
2x PCIe GbE by Intel® i211 controller |
| RAM |
one 204-pin 1866MHz DDR3L DIMMs support up to 8GB |
| LCD |
| Backlight MTBF |
20000 (LED backlight) |
| Brightness (cd/m2) |
500 |
| Contrast Ratio |
700:1 |
| LCD Color |
16.7M |
| Pixel Pitch (mm) |
0.1506 (H) x 0.1432 (V) |
| Resolution |
1024 x 600 (16:9) |
| Size |
7” |
| Viewing Angle (H-V) |
150º / 145º |
| Power |
| Power Requirement |
12V , 3A |
| System |
| Cooling method / System Fan |
Fanless |
| CPU |
Intel® Celeron N3350
(2M Cache, up to 2.4 GHz) TDP 6W |
| Storage |
1 x M.2 B+M key PCIe 2242 (USB/SATA signal) |
| Touch |
| Touch Controller |
EXC80H60 |
| Touch Screen |
Projected capacitive type with USB interface (anti-UV) |
| Weight |
| Weight |
0.73kg/1.81kg |
| I/O Interface |
| I/O Interface |
1 x AT/ATX Switch |
| 1 x Clear CMOS |
| 2 x LAN(GbE) |
| 1 x Power In |
| 1 x Power Switch |
| 1 x Reset Button |
| 2 x USB 2.0 |
| 2 x USB 3.0 |
|
| Description |
7" 500cd/m2 1024x600 Panel PC with Intel® Celeron® Processor N3350 (6W) on-board Processor , on-baord POE at, 1*4GB DDR3L , 802.11a/b/g/n/ac WiFi module, PCAP touch,R10
- W7” light industrial interactive panel PC
- 12V DC input with lockable DC jack
- Selectable AT/ATX power mode
- Built-in speakers
- On board IEEE802.3 at standard
- IP65 compliant front panel
- Touch screen wth anti-UV / anti-glare coating
|
