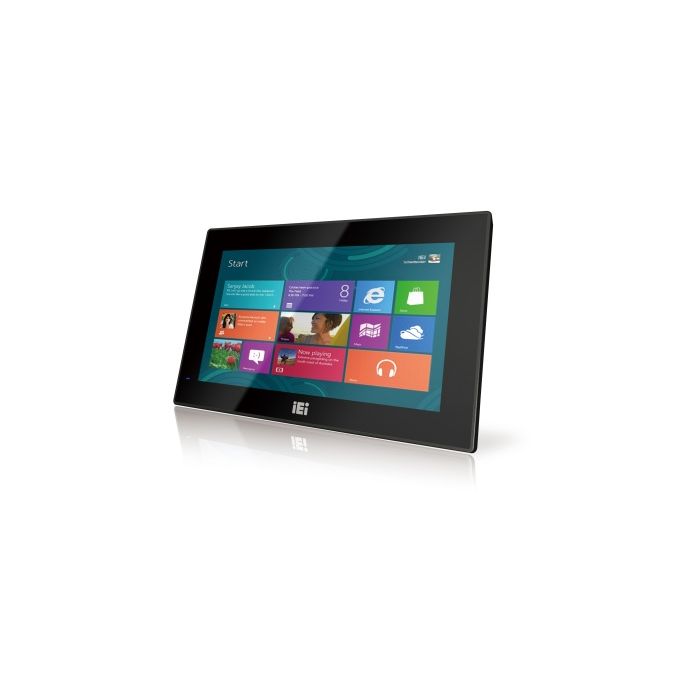

AFL3-W07A-BT 7" Wide Celeron Panel PC

A$0.00

In stock

SKU

AFL3-W07A-BT

7" 500cd/m2 1024x600 HD fanless panel PC with Intel Celeron N2807 dual core 1.58 GHz

7" 500cd/m2 1024x600 HD fanless Panel PC with Intel Celeron N2807 dual core 1.58 GHz

● W7”~8.4” light industrial interactive panel PC

● 9 V ~ 30 V wide range DC input with lockable DC jack

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64/IP65 compliant front panel

● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Wi-Fi	IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions	191 x 127 x 43
Environment
Operating Temperature	-20°C~50°C
Storage Temperature	-20°C~60°C
I/O Interface
I/O Ports and Switches	2 x RS-232 COM port (DB-9 connector) 2 x USB 3.0 2 x GbE LAN 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V Lockable power jack
RAM	2GB DDR3L onboard RAM/4GB DDR3L onboard RAM
LCD
Backlight MTBF	20000 (LED backlight panel)
Brightness (cd/m2)	500
Contrast Ratio	700:1
LCD Color	16.2M
Pixel Pitch (mm)	0.0635 (H) x 0.1905 (V)
Resolution	1024 x 600
Size	7"
Viewing Angle (H-V)	150º/145º
Other Features
Camera	N/A
Microphone	N/A
Power
Power Requirement	9~30 VDC
Storage
Storage	mSATA
System
CPU	Intel® Celeron® N2807 (dual core, 1.58 GHz)
Touch
Touch Controller	EETI EXC3160
Touch Screen	projected capacitive type
Weight
Weight	0.73Kg
I/O Interface
I/O Interface	2 x RS-232(COM port (DB-9 connector))
	1 x Reset Button
	1 x Power Switch
	2 x LAN
	1 x AT/ATX switch
	2 x USB 3.0
	1 x DC Input Jack(9-30V Lockable power jack)
