1 x RS-232 COM port (RJ-45 connector) 1 x RS-232/422/485 COM port (DB-9 connector)(RI/5V/12V) 2 x USB 3.0 2 x USB 2.0 2 x RJ-45 for GbE LAN 1 x Power switch 1 x Audio port (line-out) 1 x Reset button 1 x AT/ATX switch 1 x 9-30V DC lockable power jack
LCD
Backlight MTBF
15000 hrs
Brightness (cd/m2)
350
Contrast Ratio
800:1
LCD Color
16.2M
Pixel Pitch (mm)
0.1695 (H)×0.1695 (V)
Resolution
1280 x 800 (16:10)
Size
10.1”
Viewing Angle (H-V)
170º / 170º
Other Features
Audio
AMP 2W + 2W (internal speaker)
Camera
2-megapixel with low light function
Microphone
digital microphone
OSD Function
Software OSD
System Cooling
Fanless
Physical Characteristics
Color
Black C
Construction Front Panel
PC + ABS Plastic
Cutout Dimensions
236 x 150 (W x H) (mm)
Dimensions (LxWxH) (mm)
262 x 181 x 42
Mounting
Panel, Wall, Stand, Arm VESA 75mm x 75mm
Net Weight
1.06 kgs
Power
Power consumption
12V@2.3A (Intel® J1900 CPU with 2GB 1333 MHz DDR3L memory)
Power Requirement
9 V ~ 30 V
Storage
Storage
mSATA
System
Cooling method / System Fan
Fanless
CPU
Intel® Celeron® J1900 (quad core, 2.0 GHz)
Memory Max.
8GB
On-board Memory
One 204-pin 2 GB 1333MHz single-channel, 2GB DDR3L SDRAM pre-installed
Storage
mSATA
Touch
Touch Controller
EETI EXC7200
Touch Screen
Projected capacitive type
Weight
Weight
1.06/2.58 (Net/Gross, kgs)
Description

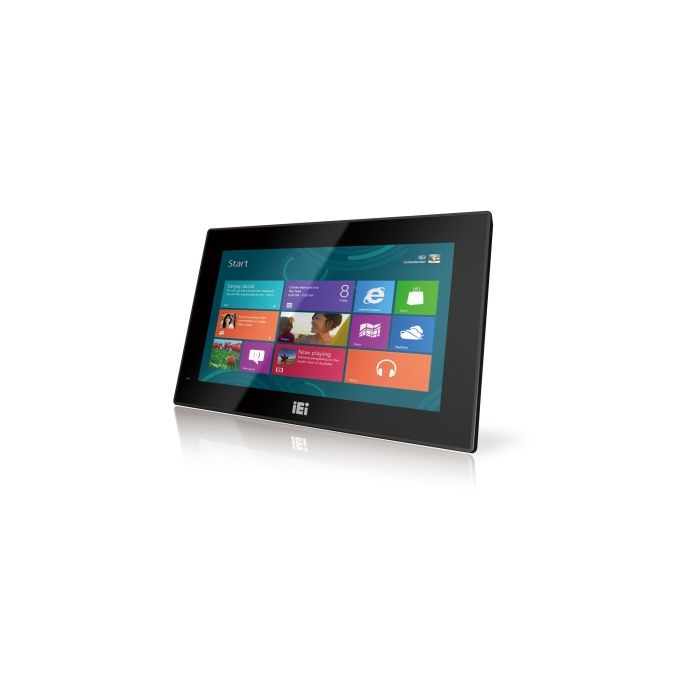

10.1” 350cd/m² 1280x800 fanless Panel PC with Intel® Celeron® J1900 quad core 2 GHz
● W10”~12.1” light industrial interactive panel PC
● Wide range DC input with lockable DC jack
● Selectable AT/ATX power mode
● Built-in speakers
● One mSATA slot
● IP64 compliant front panel
● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
