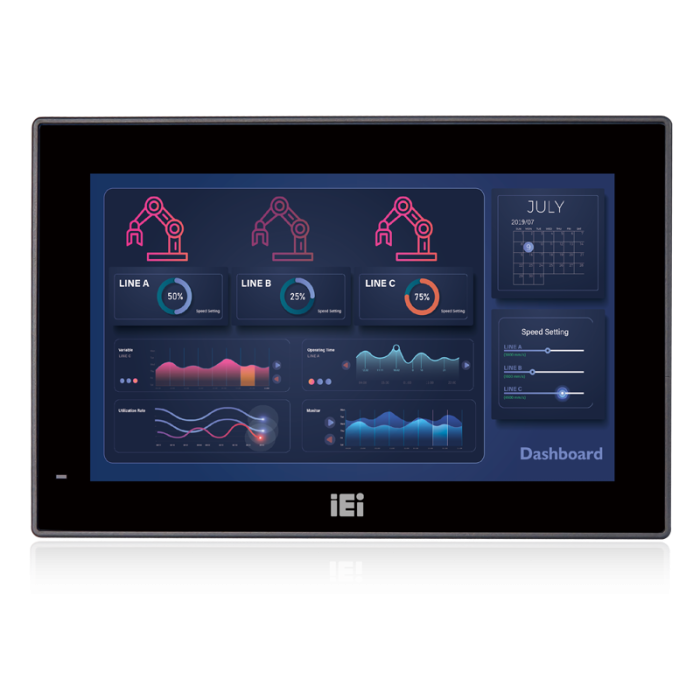

AFL3-W15A-AL 15" Celeron POE Panel PC
Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz)
Wide 15.6” 300 cd/m² 1366x768 Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, R10
Key Features:
- W15.6” light industrial interactive panel PC
- 9 V ~ 30 V wide range DC input with lockable DC jack
- Selectable AT/ATX power mode
- Built-in speakers
- Support PoE PD IEEE803.2 af/at/bt
- IP64-compliant front panel
- Touch screen with anti-UV / anti-glare coating
More Information
| brand |
IEI Integration Corp. |
| Specifications |
| Spec Item |
Description |
| Communication |
| Bluetooth |
Bluetooth V4.1 |
| Wireless |
IEEE 802.11a/b/g/n/ac |
| Environment |
| Humidity |
10% to 95% (non-condensing) |
| Operating Temperature |
-20°C ~ 50°C |
| Storage Temperature |
-20°C~60°C |
| I/O Interface |
| Audio |
AMP 2W + 2W (internal speaker) |
| Audio Codec |
ALC269 |
| Ethernet |
2x PCIe GbE by Intel® i211 controller |
| RAM |
one 204-pin 1866MHz DDR3L DIMMs support up to 8GB |
| LCD |
| Backlight MTBF |
50000 (LED backlight) |
| Brightness (cd/m2) |
300 |
| Contrast Ratio |
500:1 |
| LCD Color |
16.7M |
| Pixel Pitch (mm) |
0.252 (H) x 0.252 (V) |
| Resolution |
1366 x 768 (16:9) |
| Size |
15,6” |
| Viewing Angle (H-V) |
170° / 160° |
| Other Features |
| Camera |
2-megapixel with low light function |
| Microphone |
digital microphone |
| Power |
| Power Requirement |
9~30V , 6.67A~5A |
| System |
| Cooling method / System Fan |
Fanless |
| CPU |
Intel® Celeron® J3455 (quad core , 1.5GHz up to 2.3 GHz) |
| Storage |
1 x 2.5” SATA 3Gb/s HDD bay
1 x M.2 B+M key PCIe 2242 (USB/PCIE/SATA signal) |
| Touch |
| Touch Controller |
EETI EXC3160 |
| Touch Screen |
Projected capacitive type with USB interface (anti-UV) |
| Weight |
| Weight |
3.3kg/5.6kg |
| I/O Interface |
| I/O Interface |
1 x AT/ATX Switch |
| 1 x Clear CMOS |
| 1 x HDMI(output) |
| 2 x LAN(GbE) |
| 1 x Line out |
| 1 x Power In(9 V ~ 30 V lockable DC jack) |
| 1 x Power Switch |
| 1 x Reset Button |
| 1 x RS-232(RS-232 by DP9 (RI/5V , 1A)) |
| 1 x RS-422/485(RS-232/422/485 by RJ45) |
| 2 x USB 2.0 |
| 2 x USB 3.0 |
|
| Description |
Wide 15.6” 300 cd/m² 1366x768 Panel PC with Intel® Celeron® Processor J3455 (10W) on-board Processor, POE option, 1*4GB DDR3L, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone, R10
Key Features:
- W15.6” light industrial interactive panel PC
- 9 V ~ 30 V wide range DC input with lockable DC jack
- Selectable AT/ATX power mode
- Built-in speakers
- Support PoE PD IEEE803.2 af/at/bt
- IP64-compliant front panel
- Touch screen with anti-UV / anti-glare coating
|
