AFL3-W15A-BT 15.6" Celeron Panel PC

A$0.00

In stock

SKU

AFL3-W15A-BT

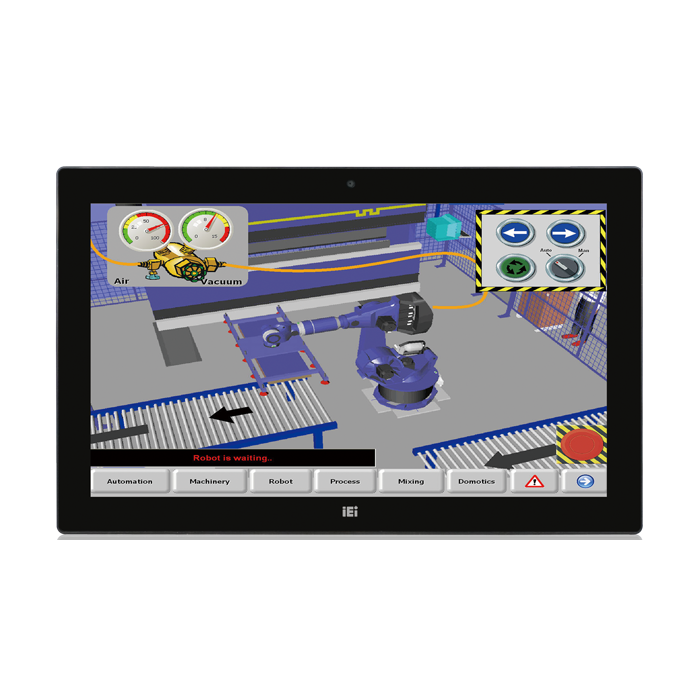

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

Wide 15.6” 400 cd/m² 1366 x 768 fanless panel PC with Intel® Celeron® J1900 quad core 2 GHz

● W15” light industrial interactive panel PC

● 9 V ~ 30 V wide range DC power input

● Selectable AT/ATX power mode

● Built-in speakers

● One mSATA slot

● IP64 compliant front panel

● IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)

brand

IEI Integration Corp.

Specifications

Spec Item	Description
Communication
Wi-Fi	IEEE 802.11a/b/g/n/ac
Dimensions
Dimensions	396 x 250 x 53
Environment
Operating Temperature	-20°C~50°C
Storage Temperature	-20°C~60°C
I/O Interface
I/O Ports and Switches	1 x RS-232 COM port (RJ-45 connector) 1 x RS-232/422/485 COM port (DB-9 connector) (RI/5V/12V) 2 x USB 2.0 2 x USB 3.0 2 x GbE LAN 1 x Power switch
RAM	One 204-pin 1333MHz single-channel DDR3L SDRAM,2GB pre-installed (system max. 8GB)
LCD
Backlight MTBF	50000 (LED backlight panel)
Brightness (cd/m2)	400
Contrast Ratio	500:1
LCD Color	16.2M
Pixel Pitch (mm)	0.240 (H) x 0.240 (V)
Resolution	1366 x 768
Size	15.6"
Viewing Angle (H-V)	170°/160°
Other Features
Camera	2-megapixel with low light function
Microphone	digital microphone
Power
Power Requirement	9~30 VDC
Storage
Storage	mSATA , 2.5” SATA 3Gb/s HDD bay
System
Chipset	N/A
CPU	Intel® Celeron® J1900 (quad core, 2 GHz)
Touch
Touch Controller	PenMount DMC9000/ EETI EXC7200
Touch Screen	5-wire resistive type with RS-232 interface / projected capacitive type with USB interface
Weight
Weight	3.3Kg
I/O Interface
I/O Interface	1 x Power Switch
	2 x LAN(GbE LAN)
	2 x USB 3.0
	1 x Audio((line-out))
	1 x AT/ATX switch
	1 x Reset Button
	1 x RS-232((RJ-45 connector))
	1 x RS-422/485(COM port(DB-9 connector) (RI/5V/12V))
	2 x USB 2.0
	1 x DC Input Jack(9-30V lockable power jack)
