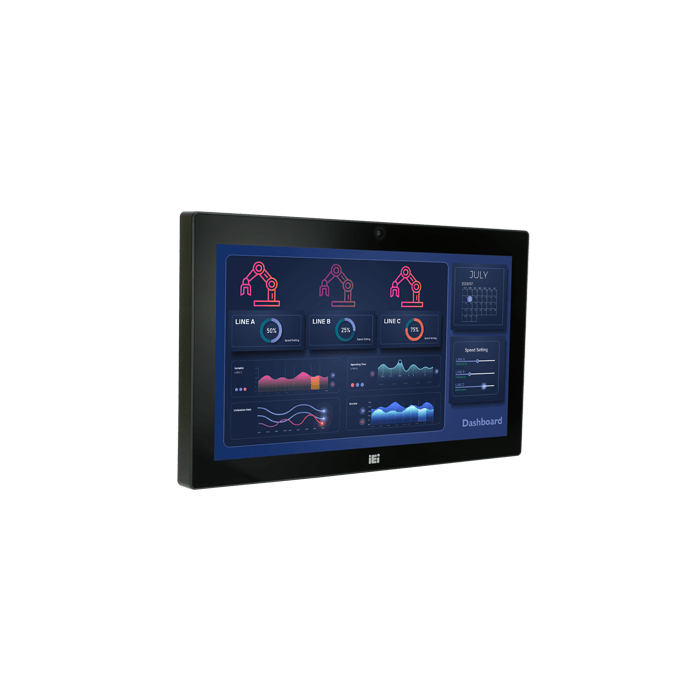

AFL3-W15C-ULT5 15.6" i5 8th Gen Panel PC

A$0.00

In stock

SKU

AFL3-W15C-ULT5

15.6" 1366x768 300cd i5 8th Gen CPU

● W15.6” light industrial interactive panel PC

● 8th Generation Intel® Core™ i5 on-board Whiskey Lake-U processor

● Selectable AT/ATX power mode

● Built-in speakers

● Support PoE PD IEEE803.2 af/at/bt (optional)

● IP64 compliant front panel

● Touch screen with anti-UV / anti-glare coating

● Support Auto Flow Control over RS-485

brand

IEI Integration Corp.

Specifications

Communication
Bluetooth	Bluetooth V4.1
Wireless	IEEE 802.11a/b/g/n/ac
Environment
Humidity	10% ~ 95% (non-condensing)
Operating Temperature	-20ºC ~ 50ºC (-4ºF ~ 122ºF)
Storage Temperature	-20°C ~ 60°C (-4ºF ~ 140ºF)
I/O Interface
Audio	AMP 3W + 3W (internal speaker)
Audio Codec	ALC888S
Ethernet	LAN1 & LAN2: Intel® I211; LAN3: Intel® I219
RAM	Two 260-pin 2400MHz dual-channel DDR4 SO-DIMMs supporting up to 32 GB
LCD
Backlight MTBF	50000 (LED backlight)
Brightness (cd/m2)	300
Contrast Ratio	500:1
LCD Color	16.7M
Resolution	1366 X 768 (16:9)
Size	15.6”
Viewing Angle (H-V)	170º / 160º
Power
Power Requirement	12V, 8A
System
Cooling method / System Fan	Fanless
CPU	Intel® Core™ i5-8365UE 1.6 GHz (up to 4.1GHz, Quad-core, 6MB cache, TDP=15W)
Storage	1 x M.2 M-key 2242/60/80 PCIe 3.0 x4 (PCIe/SATA Signal) 1 x 2.5” SATA 3Gb/s HDD bay
Touch
Touch Controller	EXC3160
Touch Screen	PCAP with USB interface (anti-UV/AG coating)
Weight
Weight	4.5kg/6.5kg
I/O Interface
I/O Interface	1 x AT/ATX Switch
	1 x Clear CMOS
	1 x HDMI
	3 x LAN(GbE)
	1 x Power In
	1 x Power Switch
	1 x Reset Button
	1 x RS-232
	1 x RS-422/485(RS-232/422/485)
	4 x USB 3.2 Gen2
