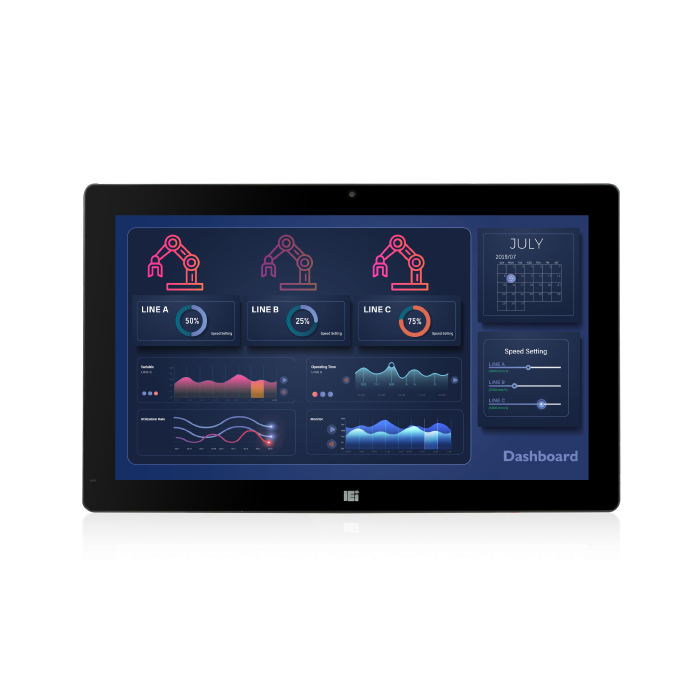

AFL3-W19A-AL 18.5" Celeron J3455 CPU
Intel® Celeron® J3455 quad core , 1.5GHz up to 2.3 GHz
Wide 18.5” 250 cd/m² 1366x768 Panel PC with with Intel® Celeron® Processor J3455 (10W) on-board Processor (Apollo lake), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
- 18.5” light industrial interactive panel PC
- Intel Apollo lake processor
- Wide range DC input with lockable DC jack
- Selectable AT/ATX power mode
- Built-in speakers
- One mSATA slot
- One HDMI output
- IP64 compliant front panel
- IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
More Information
| brand |
IEI Integration Corp. |
| Specifications |
| Spec Item |
Description |
| Communication |
| Bluetooth |
Bluetooth V4.0 |
| Wireless |
IEEE 802.11a/b/g/n/ac |
| Environment |
| Humidity |
10% to 95% (non-condensing) |
| Operating Temperature |
-15ºC ~ 50ºC |
| Storage Temperature |
-20°C~60°C |
| I/O Interface |
| Audio |
AMP 3W + 3W (internal speaker) |
| Audio Codec |
ALC269 |
| Ethernet |
2x PCIe GbE by Intel® i211 controller |
| RAM |
One 204-pin 1600/1333 MHz single-channel DDR3L
SO-DIMM, 4GB pre-installed (system max. 8GB) |
| LCD |
| Backlight MTBF |
30000 (LED backlight) |
| Brightness (cd/m2) |
250 |
| Contrast Ratio |
1000:1 |
| LCD Color |
262K |
| Pixel Pitch (mm) |
0.240 (H) x 0.240 (V) |
| Resolution |
1366 x 768 (16:9) |
| Size |
18.5” |
| Viewing Angle (H-V) |
170º / 160º |
| Other Features |
| Camera |
2-megapixel with low light function |
| Microphone |
digital microphone |
| Power |
| Power consumption |
12V@3.2A |
| System |
| CPU |
Intel® Celeron® J3455 ( quad core , 1.5GHz up to 2.3 GHz) |
| Storage |
(1) 1 x 2.5” SATA 3Gb/s HDD bay
(2) 1 x mSATA slot |
| Touch |
| Touch Controller |
EETI EXC3180 |
| Touch Screen |
Projected capacitive type with USB interface (anti-UV) |
| Weight |
| Weight |
6.3/9 |
| I/O Interface |
| I/O Interface |
1 x AT/ATX switch |
| 1 x HDMI |
| 2 x LAN(GbE) |
| 1 x Line out |
| 1 x Power In |
| 1 x Power Switch |
| 1 x Reset Button |
| 1 x RS-232(RJ45 (RI/5V/12V)) |
| 1 x RS-422/485(RJ45 (RI/5V/12V)) |
| 2 x USB 2.0 |
| 2 x USB 3.0 |
|
| Description |
Wide 18.5” 250 cd/m² 1366x768 Panel PC with with Intel® Celeron® Processor J3455 (10W) on-board Processor (Apollo lake), 1*4GB DDR4 RAM, 802.11a/b/g/n/ac WiFi module, PCAP touch, 2M camera, microphone,R10
- 18.5” light industrial interactive panel PC
- Intel Apollo lake processor
- Wide range DC input with lockable DC jack
- Selectable AT/ATX power mode
- Built-in speakers
- One mSATA slot
- One HDMI output
- IP64 compliant front panel
- IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
|
