1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
RAM
Two 260-pin DDR4 SO-DIMMs (system max.32GB)
LCD
Backlight MTBF
30,000 (LED backlight panel)
Brightness (cd/m2)
250
Contrast Ratio
1000:1
LCD Color
262K
Pixel Pitch (mm)
0.240 (H) x 0.240 (V)
Resolution
1366 x 768 (16:9)
Size
18.5""
Viewing Angle (H-V)
170º/160º
Other Features
Camera
2-megapixel with low light function
Microphone
digital microphone
OSD Function
Software OSD
System Cooling
Fanless
Physical Characteristics
Color
Black C
Construction Front Panel
PC + ABS Plastic
Cutout Dimensions
443 x 261 (W x H) (mm)
Dimensions (LxWxH) (mm)
470 x 290 x 70
Mounting
Panel, Wall, Rack, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Net Weight
7.3Kg
Power
Power consumption
12V@7.1A
Power Requirement
9 V ~ 30 VDC
System
Cooling method / System Fan
Fanless
CPU
Intel® Core™ i5 and Celeron® ULT Processor
Storage
1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
Touch
Touch Controller
EETI EXC3180
Touch Screen
Projected capacitive type with USB interface
Weight
Weight
7.3/10Kg
I/O Interface
I/O Interface
1 x HDMI(output)
4 x USB 3.0
1 x Power In(9-30V lockable power jack)
1 x RS-232(DB-9 (RI/5V/12V))
2 x LAN(Gbe)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x RS-422/485(DB-9 (RI/5V/12V))
Description
Intel® 14nm 6th Generation Mobile Celeron® 3955U (15W) on-board Processor or Intel® 14nm 6th Generation Mobile Core™ i5-6300U (15W) on-board Processor

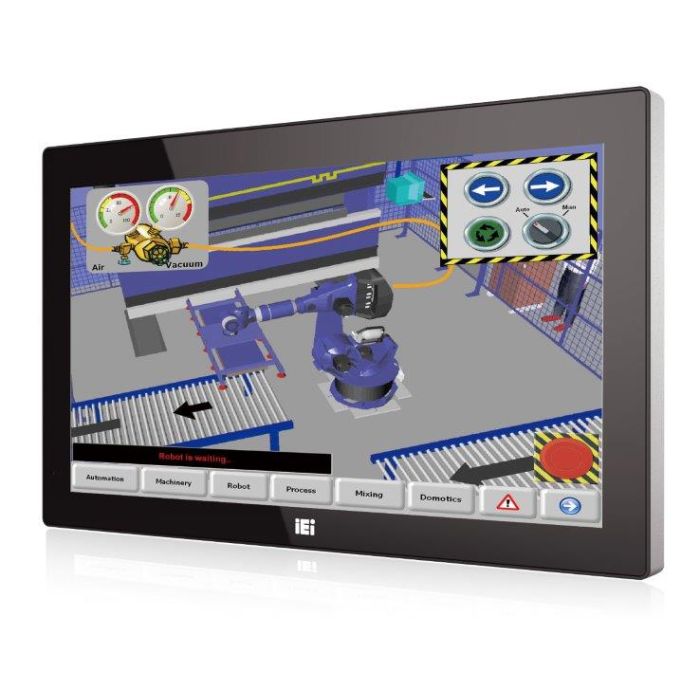

● 18.5” light industrial interactive panel PC
● Wide range DC power input
● Selectable AT/ATX power mode
● Built-in speakers
● One mSATA slot
● IP64 compliant front panel
● IEI One Key Recovery solution allows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
