1 x 2.5” SATA 3Gb/s HDD bay 1 x M.2 M key PCIe storage (2280 or 22110) 1 x mSATA slot
Communication
Bluetooth
v4.0 (M.2 slot)
Wi-Fi
IEEE 802.11a/b/g/n/ac
I/O Interface
Ethernet
2 x Intel® I211-AT PCIe GbE controller
Audio
AMP 3W + 3W (internal speaker)
Audio Codec
ALC892
RAM
Two 260-pin DDR4 SO-DIMMs (system max.32GB)
I/O Ports and Switches
1 x RS-232 by DB-9 (RI/5V/12V) 1 x RS-232/422/485 by DB-9 (RI/5V/12V) 2 x GbE LAN 4 x USB 3.0 1 x HDMI output 1 x Power switch 1 x Reset button 1 x AT/ATX switch 1 x 9-30V lockable power jack
Environment
Operating Temperature
-20°C~50°C
Humidity
10% to 95% (non-condensing)
Storage Temperature
-20°C~60°C
IP Level
IP 64 compliant front panel
Physical Characteristics
Color
Black C
Mounting
Panel, Wall, Stand and Arm VESA 75mm x 75mm / 100mm x 100mm
Dimensions (LxWxH) (mm)
528 x 336 x 68
Construction Front Panel
PC + ABS Plastic
Weight
Weight
8.27/11.27
LCD
Size
21.5""
Resolution
1920 x 1080
Brightness (cd/m2)
250
Contrast Ratio
1000:1
LCD Color
16.7M
Pixel Pitch (mm)
248.25 (H) × 248.25 (V)
Viewing Angle (H-V)
170°(H) / 160°(V)
Backlight MTBF
30,000 (LED backlight panel)
Touch
Touch Screen
Projected capacitive type with USB interface
Touch Controller
EETI EXC3180
Other Features
Camera
2-megapixel with low light function
OSD Function
Software OSD
Microphone
digital microphone
I/O Interface
I/O Interface
1 x RS-422/485(DB-9 (RI/5V/12V))
4 x USB 3.0
1 x Power In(DC jack)
2 x LAN(GbE)
1 x Reset Button
1 x Power Switch
1 x AT/ATX switch
1 x RS-232(DB-9 (RI/5V/12V))
1 x HDMI
Description

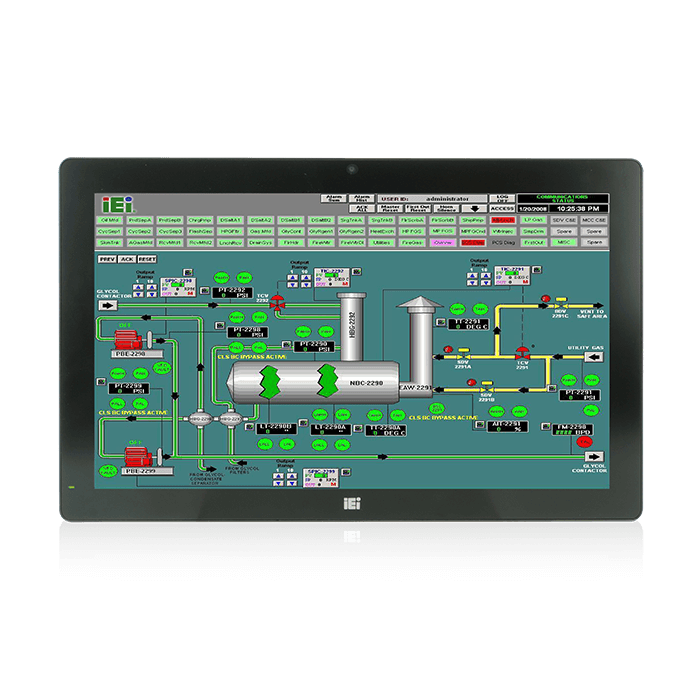

W21.5” light industrial interactive panel PC
9 V ~ 30 V wide range DC power input
Selectable AT/ATX power mode
Built-in speakers
One mSATA slot
IP64 compliant front panel
IEI One Key Recovery solution alllows you to create rapid OS backup and recovery (suggested with over 4GB storage capacity)
