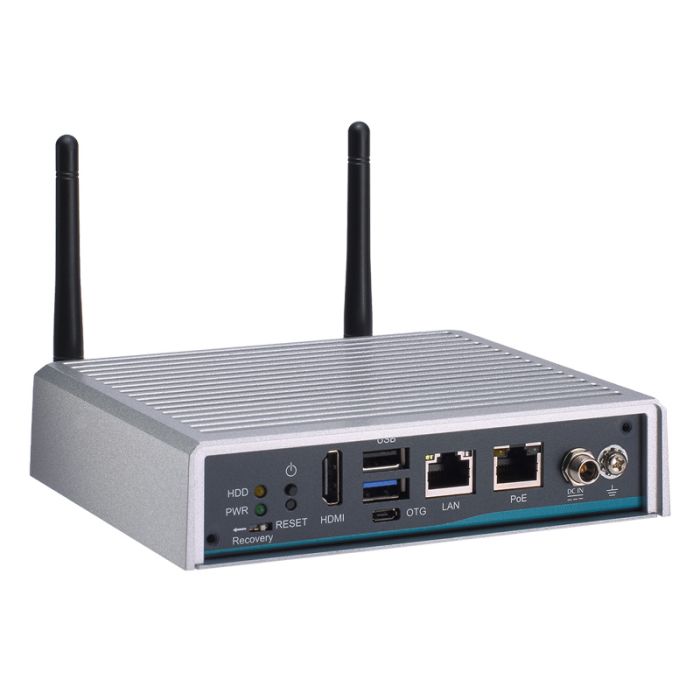

The AIE100-T2NX is a fanless edge AI system with PoE PSE support and HDMI input for added flexibility. The NVIDIA Jetson TX2 NX module, which integrates the dual-core NVIDIA Denver 2 64-bit CPU, quad-core Arm Cortex-A57 MPCore processor complex, and NVIDIA Pascal architecture GPU with 256 CUDA cores, powers the high-performance AIE100-T2NX. Smart manufacturing, smart agriculture, smart farming, smart city, and other intelligent edge AI applications benefit from the AIE100-T2NX.
Key Features:
NVIDIA Jetson TX2 NX with Pascal architecture GPU with 256 CUDA cores
High AI computing performance for GPU-accelerated processing
Dual-Core NVIDIA Denver 2 64-Bit CPU and Quad-Core Arm Cortex-A57 MPCore processor
GPU
256-core NVIDIA Pascal™ GPU
Chipset
SoC integrated
AI Accelerator
N/A
System Memory
4GB 128-bit LPDDR4 51.2GB/s
COM
N/A
USB
1 x USB 3.1 Gen1, 1 x USB 2.0
1 x Micro USB
Ethernet
1 x 10/100/1000 Mbps Ethernet (Via Jetson™ TX2 NX)
1 x 10/100/1000 Mbps PoE (Intel® i210-IT; max. up to 15W)
Display
1 x HDMI 2.0 with 4K2K supported
Digital I/O
N/A
Audio
N/A
Storage
Onboard 16GB eMMC (via Jetson TX2 NX)
1 x M.2 Key M 2280 with PCIe x4 NVMe SSD slot
1 x Micro SD slot
Expansion
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x SIM slot
Others
1 x Recovery switch
1 x Reset button
1 x Power button
1 x 12 VDC power input connector
2 x SMA-type antenna connector
Power Supply
12 VDC screw type
Watchdog Timer
Built-in TX2 NX
Construction
Aluminium extrusion and heavy-duty steel, IP40
Operating Temperature
-30°C to +60°C (-22°F to +140°F)
Relative Humidity
10% - 95%, non-condensing
Vibration
3 Grms with M.2 (5 to 500Hz, X, Y, Z directions)
Dimensions (W x D x H)
148.6 mm (5.85\") (W) x 129.8 mm (5.11\") (D) x
34.6 mm (1.36\") (H)
Weight (net/gross)
1 kg (2.20lb)/1.6 kg (3.52lb)
Certifications
CE, FCC Class A
EOS Support
Linux Ubuntu 18.04
Mounting
Wall mount kit
DIN-rail kit
VESA mount kit
