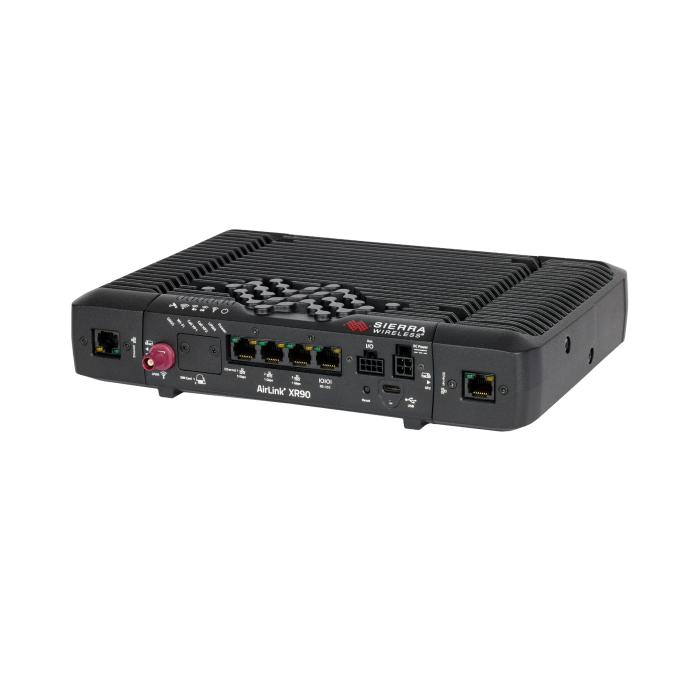

AirLink® XR90 5G High-Performance Multi-Network Vehicle Router
5G High-Performance Multi-Network Vehicle Router for Transit, Rail and First Responder Fleets.
The supercharged AirLink XR90 is purpose-built for public safety and transit with
single/dual 5G cellular radios and dual independent 4x4 MIMO Wi-Fi 6. It supports complete device-to-cloud security and reduces your total cost of ownership with ALMS Out-of-Band management via built in LPWA network delivering zero touch configuration, reset to factory over the air and remote support regardless of the primary WAN connections. Utilising a cartridge-based design, enables long-term expandability and upgradability.
For detailed user configuration details pls sign up for "The Source" and access the Airlink OS page: https://source.sierrawireless.com/airlinkos/XR90/2.0/
| brand | Semtech formerly Sierra Wireless |
|---|---|
| Specifications | Cellular Connectivity Supported
5G
Up to 4.14 Gbps DL/660 Mbps UL
4G LTE-A Pro CAT20
Up to 2 Gbps DL/210 Mbps UL Optional dual 5G cellular LPWA exclusively for ALMS Out-of-Band Management Navigation
All
Assisted GNSS with inertial dead reckoning and integrated vehicle telemetry via ODBII/CAN
Wi-Fi
All
Dual independent 4x4 Wi-Fi 6 AP/STA up to 2.4Gbps Support for 128 clients. WPA2/3 Enterprise. High output power 21 dBm (per chain) Host Interfaces
All
All WAN/LAN interfaces use Sierra Cognitive Wireless and Data Path Acceleration Architecture Single 5G: 4x RJ-45 Ethernet ports (1x 5Gbps, 3x 1Gbps) Dual 5G: 5x RJ-45 Ethernet ports (1x 5Gbps, 4x 1Gbps) Dual SIM Slots. Dual RS-232 serial on RJ-45 Aux Port (GPIO/CAN). USB 3.2 type-C port. Bluetooth 5.1 (future support) Security
All
All Sierra Wireless security features including secure boot and secure firmware update. AAA: 802.1x/Radius authentication Stateful firewall with port forwarding and DMZ WPA2/3 Personal/Enterprise WLAN Encryption and FIPS 140-2 Construction
All
Aluminum die cast housing rated to IP-64 and Mil-STD 810G
Industry Certifications
All
Safety: IECEE Certification Bodies Scheme (CB Scheme), UL 60950 Vehicle Usage: E-Mark (72/245/EEC, 2009/19/EC), ISO7637-2, SAE J1455 (Shock & Vibration) Environmental: RoHS2, REACH, WEEE Rail Usage: EN50155 (Rolling Stock) Dimensions
All
Single 5G: 220mm x 220mm x 53mm (8.66in x 8.66in x 2.08in) Dual 5G: 268mm x 220mm x 53mm (10.55in x 8.66in x 2.08in) |
| Description | The supercharged AirLink XR90 is purpose-built for public safety and transit with For detailed user configuration details pls sign up for "The Source" and access the Airlink OS page: https://source.sierrawireless.com/airlinkos/XR90/2.0/ |
