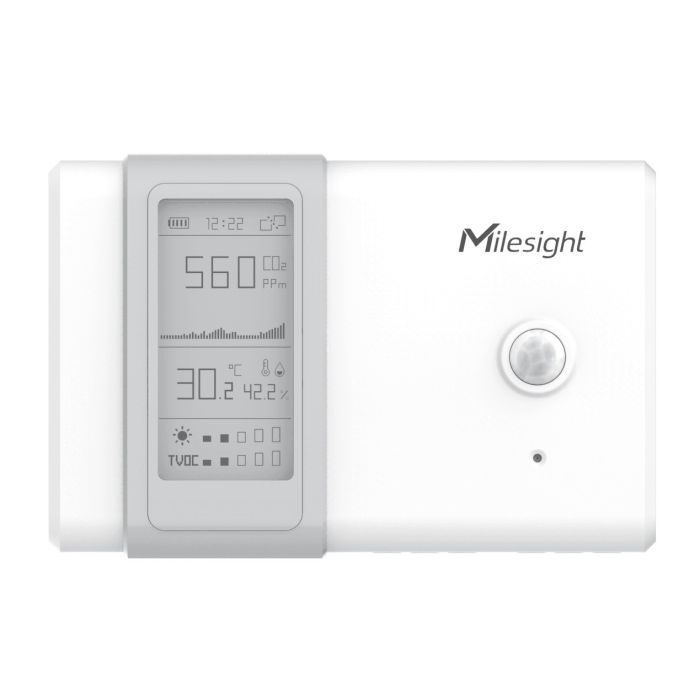

AM107-915M LoRaWAN Ambience Monitoring Sensor

A$0.00

In stock

SKU

AM107-915M

AM107-915M Ambience Monitoring Sensor for measurement of temperature, humidity, light, CO2
concentration, TVOC, barometric pressure and motion

Details

AM100 series is a compact indoor ambience monitoring sensor for the measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure and motion. These data will be shown on the E-ink screen in real-time, which allows for quantifying the indoor environment and comfort. AM100 series is widely used for offices, stores, classrooms, hospitals, etc.

Apart from screen display, sensor data is also transmitted using LoRaWAN® technology. With this low power consumption technology, the AM100 series can work for one year with 2 AA batteries. Combining with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually.

Features:

Integrated with multiple sensors like humidity, temperature, CO2, light, barometric pressure, etc.
Visual display via E-ink screen
Standard AA batteries
One year of work without replacing batteries
Equipped with NFC and type-C port for easy configuration
Compliant with standard LoRaWAN® gateways and network servers
Quick and easy management with
Milesight IoT Cloud solution

More Information

More Information
Specifications	Wireless Transmission Technology: LoRaWAN® Frequency: CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 Tx Power: 16dBm(868)/20dBm(915)/19dBm(470) Sensitivity: -137dBm @300bps Mode: OTAA/ABP Class A Sensors Temperature Range: -20°C to + 70°C Accuracy: 0°C to + 70°C (+/- 0.3°C), -20°C to 0°C (+/- 0.6°C) Resolution: 0.1°C Humidity Range: 0% to 100% RH Accuracy: 10% to 90% RH (+/- 3%), below 10% and above 90% RH (+/- 5%) Resolution: 0.5% RH PIR Detection Area: 94 ° Horizontal, 82 ° Vertical Detection Distance: 5 m Output Range: 0-65535 Light Range: 60000 lux (Visible + IR, IR) Accuracy: ±30% Carbon Dioxide (CO2) Range: 400 - 5000 ppm Accuracy: ±30 ppm or ±3 % of reading Resolution:1 ppm TVOC Range: 60000 ppb Accuracy: ±15 % Resolution: 1 ppb Long-term Stability: 1.3 % accuracy drift per year Barometric Pressure Range: 300 - 1100 hPa (-40°C - 85°C) Accuracy: ±1 hPa Resolution: 0.1 hPa Display & Configuration Display 2.13-inch Black & White E-Ink Screen Configuration 1. Mobile APP via NFC 2. PC software via NFC or USB Type-C port Physical Characteristics Power Supply: 2 × AA Alkaline batteries or type-C port power supply Battery Life* (10 min interval) 0.9 years (SF7) 0.7 years (SF10) 1.1 years（VOC disabled，SF7） 0.9 years（VOC disabled，SF10） Operating Temperature: 0°C to +45°C Relative Humidity: 0% to 100% (non-condensing) Ingress Protection: IP30 Dimension: 105 × 70.4 × 21.2 mm (4.1 × 2.8 × 0.8 in) Installation: Wall Mounting Approvals Regulatory CE, FCC, LoRaWAN® Certified EMC EN 55032, EN 55035 EMS IEC 61000-4-2 Level 3 IEC 61000-4-3 Level 2 IEC 61000-4-4 Level 4 IEC 61000-4-5 Level 3 IEC 61000-4-6 Level 3 IEC 61000-4-8 Level 4 Radio Frequency: FCC Part 15B, FCC Part 15.247, EN 300 330,EN 301 489-1/3, EN 300 220-1/2 Safety: EN62368-1 * Tested under laboratory conditions and for guideline purposes only.
Description	AM100 series is a compact indoor ambience monitoring sensor for the measurement of temperature, humidity, light, CO2 concentration, TVOC, barometric pressure and motion. These data will be shown on the E-ink screen in real-time, which allows for quantifying the indoor environment and comfort. AM100 series is widely used for offices, stores, classrooms, hospitals, etc. Apart from screen display, sensor data is also transmitted using LoRaWAN® technology. With this low power consumption technology, the AM100 series can work for one year with 2 AA batteries. Combining with the Milesight LoRaWAN® gateway and Milesight IoT Cloud solution, users can manage all sensor data remotely and visually. Features: Integrated with multiple sensors like humidity, temperature, CO2, light, barometric pressure, etc. Visual display via E-ink screen Standard AA batteries One year of work without replacing batteries Equipped with NFC and type-C port for easy configuration Compliant with standard LoRaWAN® gateways and network servers Quick and easy management with Milesight IoT Cloud solution

Reviews

Write Your Own Review

Downloads

Datasheet

User Guide
