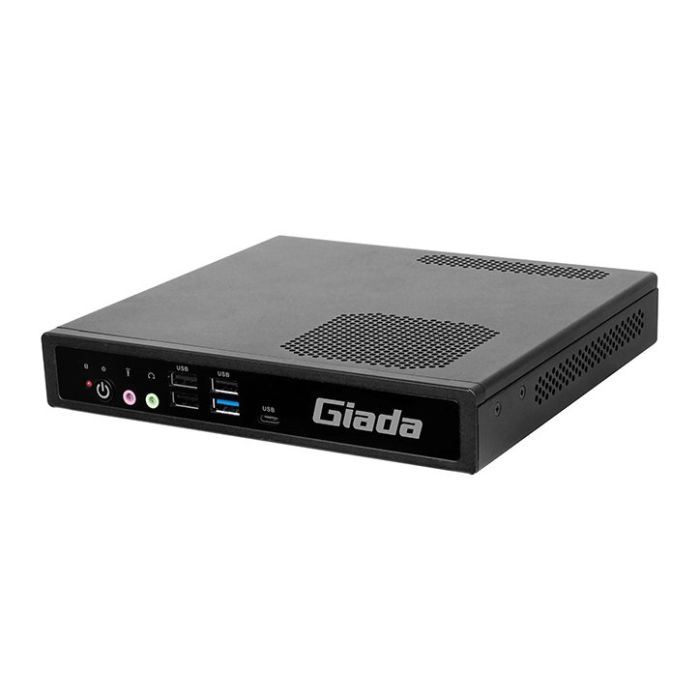

BQ611 High-end Fat-Client with Desktop CPU
Rocket Lake-S High-end Fat Client with Desktop CPU
Features
1 x DP, 1 x HDMI, 1 x VGA, Supporting 4K Display 2 x DDR4-3200MHz Memory, Up to 32GB 1 x M-Key M.2 (2242/2280) for SSD, 1 x 2.5" SATA 8 x USB Type-A, 1 x USB Type-C Dual LAN 1 x E-Key M.2 (2230) for Wi-Fi/BT, Supporting Wi-Fi6 (CNVi)
More Information
brand
Giada Technology Inc.
Specifications
BQ611-E0000
Processor CPU
Intel® LGA1200 Socket 10th/11th Gen. Processor
(TDP≤65W)
BIOS
AMI Source Code
Chipset
H510 / B560
Memory Type
DDR4-3200MHz
Socket
2 x SO-DIMM
Max Size
32GB
Graphics GPU
Intel® UHD Graphics (by CPU)
Graphic Engine
Direct X12, OpenGL 4.5, OpenCL 2.2
HDMI
1 x HDMI (Max.3840 x 2160@60Hz)
DP
1 x DP(Max.4096 x 2304@60Hz)
VGA
1 x VGA (Max.2048 x 1536@60Hz)
Network Controller
2 x Realtek RTL8111H Gigabit Ethernet
(Optional: 1 x Realtek RTL8111H Gigabit Ethernet)
Interface
2 x RJ45 (Optional: 1 x RJ45)
I/O USB Type-A
2 x USB3.2 Gen1, 6 x USB2.0 (H510)
2 x USB3.2 Gen2, 6 x USB2.0 (B560)
USB Type-C
1 x USB Type-C3.2 Gen1 (H510)
1 x SUB Type-C3.2 Gen2 (B560)
Serial Port
1 x RS232
Rear Audio
1 x MIC-IN, 1 x LINE-IN,
Wireless
1 x E-Key M.2(2230) for Wi-Fi/BT
TPM
Infineon TPM2.0 (Optional)
Storage Socket 1
1 x M-Key (2242/2280) for SSD
Socket 2
1 x 2.5" SATA (7+15pin)
JAHC Tech Watchdog Timer
0~255 Second Time Out Support
Auto Power On
Power Activated Automatically Start
RTC
Set Up Independently Every day, A Week as a Cycle
Remote Control
Wake on LAN
Operation System Windows
Windows 10 IoT Core
Linux
Supported
Power Power Type
DC-IN
Input Voltage
19V/6.32A
Mechanical Dimensions (W × D × H)
200mm x 185mm x 34mm
(7.46" x 5.83" x 1.02")
Fanless
No
Construction
Metal
Mounting(Optional)
VESA Mounting Kit (JZ200)
Colour
Black
Environment Operating Temperature
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Relative Humidity
95%@40℃ (non-condensing)
Certification Certification
CE, FCC Class B, CCC
License The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.
Description
Features
1 x DP, 1 x HDMI, 1 x VGA, Supporting 4K Display 2 x DDR4-3200MHz Memory, Up to 32GB 1 x M-Key M.2 (2242/2280) for SSD, 1 x 2.5" SATA 8 x USB Type-A, 1 x USB Type-C Dual LAN 1 x E-Key M.2 (2230) for Wi-Fi/BT, Supporting Wi-Fi6 (CNVi)
