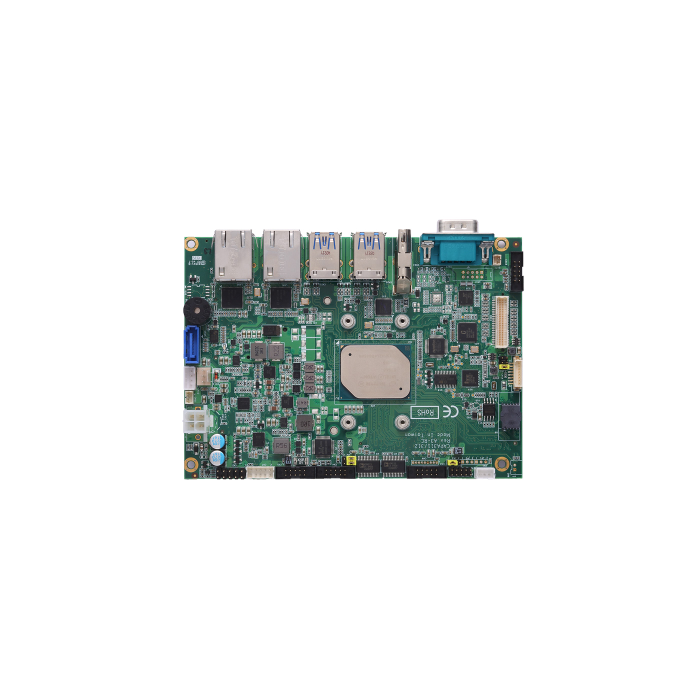

CAPA311 3.5" Embedded SBC Atom x5-E3940, HDMI, LVDS, 2 GbE LAN
3.5" Embedded SBC with Intel® Atom® x5-E3940 Processor, HDMI, LVDS, 2 GbE LAN and Audio
Intel® Atom® x5-E3940 processor
1 DDR3L SO-DIMM for up to 8GB of memory
2 USB 2.0 and 4 USB 3.0
2 full-size PCI Express Mini Card slots
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU | - Intel® Atom® x5-E3940 processor onboard
| | Chipset | | | System Memory | - 1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
| | BIOS | | | COM | - 2 x RS-232/422/485
- 2 x RS-232
| | USB | | | Ethernet | - 2 x 10/100/1000 Mbps Ethernet with Intel® i211-AT
| | Display | - 1 x HDMI
- 1 x LVDS
- 1 x VGA (optional)
- 1 x eDP (optional)
| | Digital I/O | - 8-channel in/out programmable
| | Audio | | | Storage | | | Expansion | - 1 x Full-size PCI Express Mini Card slot with mSATA supported
- 1 x Full-size PCI Express Mini Card slot
- 1 x SIM slot
| | Others | - ST ST33TPM12LPC with TPM 1.2 compliant
- SMBus; compatible with I2C
| | Battery | | | Power Input | - 2 x 2-pin connector
- +12V DC-in only
- AT Auto Power On function supported
| | Power Requirements | - Intel® Atom® x5-E3940 @1.6GHz 8GB DDR3L, max. RMS: +12V @1.1A
| | Watchdog Timer | - 65536 levels, 1 to 65535 sec.
| | Hardware Monitoring | | | Operating Temperature | - -40°C to +80°C (-40°F to +185°F)
| | Relative Humidity | - 10% - 95% relative humidity, non-condensing
| | Dimensions | | | Board Thickness | | | Certifications | | |
| Description |
Intel® Atom® x5-E3940 processor 1 DDR3L SO-DIMM for up to 8GB of memory 2 USB 2.0 and 4 USB 3.0 2 full-size PCI Express Mini Card slots |
