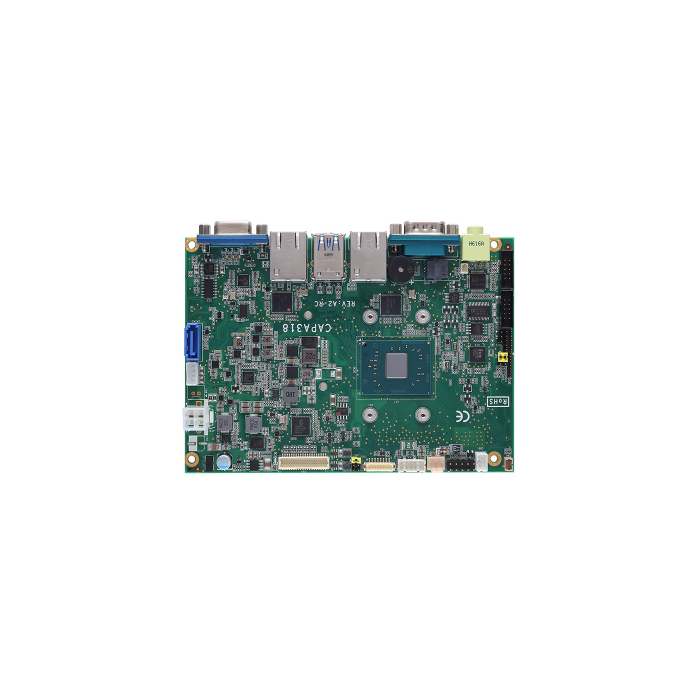

CAPA318 3.5" Embedded SBC Pentium/Celeron, VGA/LVDS, Dual LAN
3.5" Embedded SBC with Intel® Pentium® Processor N4200 & Celeron® Processor N3350, VGA/LVDS, Dual LANs and Audio
Intel® Pentium® processor N4200/Celeron® processor N3350
1 DDR3L SO-DIMM, up to 8GB
2 USB 2.0 and 2 USB 3.0 ports
PCI Express Mini Card with mSATA supported
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- Intel® Pentium® processor N4200/Celeron® processor N3350 onboard
|
| Chipset |
|
| System Memory |
- 1 x 204-pin SO-DIMM DDR3L-1867, up to 8GB
|
| BIOS |
|
| COM |
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211AT)
|
| Display |
|
| Digital I/O |
- 8 channels IN/OUT programmed
|
| Audio |
|
| Storage |
|
| Expansion |
- 1 x Full-size PCI Express Mini Card with mSATA
- 1 x Full-size PCI Express Mini Card
- 1 x SIM slot
|
| Others |
- I2C Bus for advanced monitoring/control
|
| Battery |
|
| Power Input |
- 2 x 2-pin connector
- +12V DC-in only
- AT Auto Power On function supported
|
| Power Requirements |
- Intel® Pentium® N4200 @ 1.1 GHz, 8GB DDR3L
Max. RMS. +12V @ 1.5A
- Intel® Celeron® N3350 @ 1.1 GHz, 8GB DDR3L
Max. RMS. +12V @ 1.3A
|
| Watchdog Timer |
- 65535 levels, 1~65535 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- -20°C ~ +70°C (-4°F ~ 158°F)
|
| Relative Humidity |
- 10% ~ 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Intel® Pentium® processor N4200/Celeron® processor N3350
1 DDR3L SO-DIMM, up to 8GB
2 USB 2.0 and 2 USB 3.0 ports
PCI Express Mini Card with mSATA supported
|
