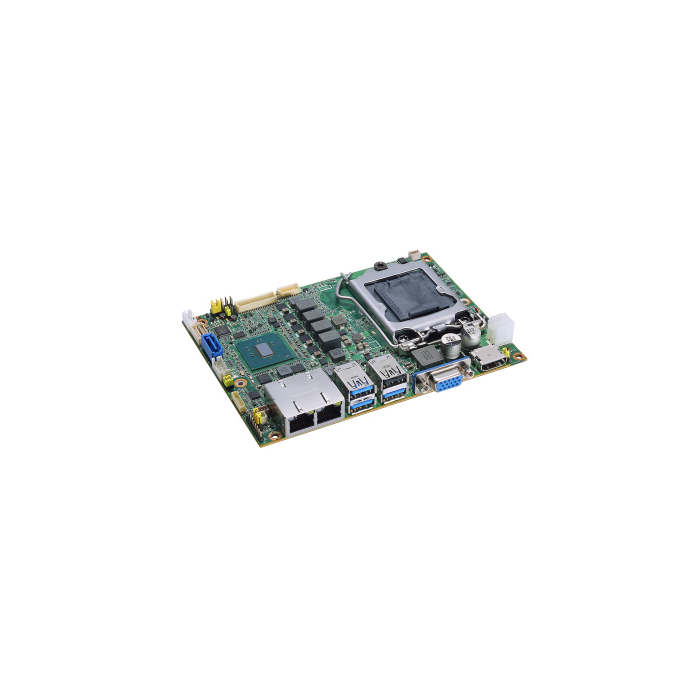

CAPA500 3.5" Embedded SBC 7th/6th Gen i7/i5/i3 Processor

A$0.00

In stock

SKU

CAPA500

3.5" Embedded SBC with LGA1151 Socket for 7th/6th Gen Intel® Core™ i7/i5/i3 Processor, LVDS, VGA, HDMI, 2 GbE LANs and Audio

LGA1151 7th/6th gen Intel® Core™ i7/i5/i3 processor (Kaby Lake/Skylake)

Intel® H110 chipset (Q170 optional)

1 DDR4 SO-DIMM for up to 16GB of memory

3 USB 2.0 and 3 USB 3.0

Intel® AMT 11 supported (optional)

Dual view for H110 chipset; triple view for Q170 chipset

Brand

Axiomtek

Specifications

CPU	LGA1151 socket for 7th/6th gen Intel® Core™ i7/i5/i3 processor (TDP=35W only)
Chipset	Intel® H110 Intel® Q170 (optional)
System Memory	1 x 260-pin DDR4-2400 SO-DIMM, up to 16GB
BIOS	AMI
COM	1 x RS-232/422/485; with +5V/+12V powered
USB	3 x USB 3.0 3 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps (Intel® i211-AT) 1 x 10/100/1000 Mbps (Intel® i219-LM)
Display	1 x VGA 1 x LVDS 1 x HDMI
Digital I/O	8-channel in/out programmable
Audio	MIC-in/Line-in/Line-out
Storage	1 x SATA-600
Expansion	1 x Full-size PCI Express Mini Card slot with mSATA supported 1 x USB, 1 x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector (optional)
Others	Intel® AMT 11 (optional) SMBus
Battery	Lithium 3V/220mAH
Power Input	2 x 2-pin connector +12V DC-in only AT Auto Power On function supported
Power Requirements	TBD
Watchdog Timer	255 levels, 1 to 255 sec.
Hardware Monitoring	Yes
Operating Temperature	-20°C to +60°C (-4°F to +140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Dimensions	146 x 104 mm
Board Thickness	1.6 mm
Certifications	CE
