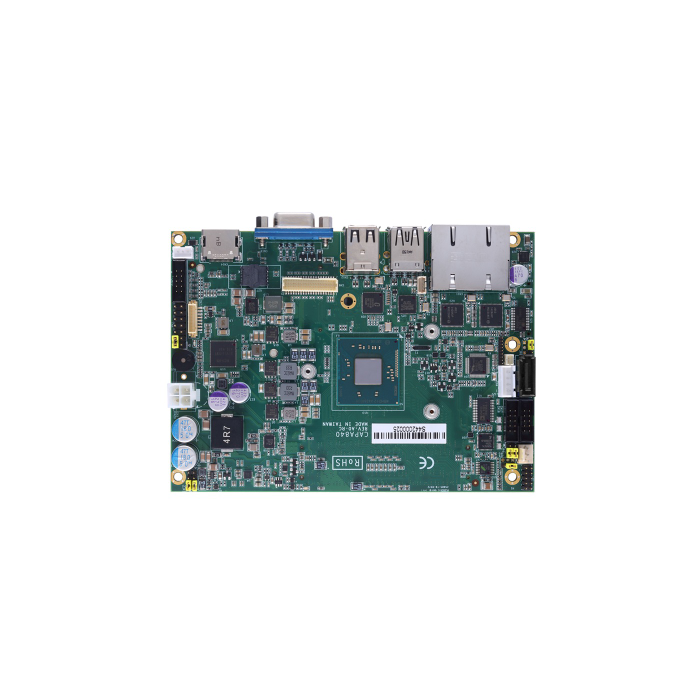

CAPA840 Atom E3845/E3827 CPU
3.5" Embedded SBC with Intel® Atom® Processor E3845/E3827, LVDS/VGA/HDMI, Dual LANs, Audio and ZIO
Intel® Atom® processor E3845/E3827
2 DDR3L-1066/1333 SO-DIMM, up to 8GB
4 USB 2.0 ports and 1 USB 3.0 port
2 COM ports
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- Intel® Atom® processor E3845 quad-core, E3827 dual-core onboard
|
| Chipset |
|
| System Memory |
- 2 x 204-pin SO-DIMM DDR3L-1066/1333, up to 8 GB
|
| BIOS |
|
| COM |
- 1 x RS-232/422/485 with +5V/+12V powered
- 1 x RS-232
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211AT)
|
| Display |
- 1 x VGA
- 1 x LVDS
- 1 x HDMI
|
| Digital I/O |
- 8 channels IN/OUT programmed
|
| Audio |
|
| Storage |
|
| Expansion |
- 1 x Full-SizePCI Express Mini Card
- 1 x Full-Size PCI Express Mini Card (USB only)
- 1 x USB, 1x PCIe x1, 1 x LPC, 1 x SMBus through a ZIO connector
|
| Others |
|
| Battery |
|
| Power Input |
- 2 x 2-pin connector
- +10V ~ 24V DC-in
- AT Auto Power On function supported
|
| Power Requirements |
- Intel® Atom® E3845 @ 1.91 GHz, 4 GB DDR3L
Max. RMS: +24V @ 0.68A
- Intel® Atom® E3827 @ 1.75 GHz, 4 GB DDR3L
Max. RMS: +24V @ 0.6A
|
| Watchdog Timer |
|
| Hardware Monitoring |
|
| Operating Temperature |
- -20°C ~ +70°C (-4°F ~ +158°F)
|
| Relative Humidity |
- 10% ~ 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Intel® Atom® processor E3845/E3827
2 DDR3L-1066/1333 SO-DIMM, up to 8GB
4 USB 2.0 ports and 1 USB 3.0 port
2 COM ports
|
