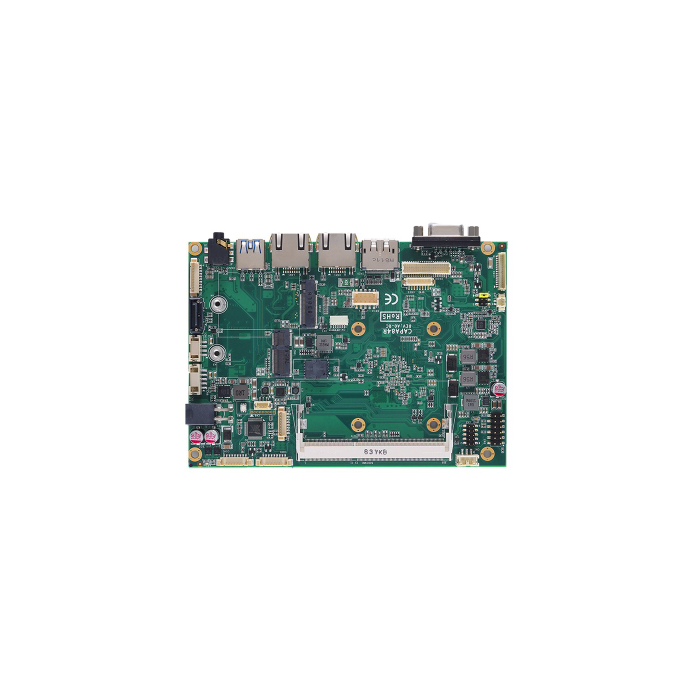

CAPA84R 3.5” Embedded SBC Celeron J1900/J1800, DP, LVDS, VGA, 3 GbE LAN
3.5” Embedded SBC with Intel® Celeron® Processor J1900/J1800, DisplayPort, LVDS, VGA, 3 GbE LAN and Audio
Intel® Celeron® processor J1900/J1800
1 DDR3L SO-DIMM for up to 8GB of memory
2 USB 2.0 and 1 USB 3.0
3 GbE LAN
M.2 Key E
M.2 Key B
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- Intel® Celeron® processor J1900/J1800 onboard
|
| Chipset |
|
| System Memory |
- 1 x 204-pin DDR3L-1333 SO-DIMM, up to 8GB
|
| BIOS |
|
| COM |
- 1 x RS-232/422/485
- 1 x RS-232
|
| USB |
|
| Ethernet |
- 2 x 10/100/1000 Mbps (Intel® i211-AT)
- 1 x 10/100/1000 Mbps (Intel® i211-AT) (optional)
|
| Display |
- 1 x DisplayPort
- 1 x LVDS
- 1 x VGA
|
| Digital I/O |
- 8-channel in/out programmed
|
| Audio |
|
| Storage |
- 1 x M.2 KEY B (SATA, USB 2.0) in 22 x 42 or 30 x 42
- 1 x SATA-300
|
| Expansion |
- 1 x M.2 KEY E (PCIe x1) in 22 x 30
|
| Others |
|
| Battery |
|
| Power Input |
- 2 x 2 pin connector
- +12 VDC-in
- AT Auto Power On function supported
|
| Power Requirements |
- Intel® Celeron® J1900 @ 2 GHz 8GB DDR3L
Max RMS: +12V @ 1.26A
- Intel® Celeron® J1800 @ 2.41 GHz 8GB DDR3L
Max RMS: +12V @ 1.2A
|
| Watchdog Timer |
- 255 levels, 1 to 255 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- -20°C to +70°C (-4°F to 158°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Intel® Celeron® processor J1900/J1800
1 DDR3L SO-DIMM for up to 8GB of memory
2 USB 2.0 and 1 USB 3.0
3 GbE LAN
M.2 Key E
M.2 Key B
|
