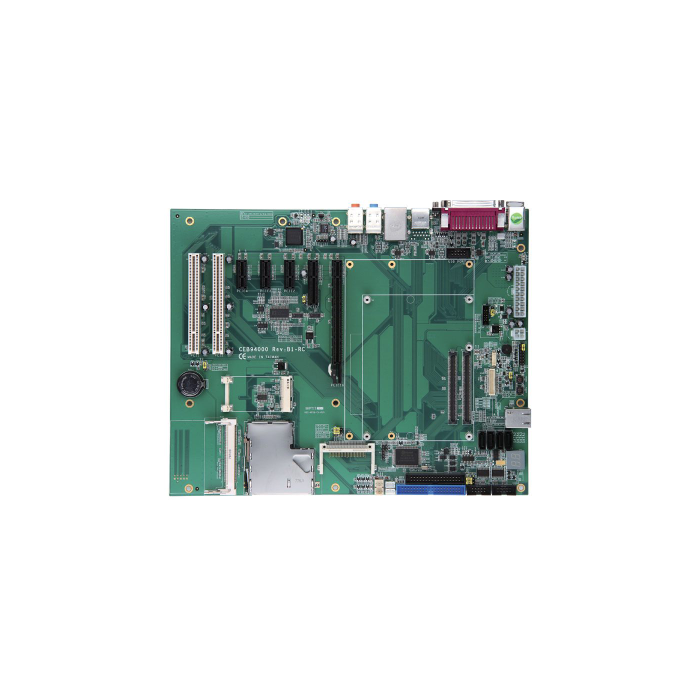

CEB94000 - Baseboard
COM Express™ Type 2 Development Baseboard
Standard ATX form factor for development purpose
1 PCIe x16, 1 PCIe x4, 3 PCIe x 1 and 2 PCI slots
1 ExpressCard, 1 PCI Express Mini Card and 1 MiniPCI
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
- COM Express™ type 2 basic or extended module
|
| Chipset |
|
| System Memory |
|
| BIOS |
- On the module; optional socket on the baseboard
|
| Serial |
- 1 x RS-232 (COM 2)
- 1 x RS-232 (COM 1)
|
| USB |
|
| Ethernet |
|
| Display |
- 1 x S-Video (depending on CPU module)
- 1 x LVDS LCD interface
- 1 x CRT D-Sub connector
|
| GPIO |
|
| Audio |
- Line-in/line-out/MIC-in and SPIF
|
| Storage |
|
| Expansion |
- 1 x PCIe x16 for graphics and SDVO ADD2+ card
- 1 x PCIe x4 or 3 x PCIe x1
- 2 x 32-bit/33MHz PCI
- 1 x ExpressCard
- 1 x PCI Express Mini Card
- 1 x MiniPCI type-III
|
| Others |
- 1 x IDE; PATA-100
- 1 x FDD
- 1 x PS/2 keyboard & mouse
- 1 x LPT; with SPP/EPP/ECP supported
- 1 x IrDA
- 1 x SMBus
- Port 80 display
|
| Battery |
|
| Power Input |
|
| Watchdog Timer |
|
| Hardware Monitoring |
|
| Operating Temperature |
- 0° ~ +60°C (32°F ~ 140°F)
|
| Relative Humidity |
- 10% ~ 95% relative humidity, non-condensing
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Standard ATX form factor for development purpose
1 PCIe x16, 1 PCIe x4, 3 PCIe x 1 and 2 PCI slots
1 ExpressCard, 1 PCI Express Mini Card and 1 MiniPCI |
