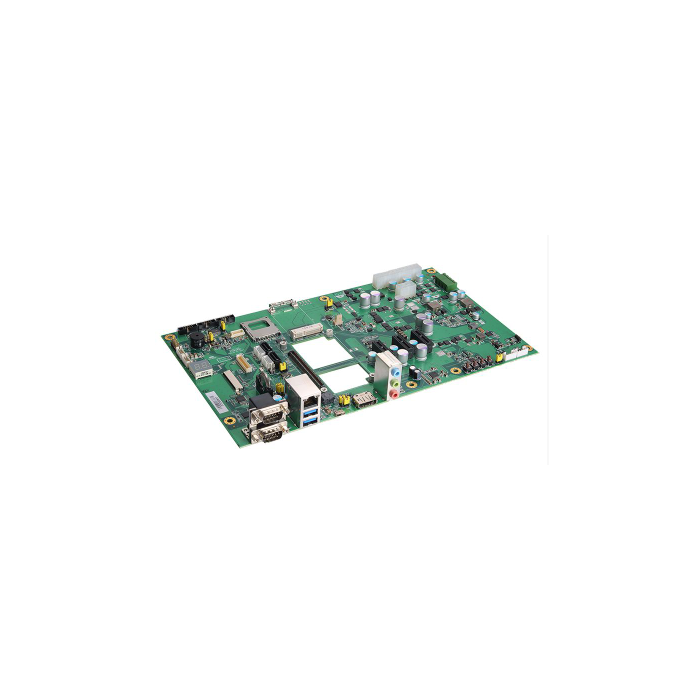

CEB94017 - Development Baseboard
A$0.00
In stock
SKU
CEB94017 - Development Baseboard
COM Express Type 10 Development Baseboard
COM Express Type 10 baseboard
2 SATA-300 and SD card slot
1 PCI Express Mini Card slot
5 USB 2.0 and 2 USB 3.0
Port 80 display for debugging
More Information
| Brand |
Axiomtek |
| Specifications |
| CPU |
|
| Chipset |
|
| System Memory |
|
| BIOS |
|
| Serial |
- 2 x TX/RX
- 2 x RS-232/422/485
|
| USB |
- 4 x USB 2.0 (wafer connector)
- 2 x USB 3.0
- 1 x micro USB (USB 2.0)
|
| Ethernet |
|
| Display |
- 1 x DisplayPort
- 1 x 40-pin LVDS / 1 x 8-pin inverter connector
- 1 x eDP
- 1 x jumper for LVDS panel 3.3V/5V/12V voltage selection
- 1 x jumper selection LVDS/eDP
|
| GPIO |
|
| Audio |
|
| Storage |
- 2 x SATA
- 1 x SD card slot
|
| Expansion |
- 1 x Full-size PCI Express Mini Card slot
- 3 x PCIe x1
|
| Others |
- Port 80 Display Dual 7 segments port 80 display for convenient debugging purpose through LPC interface
|
| Battery |
|
| Power Input |
- DC input: 5V - 20V (max @ 10A), support single power source and VCC_RTC from COM Express connector
- AT/ATX mode support
|
| Watchdog Timer |
|
| Hardware Monitoring |
|
| Operating Temperature |
- -40ºC to +85ºC (-40ºF to +185ºF)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Vibration |
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
COM Express Type 10 baseboard
2 SATA-300 and SD card slot
1 PCI Express Mini Card slot
5 USB 2.0 and 2 USB 3.0
Port 80 display for debugging
|
