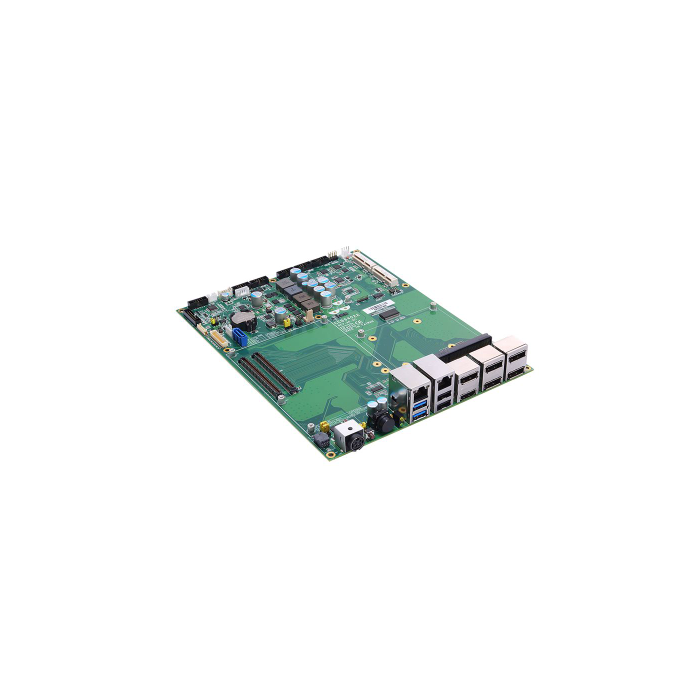

CEB94022 - Application board with MXM slot

A$0.00

In stock

COM Express Type 6 Application Board with MXM Slot

MXM type A supported

SATA-600

LVDS, VGA, HDMI, and DisplayPort

4 USB 2.0 and 2 USB 3.0

2 PCI Express Mini Card slots

3 RS-232/422/485 and 1 RS-232

Brand

Axiomtek

Specifications

CPU	COM Express™ Type 6 module
Chipset	On the module
System Memory	On the module
BIOS	On the module
Serial	1 x RS-232 3 x RS-232/422/485
USB	4 x USB 2.0 2 x USB 3.0
Ethernet	1 x 10/100/1000 Mbps(Intel® i210-IT) 1 x 10/100/1000 Mbps signals routed from CPU module
Display	1 x LVDS 1 x VGA 1 x HDMI (from COM express module) 1 x DisplayPort (from COM Express module) 4 x DisplayPort (from MXM)
GPIO	4-CH in & 4-CH out
Audio	Line-in/Line-out/MIC-in
Storage	1 x SATA-600
Expansion	MXM Type A slot 2 x PCI Express Mini Card slot (full-size)
Others	TPM (depends on COM Express module) SMBus 1 x I2C
Battery	Lithium 3V/220mAH
Power Input	19 to 24 VDC input
Watchdog Timer	On the module
Hardware Monitoring	Yes
Operating Temperature	-20ºC to +50ºC (-4ºF to +122ºF)
Relative Humidity	10% - 95% relative humidity, non-condensing
Vibration	N/A
Dimensions	245 x 190 mm
Board Thickness	1.6mm
Certifications	CE
