CEM310 - Intel Atom x5 and x7
A$0.00
In stock
SKU
CEM310 - Intel Atom x5 and x7

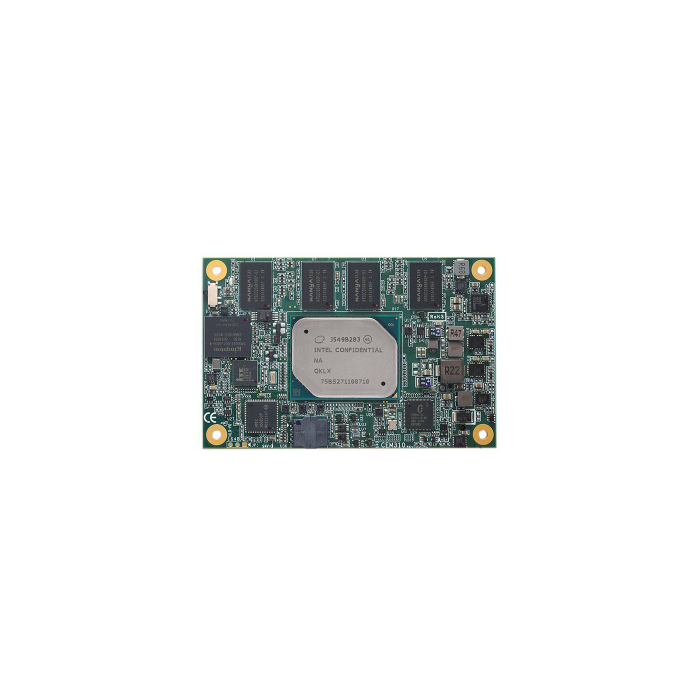

COM Express Type 10 Mini Module with Intel® Atom® x5 and x7 Processor
Intel® Atom® x5 and x7 processors (Apollo Lake)
4GB DDR3L memory onboard
Max. up to 4 lanes of PCI Express
2 SATA-600
2 USB 3.0 and 8 USB 2.0
More Information
| brand |
Axiomtek |
| Specifications |
| CPU |
- Intel® Atom® x7-E3950 (2.0 GHz)
- Intel® Atom® x5-E3940 (1.8 GHz)
- Intel® Atom® x5-E3930 (1.8 GHz)
|
| Chipset |
|
| System Memory |
|
| BIOS |
|
| Serial |
- 1 x LPC
- 1 x SPI
- 2 x TX/RX
|
| USB |
|
| Ethernet |
- 1 x 10/100/1000 Mbps (Intel® i210-IT)
|
| Display |
- 1 x DDI (DisplayPort, HDMI, DVI)
- 1 x LVDS; 18/24-bit single channel (eDP optional)
|
| GPIO |
|
| Audio |
- HD link interface to baseboard for Codec
|
| Storage |
|
| Expansion |
- 4 x PCIe x1 (3 x1 while internal LAN is connected)
|
| Others |
|
| Battery |
|
| Power Input |
- ATX: +12V, +5VSB
- AT: +12V
- Wide range input: +4.75V to +20V
|
| Watchdog Timer |
- 65536 levels, 0 to 65535 sec.
|
| Hardware Monitoring |
|
| Operating Temperature |
- Industrial: -40°C to +85°C (-40°F to +185°F)
- Standard: -20°C to +70°C (-4°F to +158°F)
|
| Relative Humidity |
- 10% to 95% relative humidity, non-condensing
|
| Vibration |
|
| Dimensions |
|
| Board Thickness |
|
| Certifications |
|
|
| Description |
Intel® Atom® x5 and x7 processors (Apollo Lake)
4GB DDR3L memory onboard
Max. up to 4 lanes of PCI Express
2 SATA-600
2 USB 3.0 and 8 USB 2.0
|
