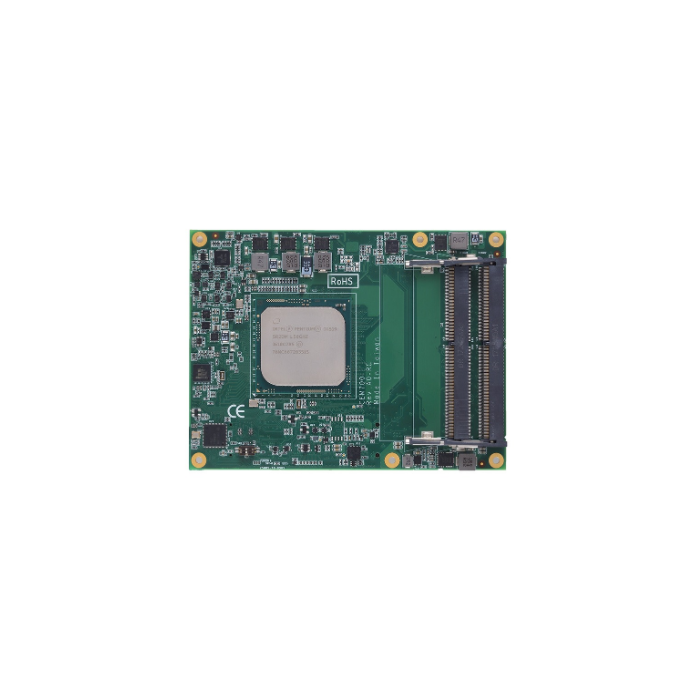

CEM700 Xeon & Pentium D-1500

A$0.00

In stock

SKU

CEM700-D15xx

COM Express Type 7 Basic Module with Intel® Xeon® D-1500 & Pentium® Processor D1500

Intel® Xeon® D-1500 and Pentium® Processor D1500 (Broadwell-DE)

2 DDR4-2400 SO-DIMM for up to 32GB of memory

1 PCIe x16 Gen3, 1 PCIe x8 Gen3, 8 PCIe x1 Gen2

2 SATA-600

4 USB 3.0 and 4 USB 2.0

Two 10GBase-KR

TPM 2.0 supported

brand

Axiomtek

Specifications

CPU	Intel® Xeon® D-1577 1.3/2.1GHz 24MB, 45W (16C) Intel® Xeon® D-1539 1.6/2.2GHz 12MB, 35W (8C) Intel® Xeon® D-1527 2.2/2.7GHz 6MB, 35W (4C) Intel® Pentium® D1519 1.5/2.1GHz 6MB, 25W (4C) Intel® Pentium® D1508 2.2/2.6GHz 3MB, 25W (2C)
Chipset	SoC integrated
System Memory	2 x 260-pin DDR4-2400 ECC SO-DIMM, up to 32GB
BIOS	AMI
Serial	2 x TX/RX
USB	4 x USB 3.0 4 x USB 2.0
Ethernet	1 x 10/100/1000 Mbps(Intel® i210) 2 x 10GBASE-KR (Intel® 10G Ethernet controller)
Display	N/A
GPIO	4-CH in & 4-CH out
Audio	N/A
Storage	2 x SATA-600
Expansion	1 x PCIe x16 Gen3 1 x PCIe x8 Gen3 8 x PCIe x1 Gen2
Others	1 x I2C 1 x LPC 1 x SPI TPM 2.0 SMBus
Battery	N/A
Power Input	ATX: +12V, +5VSB AT: +12V
Watchdog Timer	65536 levels, 0 to 65535 sec.
Hardware Monitoring	Yes
Operating Temperature	Industrial: -40°C to 85°C (-40°F to 185°F) Standard: 0°C to 60°C (32°F to140°F)
Relative Humidity	10% to 95% relative humidity, non-condensing
Vibration	3.5 Grms
Dimensions	125 x 95 mm
Board Thickness	2.0 mm
Certifications	CE
