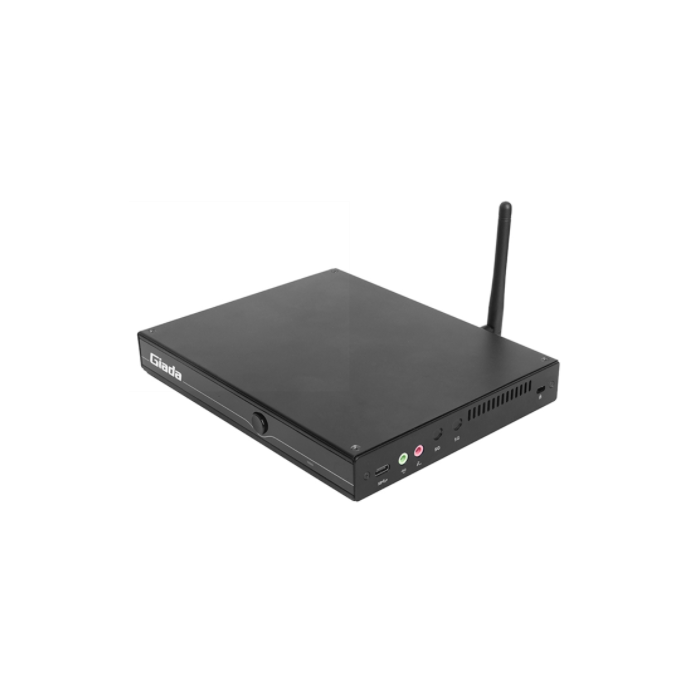

D610 - Intel Mobile Core 10th Gen, 1xDP, 1 xHDMI

A$0.00

In stock

SKU

D610

High End Digital Signage Player based on 10th Gen Core i3-i7 CPU

Intel® Comet Lake 10th Gen Processors

Intel® CoreTM i3-10110U / i5-10210U

1 x DP, 2 x HDMI, Supporting 4K Display

2 x SO-DIMM DDR4 Memory, Up to 32GB

1 x M-key M.2 (2242/2280) for SSD

1 x RJ45, 1 x Mini-PCIe for mSATA/WiFi/3G/4G,

1 x SIM Slot

Brand

Giada Technology Inc.

Specifications

D610-N1-10110U40M0G	D610-N1-10210U40M0G
Processor	CPU	Intel^®Core™ i3-10110U	Intel^®Core™ i5-10210U
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR4-2400MHz
	Socket	2 x SO-DIMM
	Max Size	32GB
Graphics	GPU	Intel^® 10th Gen. UHD Graphics
	Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1
	DP	1 x DP (Max.4096 x 2304 @60Hz)
	HDMI	1 x HDMI (Max.4096x2304 @60Hz)
	HDMI	1 x HDMI (Max.4096x2304 @24Hz)
Network	Controller	Realtek 8111H Gigabit Ethernet
	Interface	1 x RJ45
I/O	USB	5 x USB 3.2 Gen2 (10 Gbps)
	Serial Port	1 x RS232
	Audio	1 x AUDIO-OUT, 1 x MIC-IN
	Mini-PCIe	1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
	M.2(2230)	1 x M.2(2230) for WiFi
	SIM	1 x SIM Slot
	TPM	Infineon TPM 2.0
Storage	M.2	1 x M.2(2242/2280) for SSD
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	Remote Control	By IR Controller for Power On
	RTC	Set Up Independently Every day, A Week as a Cycle
	Wake On Lan	Yes
Operation System	Windows	Windows 10（64-Bit）
	Linux	Supported
Power	Power Type	DC-IN
	Input Voltage	19V / 3.42A
Mechanical	Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
	Construction	Metal
	Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC
