Shop D611 11th Gen Signage Media Player

Details

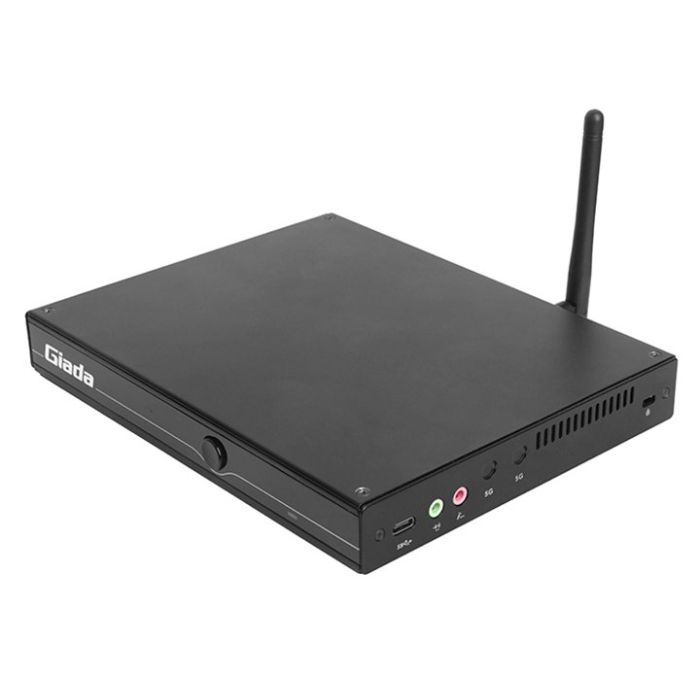

The Giada Tech D611 is an 11^th gen Intel Digital Signage Player supporting 8K displays. Based on the Iris Xe Graphics GPU it provides 1 x Display Port - 8K @ 60Hz , 2 x HDMI – 4K @ 60Hz and multiple USB + RS232 housed in 190 x 149 x 26mm. Support for Wifi 6 and onboard Sim slot allows easy integration of LTE module for complete processing/communication package.

1 x DP, 2 x HDMI, Supporting 8K Display
2 x SO-DIMM DDR4 Memory, Up to 32GB
1 x M-key M.2 (2242/2280) for SSD
Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G
Ethernet Access

More Information

Brand

Giada Technology Inc.

Specifications

D611-N1-1115G440M0G	D611-N1-1135G740M0G	D611-N2-1165G740M0G
Processor	CPU	Intel^®Core™ i3-1115G7	Intel^®Core™ i5-1135G7	Intel^®Core™ i7-1165G7
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR4-3200MHz
	Socket	2 x SO-DIMM
	Max Size	32GB
Graphics	GPU	Intel^® 11th UHD Graphics	Intel^® Iris Xe Graphics
	Graphic Engine	DirectX 12, OpenGL 4.5, OpenCL 2.2 8K60 12b 4:2:0 HEVC/VP9/SCC
	DP	1 x DP (Max.7680 x 4320 @60Hz)
	HDMI	1 x HDMI (Max.4096x2304 @60Hz)
	HDMI	1 x HDMI (Max.4096x2304 @60Hz)
Network	Controller	Realtek 8111H Gigabit Ethernet
	Interface	1 x RJ45
I/O	USB	1 x USB3.2 Gen2, 2 x USB2.0
	USB Type-C	1 x USB Type-C3.2 Gen2
	Serial Port	1 x RS232
	Audio	1 x AUDIO-OUT, 1 x MIC-IN
	Mini-PCIe	1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
	Wireless	1 x E-key M.2 (2230) for WiFi/BT
		1 x B-key M.2 (3052) for 3G/4G/5G
	SIM	1 x SIM Slot
	TPM	Infineon TPM 2.0
Storage	M.2	1 x M-key M.2 (2242/2280) for SATA / NVMe
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	Remote Control	By IR Controller for Power On
Operation System	Windows	Windows 10 IoT Core
	Linux	Ubuntu 18.04/20.04
Power	Power Type	DC-IN
	Input Voltage	12V / 19V
Mechanical	Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
	Construction	Metal
	Mounting	Desk/Wall Mounting and VESA Mounting Kit (JZ183)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC

Description

The Giada Tech D611 is an 11^th gen Intel Digital Signage Player supporting 8K displays. Based on the Iris Xe Graphics GPU it provides 1 x Display Port - 8K @ 60Hz , 2 x HDMI – 4K @ 60Hz and multiple USB + RS232 housed in 190 x 149 x 26mm. Support for Wifi 6 and onboard Sim slot allows easy integration of LTE module for complete processing/communication package.

1 x DP, 2 x HDMI, Supporting 8K Display
2 x SO-DIMM DDR4 Memory, Up to 32GB
1 x M-key M.2 (2242/2280) for SSD
Supporting RJ45, WiFi 6(CNVi), 3G/4G/5G
Ethernet Access

Reviews

Write Your Own Review

Downloads

D611.pdf

D611 - Intel Mobile Core 11th Gen, 1xDP, 2xHDMI
