Shop DE67/ F302 DP/HDMI/VGA Media Player

Details

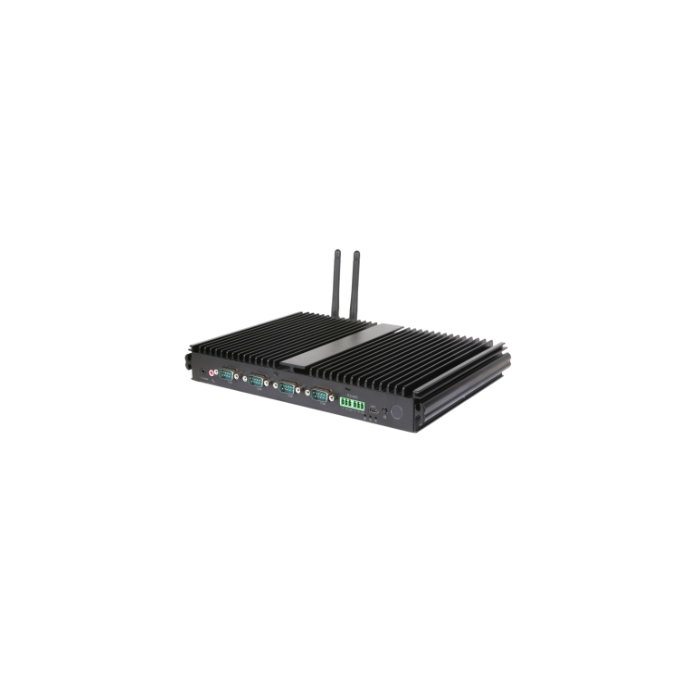

DE67 from Giada is a high-end digital signage computer powered by a choice of either the Intel Core i5-7200U or the i3-7100U processors from Intel 7th generation family. Supporting 3 independent displays and having comprehensive I/O, the DE67 is a strong contender for advanced digital signage projects.

· Intel® 7th Genneration Core Processors

· 2 x SO-DIMM DDR3L,Up to 32GB

· 1 x DP,1 x HDMI 2.0,1 x VGA

· 1 x 2.5"SATA,1 x mSATA,1 x M.2 for SSD

· 1 x Type-C USB 3.0,3 x USB 3.0,2 x USB 2.0,4 x RS232,2 x RS485

· 2 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G,1 x SIM Slot

More Information

Brand

Giada Technology Inc.

Specifications

		DE67-N1-7100U3000G/DE67-N1-7200U3000G
Processor	CPU	Intel^® Core i3-7100U / Intel^® Core i5-7200U
	Frequency	2.40GHz / 2.50 GHz (Up to 3.10GHz )
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR3L-1600MHz
	Socket	2 x SO-DIMM
	Max Size	32GB
Graphics	GPU	Intel^® HD Graphics 620
	Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1
	DP	1 x DP (Max.4096 x 2304@60Hz)
	HDMI	1 x HDMI (Max.3840 x 2160@60Hz)
	VGA	1 x VGA (Max.2048 x 1536@60Hz)
Network	Controller	1 x Intel I211, 1 x Intel I219, Gigabit Ethernet
Network	Interface	2 x RJ45
I/O	USB	1 x Type-C USB 3.0, 3 x USB 3.0, 2 x USB 2.0
	Serial Port	4 x RS232, 2 x RS485
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Mini-PCIe1#	1 x Full-size Mini-PCIe for mSATA
	Mini-PCIe2#	1 x Full-size Mini-PCIe for WiFi/BT/3G/4G
	M.2	1 x M.2 (2242/2280) for SSD
	SIM Slot	1 x SIM Slot
Storage	SATA	1 x 2.5" SATA
	mSATA	1 x Full-size Mini-PCIe for mSATA
	M.2	1 x M.2 (2242/2280) for SSD
JAHC Tech	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	RTC	Set Up Independently Every day, A Week as a Cycle
	Remote Control	By IR Controller for Power On
Operation System	Windows	Windows 8.1/10(64-bit)
Power	Power Type	DC-IN
Power	Input Voltage	19V/3.42A
Mechanical	Dimensions (W × D × H)	260mm x 173.4mm x 38.5mm(10.24"x6.83"x1.52")
	Fanless	Yes
	Construction	Metal
	Mounting(Optional)	Desk/Wall Mounting and VESA Mounting Kit (JZ300)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Environment	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC

Description

DE67 from Giada is a high-end digital signage computer powered by a choice of either the Intel Core i5-7200U or the i3-7100U processors from Intel 7th generation family. Supporting 3 independent displays and having comprehensive I/O, the DE67 is a strong contender for advanced digital signage projects.

· Intel® 7th Genneration Core Processors

· 2 x SO-DIMM DDR3L,Up to 32GB

· 1 x DP,1 x HDMI 2.0,1 x VGA

· 1 x 2.5"SATA,1 x mSATA,1 x M.2 for SSD

· 1 x Type-C USB 3.0,3 x USB 3.0,2 x USB 2.0,4 x RS232,2 x RS485

· 2 x RJ45,1 x Mini-PCIe for WiFi/BT/3G/4G,1 x SIM Slot

Reviews

Write Your Own Review

Downloads

Data Sheet

DE67/ F302, 7th Gen i series, DP/HDMI/VGA
