Shop IPC970 Industrial System 10th Gen Intel

Details

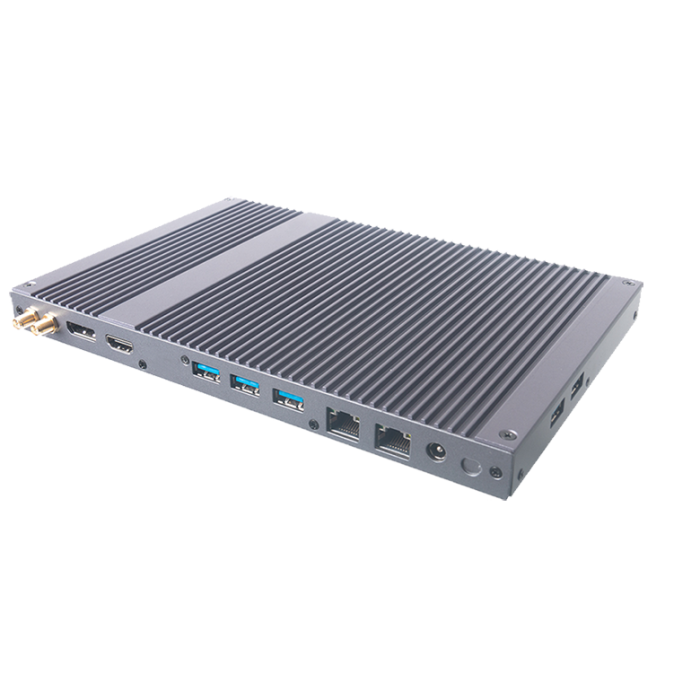

The Giada DF610 is an ultra-thin high-end fanless digital signage player measuring 22mm thin. Equipped with 10th Gen Intel Comet Lake processor, this signage player supports 4K displays to provide stunning visuals.

Key Specifications

1 x DP, 1 x HDMI, Supporting 4K Display

2 x SO-DIMM DDR4 Memory, Up to 32GB

1 x M-key M.2 (2242/2280) for SATA/NVMe

1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G, 1 x SIM Slot

More Information

Brand

Giada Technology Inc.

Specifications

Processor	CPU	Intel Core i3-10110U or	Intel Core i5-10210U
	BIOS	AMI Source Code
	Chipset	SOC
Memory	Type	DDR4-2400MHz
	Socket	2 x SO-DIMM
	Max Size	32GB
Graphics	GPU	Intel 10th Gen. UHD Graphics
	Graphic Engine	Direct3D 2015, OpenGL 4.5, OpenCL 2.1
	DP	1 x DP (Max.4096 x 2304 @60Hz)
	HDMI	1 x HDMI (Max.4096x2304 @60Hz)
	HDMI	1 x HDMI (Max.4096x2304 @24Hz)
Network	Controller	2 x Realtek 8111G Gigabit Ethernet
	Interface	2 x RJ45
I/O	USB	5 x USB 3.2 Gen2 (10 Gbps)
	Serial Port	1 x RS232
	Audio	1 x AUDIO-OUT, 1 x MIC-IN
	Mini-PCIe	1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G
	M.2(2230)	1 x M.2(2230) for WiFi
	SIM	1 x SIM Slot
	TPM	Infineon TPM 2.0 (Optional)
Storage	M.2	1 x M.2(2242/2280) for SSD
JAHC Tech	Watchdog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	Remote Control	By IR Controller for Power On
	RTC	Set Up Independently Every day, A Week as a Cycle
	Wake On Lan	Yes
Operation System	Windows	Windows 10（64-Bit）
	Linux	Support
Power	Power Type	DC-IN
	Input Voltage	19V / 3.42A
Mechanical	Dimensions (W × D × H)	189.6mm x 148.3mm x 26mm（7.46"x 5.84"x 1.02"）
	Construction	Metal
	Mounting	Desk/Wall Mounting and VESA Mounting Kit (JC300)
	Colour	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC Class B, CCC
License	The Adopted Trademarks HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Description

The Giada DF610 is an ultra-thin high-end fanless digital signage player measuring 22mm thin. Equipped with 10th Gen Intel Comet Lake processor, this signage player supports 4K displays to provide stunning visuals.

Key Specifications

1 x DP, 1 x HDMI, Supporting 4K Display

2 x SO-DIMM DDR4 Memory, Up to 32GB

1 x M-key M.2 (2242/2280) for SATA/NVMe

1 x Full-size Mini-PCIe for mSATA/WiFi/3G/4G, 1 x SIM Slot
