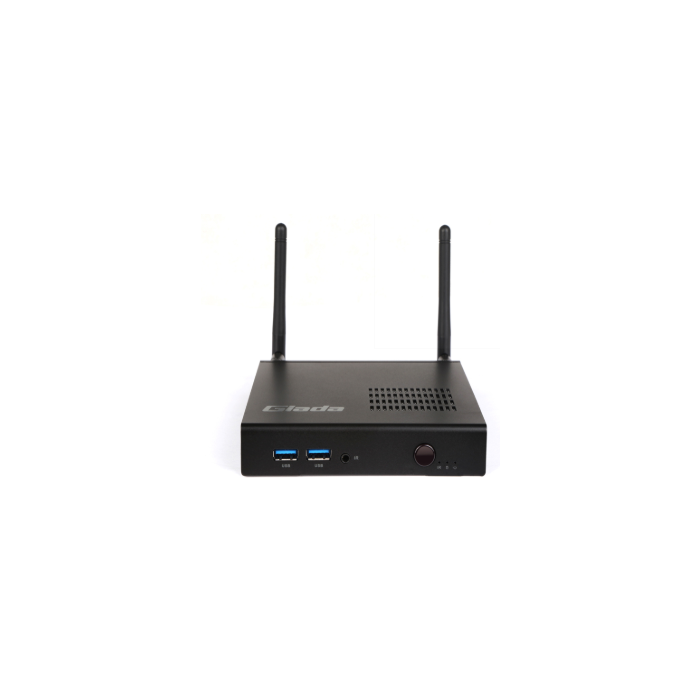

DK37 Celeron 3867U Signage Player, Dual Display Support
Main-Stream Kabylake thin client, Intel Celeron processor
Main-Stream Kabylake thin client, Intel Celeron processor
· Intel® Celeron Processor
· 1 x SO-DIMM DDR4,Up to 32GB
· 1 x DP,1 x HDMI 2.0, Supporting 4K Display
· 1 x mSATA, eMMC Onboard (Optional)
· 4 x USB 3.0, 1 x RS232
· 2 x RJ45,1 x M.2 (2230) for WiFi/BT
More Information
| brand |
Giada Technology Inc. |
| Specifications |
| DK37 |
DK37-N1-3865U40M0G-GIA |
| Processor |
CPU |
Intel® Celeron 3867U |
| Frequency |
1.80 GHz |
| BIOS |
AMI Source Code |
| Chipset |
SOC |
| Memory |
Type |
DDR4-2133MHz |
| Socket |
1 x SO-DIMM |
| Max Size |
32GB |
| Graphics |
GPU |
Intel® HD Graphics 610 |
| Graphic Engine |
Direct3D 2015, OpenGL 4.5, OpenCL 2.1 |
| DP |
1 x DP (Max. 4096 x 2304@60Hz) |
| HDMI |
1 x HDMI (Max. 3840 x 2160@30Hz) |
| Network |
Controller |
Realtek RTL8111F Gigabit Ethernet |
| Interface |
1 x RJ45 |
| I/O |
USB |
4 x USB 3.0 |
| Display Interface |
1 x DP, 1 x HDMI |
| LAN |
1 x RJ45 |
| Serial Port |
1 x RS232 |
| Audio |
1x2-in-1 Headset（MIC-IN&AUDIO-OUT） |
| Mini-PCIe |
1 x Full-size Mini-PCIe for mSATA |
| M.2 |
1 x M.2 (2230) for WiFi/BT |
| Storage |
mSATA |
1 x Full-size Mini-PCIe for mSATA |
| eMMC |
eMMC Onboard(Optional) |
| JAHC Tech |
WatchDog Timer |
0~255 Second Time Out Support |
| Auto Power On |
Power Activated Automatically Start |
| RTC |
Set Up Independently Every day, A Week as a Cycle |
| Remote Control |
By IR Controller for Power On |
| Operation System |
Windows |
Windows 10(64-bit) |
| Linux |
Supported |
| Power |
Power Type |
DC-IN |
| Input Voltage |
19V/2.1A |
| Mechanical |
Dimensions (W × D × H) |
130mm x 129.3mm x 25.4mm |
| Construction |
Metal |
| Color |
Black |
| Environment |
Operating Temperature |
0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow |
| Relative Humidity |
95%@40℃ (non-condensing) |
| Certification |
Certification |
CE, FCC Class B, CCC |
|
| Description |
Main-Stream Kabylake thin client, Intel Celeron processor
· Intel® Celeron Processor
· 1 x SO-DIMM DDR4,Up to 32GB
· 1 x DP,1 x HDMI 2.0, Supporting 4K Display
· 1 x mSATA, eMMC Onboard (Optional)
· 4 x USB 3.0, 1 x RS232
· 2 x RJ45,1 x M.2 (2230) for WiFi/BT
|
