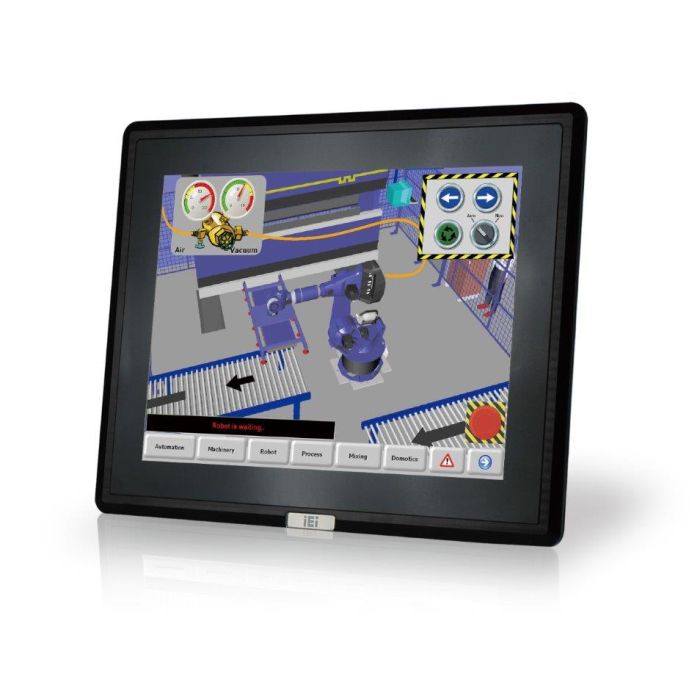

DM-F17A, 17" LCD touch, 9~36VDC input

A$0.00

In stock

SKU

DM-F17A

17" 350 cd/m² SXGA LCD monitor

17" 350 cd/m² SXGA LCD monitor

· Robust IP65 aluminum front bezel

· Aesthetic ultra-thin bezel for seamless panel mount installation

· Wide range 9V~36V DC input

· HDMI / DisplayPort / VGA flexible video input solution

· Projected capacitive multi-touch and resistive single touch options

· Wide temperature support

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	350
Contrast Ratio	1000:1
LCD Size	17”(5:4)
Max Resolution	1280 (W) x 1024 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
I/O Interface
I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI (F19A only) 1 x HDMI(F17A only) 1 x DisplayPort1.1 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack 1 x 9V-36V terminal block
LCD
LCD Color	16.7M
Pixel Pitch (mm)	0.26 x 0.26
Viewing Angle (H-V)	170° / 160°
Physical Characteristics
Cutout Dimensions	324 x 391
Dimensions (LxWxH) (mm)	341.4 x 408.4 x 49.3
Power
Power adapter	9V~36V DC
Touch
Touch Controller	5-wire resistive single touch window/ Penmount 6000
Touch Screen	2-point projected capacitive touch window/ EETI EXC7200
Weight
Weight	4.4 / 7.1

Description

17" 350 cd/m² SXGA LCD monitor

· Robust IP65 aluminum front bezel

· Aesthetic ultra-thin bezel for seamless panel mount installation

· Wide range 9V~36V DC input

· HDMI / DisplayPort / VGA flexible video input solution

· Projected capacitive multi-touch and resistive single touch options

· Wide temperature support
