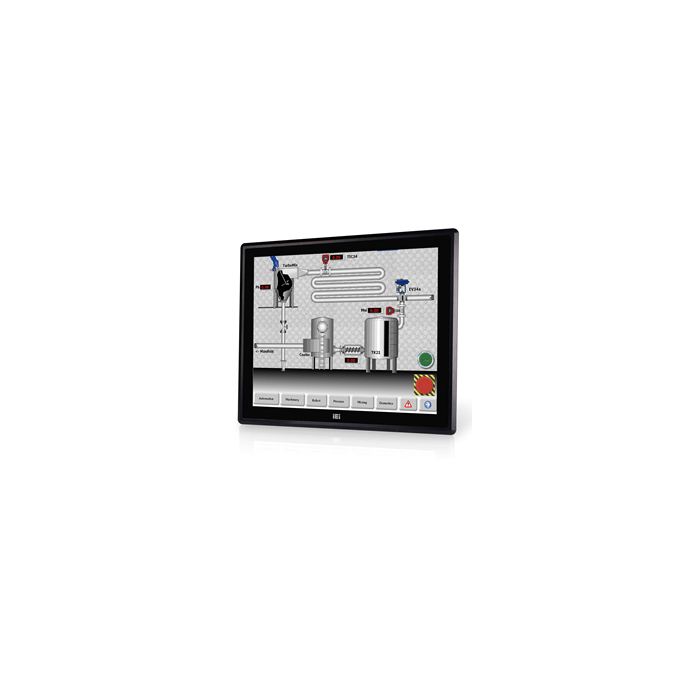

DM-F19A, 19" LCD touch, 9~36VDC input

A$0.00

In stock

SKU

DM-F19A

19" 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20

19" 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20

Brand

IEI Integration Corp.

Specifications

Spec Item	Description
Display
Backlight MTBF(hrs)	50000
Brightness(cd/m2)	350
Contrast Ratio	1000:1
LCD Size	19”(4:3)
Max Resolution	1280 (W) x 1024 (H)
Environment
Humidity	10% to 95% (non-condensing)
IP Level	IP 65 compliant front panel
Operating Temperature	-20°C ~ 60°C
Storage Temperature	-20°C ~ 70°C
I/O Interface
I/O Ports and Switches	1 x VGA (DB-15) 1 x DVI (F19A only) 1 x HDMI(F17A only) 1 x DisplayPort1.1 1 x USB 2.0 (touch) 1 x RS-232 (reserved for resistive touch ATO) 1 x Lockable 12V DC jack 1 x 9V-36V terminal block
LCD
LCD Color	16.7M
Pixel Pitch (mm)	0.294 x 0.294
Viewing Angle (H-V)	170° / 160°
Physical Characteristics
Cutout Dimensions	430 x 355
Dimensions (LxWxH) (mm)	372.4 x 447.4 x 49.57
Power
Power adapter	9V~36V DC
Touch
Touch Controller	5-wire resistive single touch window/ Penmount 6000
Touch Screen	2-point projected capacitive touch window/ EETI EXC7200
Weight
Weight	5.4 /8.4

Description

19" 250 cd/m² SXGA LCD monitor, Aluminum die casting front panel, Black color, W/ USB projected capacitive touch screen, 9 ~36V DC input, R20
