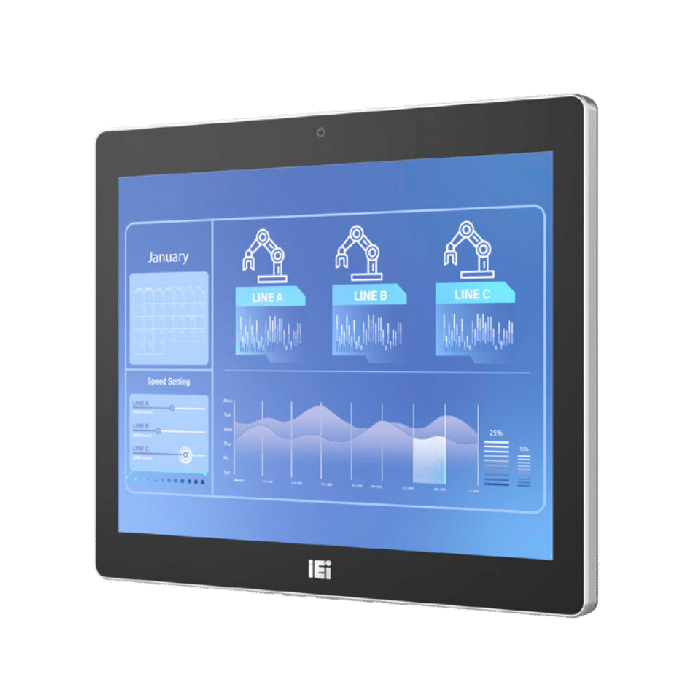

DM2-121E-HL 12.1" IP65-Front Industrial Display 1000nit

Be the first to review this product

A$0.00

In stock

SKU

DM2-121E-HL-R10/DM2-121E-HL-R10

IEI's Latest Generation Industrial Monitor

Key Features:

1000nit High Brightness Display
Front OSD, easy access for setting adjustment
Speakers are positioned at the front, ensuring clear sound delivery
Supports gloved operation and waterproof protection
Built-in camera, ideal for AI facial recognition
USB 3.2 Gen1 Type-A supports 10W
IP65-compliant front panel with aluminum frame
Anti-glare and anti-UV PCAP

Details

The DM2 series LCD monitor is the latest member of IEI’s line of sophisticated LCD designs with flat bezel. It is designed to fit industrial automation. The flat front panel provides IP 65 protection, which effectively wards off dust and water. Flexible analog or digital interfaces are provided for ease of connection with a management computer.

More Information

brand

IEI Integration Corp.

Specifications

Model Name	DM2-121E(L)-HL
LCD Size	12.1" (4:3)
Brightness (cd/m2)	1000
Max Resolution (W-H)	1024x768
Contrast Ratio	1000: 1
LCD Color	16.2M
Viewing Angle (H-V)	178°/178°
Backlight MTBF (hrs)	50000
Touch Screen	10-point projected capacitive touch window (anti-UV, anti-glare surface)
Touch Controller	Capacitive: LiTek
I/O Ports and Switches	1 x VGA (DB-15) 1 x Line out 1 x HDMI 1 x DisplayPort 1.1 1 x USB 3.2 Gen1 Type-B 1 x 9V-36V DC jack 4 x USB 3.2 Gen1 Type-A * 1 x 3-pin terminal block
OSD Keypad	5-key membrane OSD keypad
Camera	Standard configuration*
Speaker	2 x 2W AMP (internal speaker)*
Construction Material	Aluminum front frame and sheet metal rear cover
Mounting	Panel mount, rack mount, VESA 100
Enclosure Colour	Black
Dimensions (LxWxH) (mm)	279.86 x 237.50 x 49.3
Cutout Dimensions (mm)	270.50 x 214.10
Operating Temperature	-20°C ~ 60°C (with airflow)
Storage Temperature	-20°C ~ 70°C
Humidity	10% to 95%@40°C (non-condensing) (50%@60°C)
Vibration	MIL-STD-810F 514.5C-1
Shock	Operating: Half-sine wave shock 5G; 11ms; 100 shocks per axis No-operating: Half-sine wave shock 15G; 11ms; 100 shocks per axis
IP Level	IP 65 compliant front panel
Safety & EMC	CE/FCC/UKCA Class A
Power Input	9~36V DC
Power Cord	EU

* L (Lite) without Camera, Speaker, USB-A x 4
