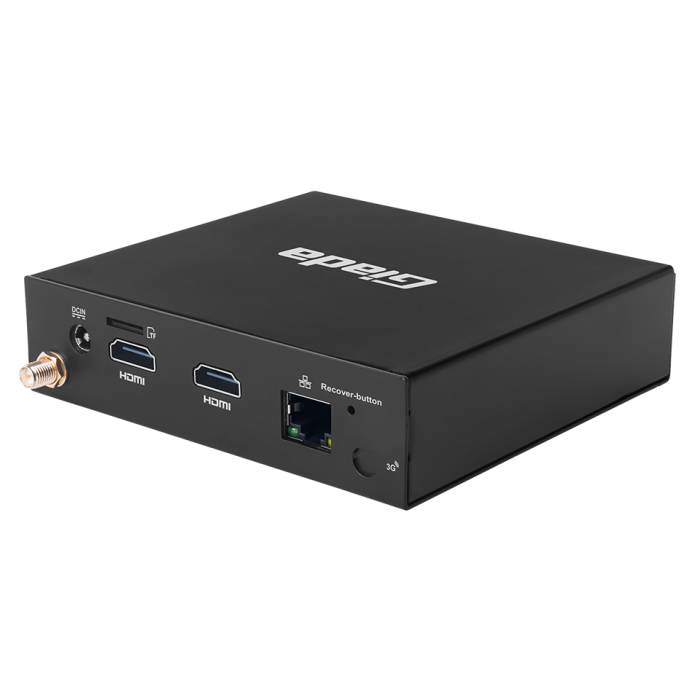

DN74 - RK3399 Quad core ARM player

A$0.00

In stock

SKU

DN74

DN74, RK3399 Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53

Brand

Giada Technology Inc.

Specifications

Processor	CPU	RK3399 Dual-core ARM Cortex-A72 and Quad-core ARM Cortex-A53
	Frequency	Up to 1.8GHz
	Chipset	SOC
Memory	Type	LPDDR4 Support 2 channels
	Socket	Onboard
	Size	4GB(2GB Optional)
Graphics	GPU	Mali-T860MP4
	Video Decoding Capability	4K H.264/H.265 video decoder
	HDMI	1 x HDMI (Max.4K @60Hz) 1 x HDMI (Max.2K @30Hz)
Network	Controller	Realtek RTL8211E Gigabit Ethernet
Network	Interface	1 x RJ45
I/O	USB	1 x USB 3.0 (OTG), 3 x USB 2.0
	Display Interface	2 x HDMI
	LAN	1 x RJ45
	Serial Port	1 x RS232
	Audio	1 x MIC-IN, 1 x AUDIO-OUT
	Mini-PCIe	1 x Full-size Mini-PCIe for 3G/4G
	SIM	1 x SIM Slot
	WiFi on Board	1 x WiFi Module Onboard (WIFI 5G, IEEE802.11 a/b/g/ac) Optional: WIFI 2.4G
	LED Indicators	1 x HDD LED, 1 x Power LED
JAHC	WatchDog Timer	0~255 Second Time Out Support
	Auto Power On	Power Activated Automatically Start
	RTC	Set Up Independently Every day, A Week as a Cycle
	Remote Control	By IR Controller for Power On/OFF
Storage	eMMC	32GB
Storage	eMMC	Optional:16GB
Operation System	Android	Android7.1
Power	Power Type	DC-IN
Power	Power A dapter	12V
Mechanical	Dimensions (W × D × H)	116.6mm x 107.4mm x 30mm
	Fanless	Yes
	Construction	Metal
	Mounting(Optional)	Desk/Wall Mounting and VESA Mounting Kit(JT-NUC-JC530)
	Color	Black
Environment	Operating Temperature	0℃ ~ 40℃ ( 32 ℉ ~ 104 ℉ ) at 0.7m/s Air Flow
Environment	Relative Humidity	95%@40℃ (non-condensing)
Certification	Certification	CE, FCC
