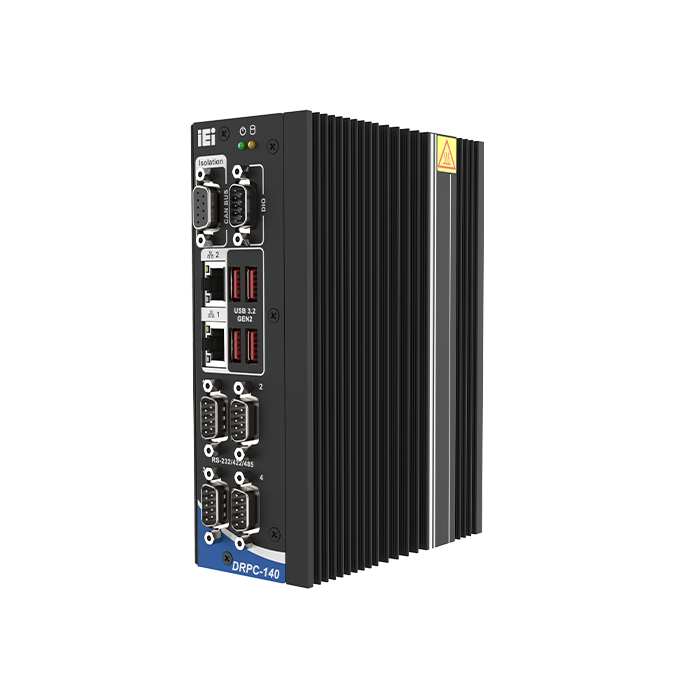

The IEI DRPC-140-EHL is a compact, fanless embedded system designed for industrial automation, smart factory, and IoT applications. Powered by Intel® Elkhart Lake processors, it delivers enhanced computing performance with low power consumption. This robust system features multiple I/O ports, including dual GbE LAN, USB 3.2, and RS-232/422/485, making it versatile for various industrial tasks. The DRPC-140-EHL supports dual-display outputs via HDMI and DisplayPort, ensuring clear and detailed visuals. With its rugged design and wide operating temperature range, this system is built to perform reliably in harsh environments.
1 x SO-DIMM DDR4 3200 (8GB pre-installed) (up to 32GB)
Power:
3-pin terminal block: 12-24V DC
Consumption: 12V@3.36 (Intel® Celeron® J6412 with 8GB DDR4 Memory)
I/O Interface
I/O Ports
USB:
4 x USB 3.2 Gen2
Ethernet:
2 x 2.5 GbE by Intel® I225-V/I226-V controller
Display:
2 x HDMI™ (up to 4K@30Hz)
COM Port:
4 x RS-232/422/485 (DB-9)
Digital I/O:
8-bit Digital I/O (4-in/ 4-out)
CAN BUS:
2 x CAN-bus (DB9 with 2.5kV isolation)
Wireless:
1 x 802.11a/b/g/n/ac (optional)
TPM:
1 x TPM (2 x10 pin)
Intel PTT
Watchdog Timer:
Programmable 1 ~ 255 sec/min
Expansion Slots
Expansion Slots
M.2:
1 x M.2 A Key 2230 (PCIe Gen3 x1/USB 2.0)
1 x M.2 M Key 2280 (PCIe Gen3 x2)
System
Cooling method / System Fan
Fanless
Drive Bays
eMMC 5.1 (Optional) (MOQ, please contact with sales account manager)
Indicator&Buttons
Buttons
1 x Power Button
1 x Reset Button
1 x AT/ATX Switch
Indicators
1 x LED for Power
1 x LED for HDD
Physical Characteristics
Construction
Extruded aluminum alloy
Color
Color
Black
Dimensions
Dimensions
58.75 x 130 x 174 (mm)
Weight
Weight
Net: 1.39kg / Gross: 1.68 kg
Environment
Operating Temperature
-20°C ~ 60°C with 0.7M/S air flow (M.2)
Humidity
10% ~ 95% non-condensing
Operating Vibration
MIL-STD-810G 514.6C-1 (SSD)
Operating Shock
Half-sine wave shock 5G, 11ms, 100 shocks per axis (SSD)
Safety & EMC
CE, FCC, UKCA
OS Support
OS Support
Microsoft® Windows® 10/11, Linux
Description
The IEI DRPC-140-EHL is a compact, fanless embedded system designed for industrial automation, smart factory, and IoT applications. Powered by Intel® Elkhart Lake processors, it delivers enhanced computing performance with low power consumption. This robust system features multiple I/O ports, including dual GbE LAN, USB 3.2, and RS-232/422/485, making it versatile for various industrial tasks. The DRPC-140-EHL supports dual-display outputs via HDMI and DisplayPort, ensuring clear and detailed visuals. With its rugged design and wide operating temperature range, this system is built to perform reliably in harsh environments.
