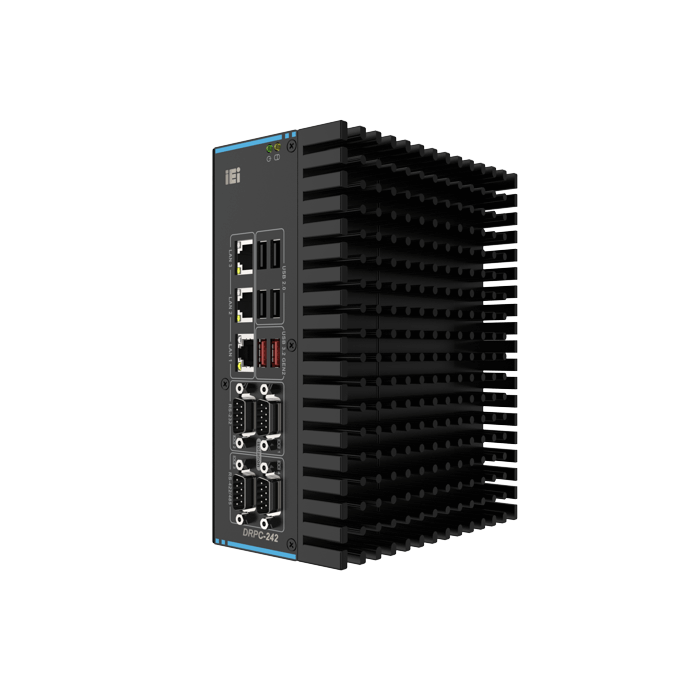

| Specifications |
|
Form factor
|
|
SBC Form Factor
|
-
Supported CPU:
Intel® Core™ i7-1370PE (up to 4.8GHz, 14-core, 28W TDP)
Intel® Core™ i7-1260P (up to 4.7GHz, 12-core, 28W TDP)
Intel® Core™ i5-1340PE (up to 4.5GHz, 12-core, 28W TDP)
Intel® Core™ i5-1240P (up to 4.4GHz, 12-core, 28W TDP)
Intel® Core™ i3-1320PE (up to 4.5GHz, 8-core, 28W TDP)
Intel® Core™ i3-1220P (up to 4.4GHz, 10-core, 28W TDP)
Intel® Celeron® 7305 (5-core, 15W TDP)
-
Chipset:
SoC
-
System Memory:
2 x SO-DIMM slot DDR4 3200 MHz (8 GB pre-installed) (up to 64GB)
-
Power:
3-pin terminal block: 12 ~ 28 VDC
Consumption: 12V@4.46A (Intel® Core™ i7-1260P with DDR4 8G Memory)
|
|
I/O Interface
|
|
I/O Ports
|
-
USB:
2 x USB 3.2 Gen2
4 x USB 2.0
-
Ethernet:
1 x 2.5 GbE by Intel® I225LM/I226LM controller support iAMT
2 x 2.5 GbE by Intel® I225-V/I226-V controller
-
Display:
1 x lockable HDMI™ 1.4b (up to 4096 x 2160@30Hz)
1 x DP 1.4b (up to 4096 x 2160 @60Hz)
-
COM Port:
2 x RS-232 (DB9 with 2.5KV isolation)
2 x RS-232 (optional)
2 x RS-422/485 with AFC (DB9 with 2.5KV isolation)
-
GPIO:
1 x 12-bit(6-in, 6-out)(optional)
-
TPM:
Support Intel PTT
-
Watchdog Timer:
Programmable 1 ~ 255 sec/min
|
|
Expansion Slots
|
|
Expansion Slots
|
-
M.2:
1 x 2230 A-key (PCIe Gen3 x1/USB 2.0) Support Vpro
1 x 3042/52 B-key (PCIe Gen3 x1/USB 3.2 Gen2/USB 2.0)
1 x On-board SIM card socket (hinge type) for M.2 B key
1 x 2280 M-key (PCIe Gen4 x4)
-
Backplane:
1 x PCIe Gen3 x4 (optional)
|
|
System
|
|
Cooling method / System Fan
|
Fanless
4-pin external system fan connector
|
|
Drive Bays
|
1 x 2.5” SATA 6Gb/s SSD bay
|
|
Indicator & Buttons
|
|
Buttons
|
1 x Power button
1 x 2-pin terminal block for Remote Power Button,
1 x Reset button
1 x AT/ATX switch,
|
|
Indicators
|
1 x Power LED
1 x HDD LED
|
|
Physical Characteristics
|
|
Construction
|
Extruded aluminium alloy
|
|
Colour
|
|
Colour
|
Black
|
|
Dimensions
|
|
Dimensions
|
81 x 150 x190 mm
|
|
Weight
|
|
Weight
|
1.88 / 2.66KG
|
|
Environment
|
|
Operating Temperature
|
-20°C ~ 60°C with 0.7M/S air flow (SSD)
|
|
Humidity
|
10% ~ 95% non-condensing
|
|
Operating Vibration
|
10-500 Hz, 1.04 Grms, random, 1 hr/axis (SSD)
|
|
Operating Shock
|
Half-sine wave shock 5G, 11ms, 3 shocks per axis (SSD)
|
|
Safety & EMC
|
CE, FCC, UKCA
|
|
OS Support
|
|
OS Support
|
Microsoft® Windows® 10/11, Linux
|
|
DRPC-242-ADL-P-i7CS-R10
|
Embedded system with 12th Gen Intel® Core™ i7-1260P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
|
|
DRPC-242-ADL-P-i5CS-R10
|
Embedded system with 12th Gen Intel® Core™ i5-1240P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
|
|
DRPC-242-ADL-P-i3CS-R10
|
Embedded system with 12th Gen Intel® Core™ i3-1220P, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoH
|
|
DRPC-242-ADL-P-Ri7ECS-R10
|
Embedded system with 13th Gen Intel® Core™ i7-1370PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoH
|
|
DRPC-242-ADL-P-Ri5ECS-R10
|
Embedded system with 13th Gen Intel® Core™ i5-1340PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
|
|
DRPC-242-ADL-P-Ri3ECS-R10
|
Embedded system with 12th Gen Intel® Core™ i3-1320PE, TDP 28W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
|
|
DRPC-242-ADL-P-CCS-R10
|
Embedded system with 12th Gen Intel® Celeron® 7305, TDP 15W, 8GB DDR4 pre-installed memory, HDMI/DP, 3 x 2.5GbE LAN, 4 x COM, 6 x USB, 12~28V DC, RoHS
|
|
