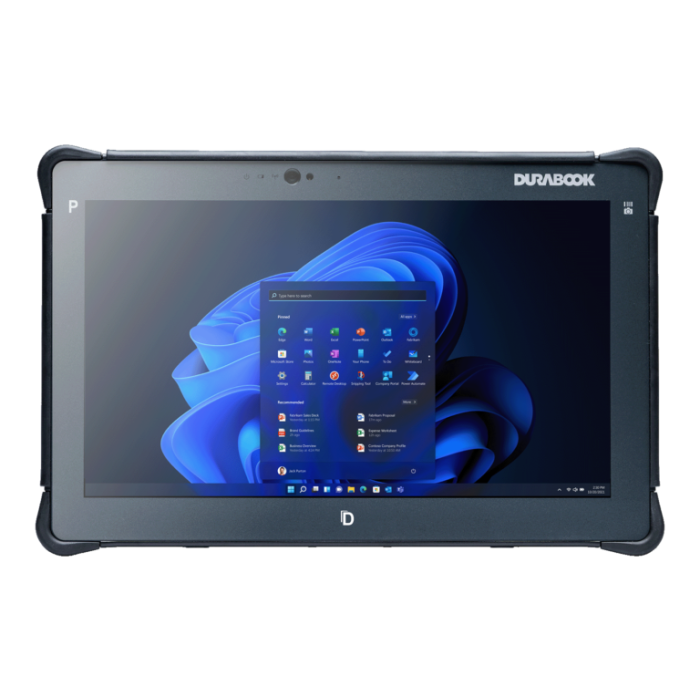

Crafted for the toughest conditions, the R11 stands as the most compact 11.6” tablet in its fully rugged category globally, weighing merely 1.2kg (2.65lb) and measuring a slim 20mm (0.79″) thick. Its sleek, streamlined exterior and tidy form complements its rugged reputation, ensuring peak operational performance in any scenario. Equipped with a 12th Gen Intel® Core™ processor, an IP66 design, and 4-foot drop protection, it is meticulously engineered to deliver the optimal balance of functionality, performance, and reliability, thereby enhancing the efficiency of today’s professional workforce.
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function
Operating System
Windows® 11 Pro 64-bit
Processors
Intel® Core™ i7-1255U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.7 GHz, 2P+8E cores)
Intel® Core™ i5-1235U (12th Gen) Processor with vPro™ (12MB Cache, up to 4.4 GHz, 2P+8E cores)
Memory
1 slot of 8GB up to 32GB (4800MHz DDR5)
Storage
256GB NVMe PCIe SSD
Optional 512GB/1TB PCIe SSD
Graphics
Intel® Iris® Xe Graphics
Camera
Integrated 2.0 MP front-facing camera
Optional 8.0 MP auto-focus rear camera with flash
Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 1
Keyboard & Input
6 buttons (2 user-definable keys)
I/O Ports
Thunderbolt 4 x 1
USB 3.2 Gen2 (type A) x 1
Micro HDMI x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
Docking connector (35-pin Pogo) x 1
Nano SIM card x 1
DC-In jack x 1
Optional 10/100/1000 Ethernet (RJ-45) x 12
Optional smart card reader x 12
Optional 1D/2D barcode reader x 1
Optional RF antenna pass-through for GPS and WWAN1
Expansion Slots
Optional RJ-45 x 1 or LF/HF-RFID (NFC) or Smart Card Reader or MSR+Smart Card Reader or RJ-45/RS-232/Smart Card Reader2
Wireless & Communications
Intel® Wi-Fi 6E AX211 (802.11 ax)
Bluetooth® V5.3
Optional dedicated GPS module (UBLOX-NEO-M8N)1
Optional GPS and 4G LTE multi-carrier mobile broadband1
Optional RF antenna pass-through for GPS and WWAN1
Security
Intel® vPro™ Technology
TPM 2.0
NIST BIOS compliant
Stealth mode
Kensington lock
Optional Night vision mode4
Optional smart card reader2
Optional LF/HF-RFID (NFC) reader2
Power
AC adapter : 100-240V, 50Hz-60Hz, 65W
Main battery Li-Ion, 11.1V, 3950mAh, 8.5 hours3
Optional long life battery Li-Ion 11.1V, 6900mAh, 15 hours3
Dimension & Weight
299 mm (L) x 192 mm (W) x 20 mm (H)
1.2 kg
Warranty
3-year limited warranty standard
GPS/WWAN and dedicated GPS are mutually exclusive.
Mutually exclusive options.
Tested using the MobileMark 2014 battery life benchmark. Results may vary under different situations including hardware configuration, software, operating conditions, power management settings and other factors.
Night vision mode is available only for sunlight readable display.
Description
Crafted for the toughest conditions, the R11 stands as the most compact 11.6” tablet in its fully rugged category globally, weighing merely 1.2kg (2.65lb) and measuring a slim 20mm (0.79″) thick. Its sleek, streamlined exterior and tidy form complements its rugged reputation, ensuring peak operational performance in any scenario. Equipped with a 12th Gen Intel® Core™ processor, an IP66 design, and 4-foot drop protection, it is meticulously engineered to deliver the optimal balance of functionality, performance, and reliability, thereby enhancing the efficiency of today’s professional workforce.
