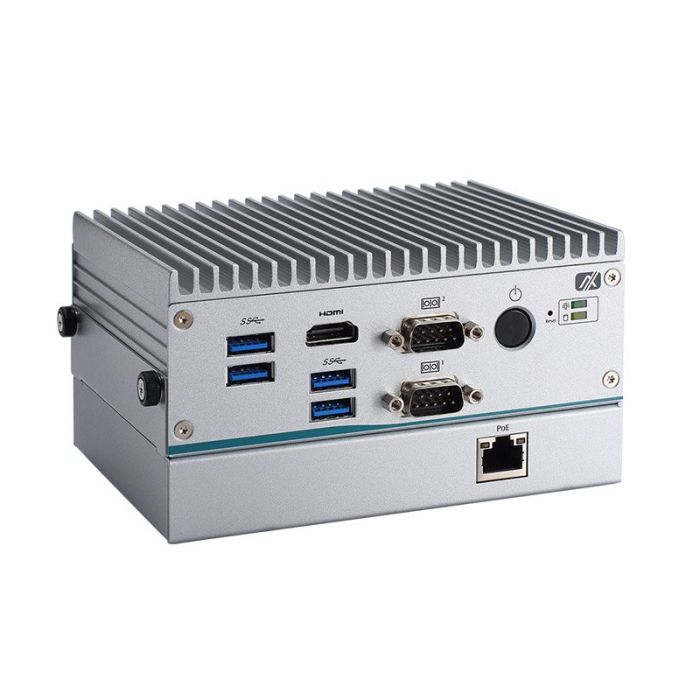

eBOX565-312-FL Celeron N3350, 1-CH PoE
Fanless Embedded System with Intel® Celeron® Processor N3350, 2 HDMI, 4 USB 3.0, 2 COM, 1 GbE LAN and 1-CH PoE
Fanless Embedded System with Intel® Celeron® Processor N3350, 2 HDMI, 4 USB 3.0, 2 COM, 1 GbE LAN and 1-CH PoE
● Intel® Celeron® processor N3350
● 204-pin DDR3L-1867 SO-DIMM for up to 8GB of memory
● Supports 1-CH PoE, IEEE802.3af
● Supports 2 HDMI, 2 COM and 4 USB 3.0
● One swappable 2.5" SATA HDD drive bay
● AXView 2.0 intelligent remote monitoring software for IIoT
● Ultra-compact enclosure design
● Trusted Platform Module 1.2 (TPM) 1.2
More Information
| Brand |
Axiomtek |
| Specifications |
|
Standard Color
|
Silver
|
|
Construction
|
Aluminum extrusion and heavy-duty steel, IP40
|
|
CPU
|
Intel® Celeron® processor N3350
|
|
System Memory
|
1 x 204-pin DDR3L-1867 SO-DIMM, up to 8GB
|
|
Chipset
|
SoC integrated
|
|
BIOS
|
AMI
|
|
System I/O Outlet
|
2 x RS-232/422/485 2 x HDMI
1 x 10/100/1000 Mbps Ethernet (Intel® i211-AT)
1 x Gigabit PoE (IEEE 802.3af) port (Intel® i210-AT, 15.4W)
4 x USB 3.0 2 x SMA-type antenna connector
1 x AT/ATX quick switch
1 x ATX power switch
1 x Reset button
1 x 12 VDC screw type power input connector
|
|
Watchdog Timer
|
255 levels, 1 to 255 sec.
|
|
Storage
|
1 x 2.5” SATA HDD drive bay (max. up 9.5 mm height) 1 x mSATA (enabled in BIOS setting)
|
|
Expansion Interface
|
1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
|
|
TPM
|
TPM 1.2
|
|
System Indicator
|
1 x green LED for system power-on
1 x yellow LED for HDD active
|
|
Power Supply Input
|
AC 100 to 240V, AC 60W adapter with lock Output: DC 12V @ 5A
|
|
Operating Temperature
|
-20°C to +55°C (-4°F to +131°F) (with W.T. DRAM/SSD)
|
|
Humidity
|
10% to 95%, non-condensing
|
|
Vibration Endurance
|
3 Grms with SSD™ (5 to 500Hz, X, Y, Z directions)
|
|
Dimensions
|
141.6 mm (5.57") (W) x 106 mm (4.17") (D) x 78.85 mm (3.10") (H)
|
|
Weight
|
(net/gross) 1.074 kg (1.76lb)/1.67 kg (3.68lb)
|
|
Certifications
|
CE, FCC Class A
|
|
EOS Support
|
Win 10 IoT, Linux, AXView 2.0
|
|
|
|
|
|
|
|
| Description |
Fanless Embedded System with Intel® Celeron® Processor N3350, 2 HDMI, 4 USB 3.0, 2 COM, 1 GbE LAN and 1-CH PoE
● Intel® Celeron® processor N3350
● 204-pin DDR3L-1867 SO-DIMM for up to 8GB of memory
● Supports 1-CH PoE, IEEE802.3af
● Supports 2 HDMI, 2 COM and 4 USB 3.0
● One swappable 2.5" SATA HDD drive bay
● AXView 2.0 intelligent remote monitoring software for IIoT
● Ultra-compact enclosure design
● Trusted Platform Module 1.2 (TPM) 1.2
|
