1 x Flexible I/O Window (default : 2 x DB9 half cut bracket)
Watchdog Timer
65536 levels, 1 to 65535 sec.
Storage
1 x 2.5” HDD/SSD bay (max. up 9.5 mm height)
1 x mSATA (enabled in BIOS setting)
Expansion Interface
2 x Full-size PCI Express Mini Card slot (USB + PCI Express signal)
1 x SIM slot
TPM
TPM 1.2
System Indicator
1 x green LED for system power-on
1 x yellow LED for HDD/SSD active
Power Input
9 to 36 VDC
Operating Temperature
Turbo Mode -20°C to +65°C (-4°F to +149°F) (with W.T. SSD/DRAM for 9 to 36 VDC) (default) Non-turbo Mode -20°C to +70°C (-4°F to +158°F) (with W.T. SSD/DRAM for 12 or 24 VDC)
Humidity
10% to 95%, non-condensing
Shock
IEC 60068-2-27 (with SSD: 50G, half sine, 11 ms duration)
Dimensions
200 mm (7.87”) (W) x 120 mm (4.72”) (D) x 65 mm (2.55”) (H)
Weight
(net/gross) 1.38 kg (3.04 lb)/2.08 kg (4.59 lb)
Certifications
CE, FCC Class A
EOS support
Win 10 IoT, Linux, AXView 2.0
Description

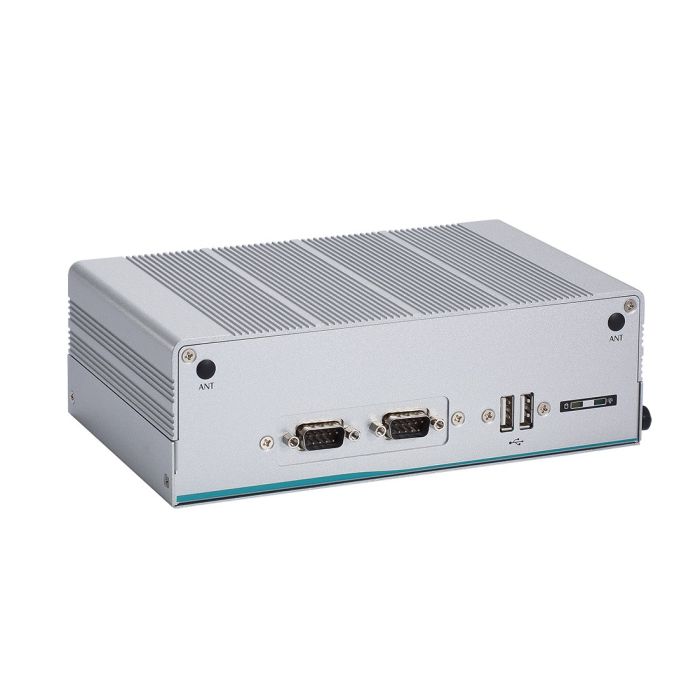

Fanless Embedded System with Intel® Celeron® N3350 2.4 GHz/Pentium® N4200 2.5 GHz, HDMI, 2 GbE LANs, 6 USB, 4 COM and 9 to 36 VDC
● Intel® Celeron® N3350/Pentium® N4200 onboard
● 204-pin DDR3L-1866 SO-DIMM for up to 8GB of memory
● Support HDMI, 2 GbE LANs, 4 COM and 6 USB
● Flexible I/O Window supported
● Trusted Platform Module 1.2 (TPM) 1.2
● -20°C to +70°C operating temperature range
● 9 to 36 VDC wide range DC input
● AXView 2.0 intelligent remote monitoring software for IIoT
