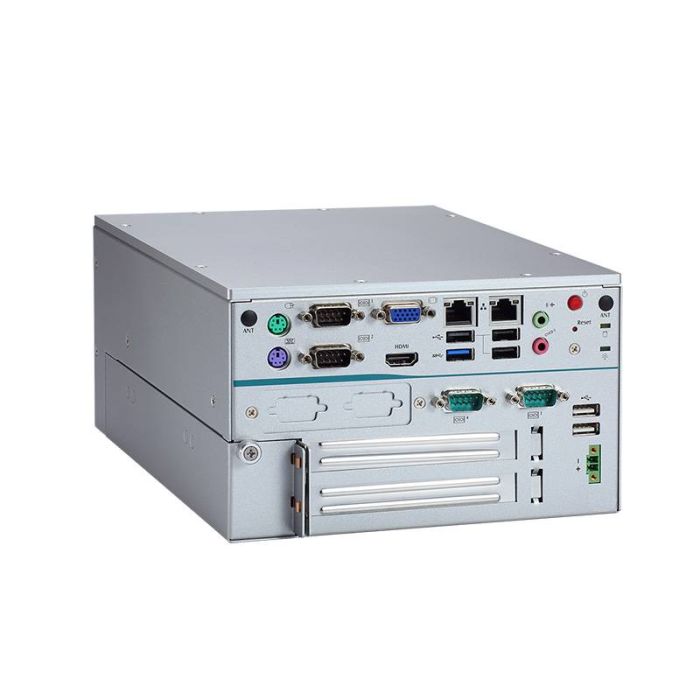

eBOX638-842-FL - Celeron J1900, 9 to 36 VDC Input

A$0.00

In stock

SKU

eBOX638-842-FL

Fanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input

Fanless Embedded System with Intel® Celeron® Processor J1900, VGA, HDMI, 4 COM, 6 USB, Dual Expansion Slots and 9 to 36 VDC Input

● Intel® Celeron® Processor J1900 2.0 GHz

● Fanless operation design with full feature I/O

● HDMI and VGA with dual-view supported

● 6 USB, 2 LANs and 4 COM

● PCI Express Mini Card slot

● Flexible I/O window design

● Dual PCI or PCIe x1 expansion slots

● 9 to 36 VDC wide range power input

Brand

Axiomtek

Specifications

Standard Color	Silver
Construction	Aluminum extrusion and heavy-duty steel, IP40
CPU	Intel® Celeron® Quad-Core J1900 2.0 GHz
System Memory	1 x 204-pin DDR3L-1066/1333 SO-DIMM, up to 8GB
Chipset	SoC integrated
BIOS	AMI
System I/O Outlet	2 x RS-232/422/485 2 x RS-232 2 x 10/100/1000Mbps Ethernet (Realtek 8111F) 5 x USB 2.0 1 x USB 3.0 1 x Audio (Mic-in/Line-out) 1 x PS/2 keyboard & mouse 1 x HDMI 1 x VGA 1 x VDC power input connector 1 x ATX power switch 1 x Reset switch 2 x SMA-type antenna connector 1 x Flexible I/O window (default: 2 x DB9 half cut bracket)
Watchdog Timer	255 levels, 1 to 255 sec.
Storage	1 x 2.5” SATA HDD drive bay (max. up 15 mm height) 1 x mSATA (enabled in BIOS setting)
Expansion Interface	2 x PCI or 2 x PCIe x1 slots 1 x Full-size PCI Express Mini Card slot (PCI Express + USB signal) 1 x SIM slot
TPM	N/A
System Indicator	1 x green LED for system power 1 x yellow LED for HDD active
Power Input	9 to 36 VDC
Operating Temperature	-10°C to +55°C (14°F to +131 F ) (with W.T. DRAM & SSD)
Humidity	10% to 90%, non-condensing
Vibration Endurance	2 Grms with SSD (5 to 500 Hz, X, Y, Z directions)
Dimensions	192mm (7.56”) (W) x 230 mm (9.05”) (D) x 115.8 mm (4.56") (H)
Weight	(net/gross) 4.1 kg (9.03 lb) /4.8 kg (10.58 lb)
Certifications	CE compliance
EOS support	WES7, Win 10 IoT
