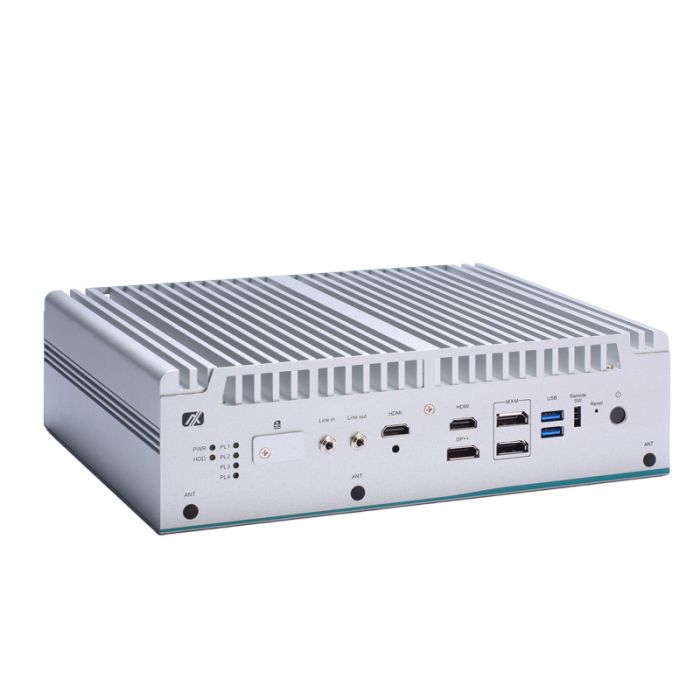

eBOX671B Fanless Embedded System with 13th/12th Gen

Standard Color

Silver

Construction

Aluminum extrusion and heavy-duty steel, IP40

CPU

LGA1700 socket 13th/12th Gen Intel® Core™ i9/i7/i5/i3 & Celeron® processor (35W/65W)

System Memory

2 x 262-pin DDR5-4800 SO-DIMM, up to 64GB

Chipset

Intel® R680E

BIOS

AMI

System I/O Outlet

Front side

2 x HDMI 1.4b (1 x lockable)

1  x DisplayPort 1.4a

2  x DisplayPort 1.4a via optional MXM kit

2 x USB 3.2 Gen1

1 x Power button

1 x Remote switch

1 x Front access SIM slot with cover (for M.2 Key B)

1 x Reset switch connector

3 x Antenna opening

1 x Audio (MIC-in/Line-out); by request

Rear side

4 x USB 3.2 Gen2

3 x 2.5 GbE (Intel® i226-IT)*

1  x GbE LAN (Intel® i219-LM)*

2  x RS-232/422/485 with autoflow

2 x RS-232

1 x Phoenix type VDC power input connector

1 x Flexible IO window (Default: 2 x DB9 half-cut bracket)

1  x Grounding screw

2  x Antenna opening

Watchdog Timer

255 levels, 1 to 255 sec.

Storage

2 x 2.5" SATA HDD/SSD (up to 15 mm height; RAID 0,1 supported)

1 x NVMe by M.2 Key M 2280

1 x mSATA (enable in BIOS setting)

Expansion Interface

1 x Full-size PCI Express Mini Card slot (USB 2.0 + PCIe + SIM + mSATA signal)

1 x M.2 Key M 2280 socket (for storage)

1 x M.2 Key E 2230 socket (for Wi-Fi 6E)

1 x M.2 Key B 3052 socket (for 5G)

1 x Internal SIM slot for PCIe Mini Card slot

1 x MXM3.1 type A connector

TPM

TPM 2.0

System Indicator

1 x Green LED for system power

1 x Orange LED for HDD active

4 x Programmable Green LED

Power Input

9 to 36 VDC with ACC ignition

Operating Temperature

Without MXM module:

-40°C to +65°C (-40°F to +140°F) (with W.T. DRAM & SSD, CPU TDP 35W) -40°C to +55°C (-40°F to +122°F) (with W.T. DRAM & SSD, CPU TDP 65W)

With MXM module:

-40°C to +55°C (-40°F to +122°F) (with W.T. DRAM & SSD & MXM kit, CPU TDP 35W)

Humidity

10% - 90%, non-condensing

Shock Vibration

IEC 60068-2-27 (w/ SSD: 50G, half-sine, 11 ms duration)

Vibration Endurance

IEC 60068-2-64 (w/ SSD: 3Grms STD, random, 5 - 500 Hz, 1 hr/axis)

Package Vibration

MIL-STD-810G 514.6C-II compliance

Dimensions

280 mm (11.02") (W) x 210 mm (8.26") (D) x 80.5 mm (3.16") (H)

Weight (net/gross)

4.9 kg (10.8 lb)/7 kg (15.43 lb)

Certifications

CE, FCC Class A, UKCA

EOS Support

Win 10 IoT, Win 11 IoT, Linux

* 4 PoE by request (PoE IEEE802.3at, up to 60W)
