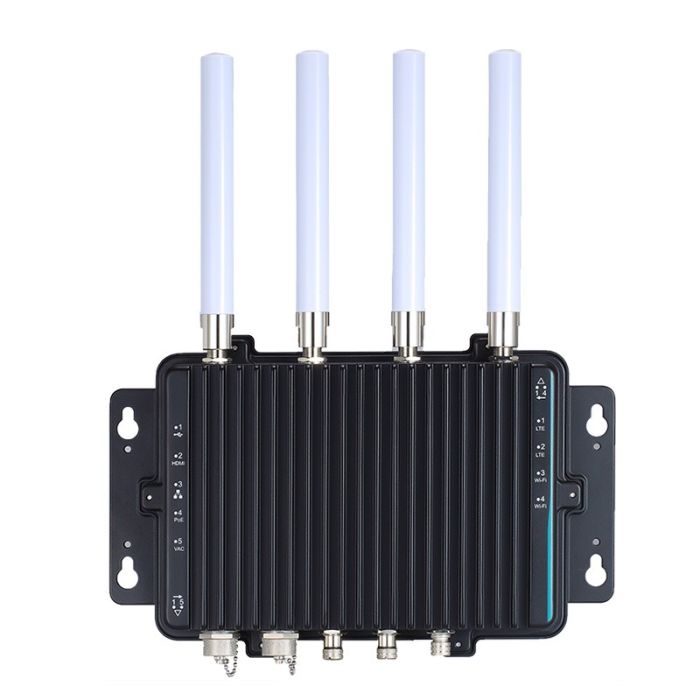

eBOX800-900-FL Rugged IP67 Fanless Edge System with NVIDIA Jetson TX2

A$0.00

In stock

SKU

eBOX800-900-FL

Rugged IP67-rated Fanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI, 1 GbE LAN, 1-CH PoE, 1 USB 2.0 and 100 to 240 VAC Power Input

Rugged IP67-rated Fanless Edge System with NVIDIA® JETSON™ TX2, 1 HDMI, 1 GbE LAN, 1-CH PoE, 1 USB 2.0 and 100 to 240 VAC Power Input

· IP67-rating for outdoor use

· NVIDIA® JETSON™ TX2 with Pascal™, 256 CUDA cores GPU

· High AI computing performance for GPU-accelerated processing

· -30°C to +60°C operating temperature range

· 100 to 240 VAC wide range power input with 10kV surge protection

· 4 N-jack antenna openings with water proof design

· Features M12 lockable I/Os

· 1 IEEE 802.3at GbE LAN port (30W)

· Rich I/O options for customized designs and mission-critical projects

brand

Axiomtek

Specifications

CPU	CPU Board: NVIDIA® JETSON™ TX2 CPU: HMP dual denver 2/2 MB L2 + quad ARM® A57/2 MB L2 GPU: NVIDIA® Pascal™, 256 CUDA cores
Chipset	SoC integrated
System Memory	8GB 128-bit LPDDR4 onboard
BIOS	N/A
COM	N/A
USB	1 x C3 USB 2.0
Ethernet/PoE	1 x 10/100/1000 Mbps Ethernet (M12 X-Code) 1 x Gigabit PoE (IEEE 802.3at, 30W) (M12 X-Code)
Display	1 x C3 HDMI with FHD supported
Digital I/O	N/A
Audio	N/A
Storage	1 x M.2 2280 KEY M with PCIe 2.0 x4 for NVMe SSD (optional) Onboard 32GB eMMC (via JETSON™ TX2)
Expansion	1 x Full-size PCI Express Mini Card slot (USB + PCI Express signal) 1 x SIM slot
Others	4 x N-jack antenna opening with water proof design
Power Supply	100 to 240 VAC with 10kV SPD
Watchdog Timer	Watchdog timer embedded in NVIDIA® JETSON™ TX2
Construction	Aluminum die-casting and heavy-duty steel, IP67
Operating Temperature	-30°C to +60°C (-22°F to +140°F)
Relative Humidity	10% to 95% , non-condensing
Vibration	3 Grms with SSD (5 to 500Hz, X, Y, Z directions)
Shock
Dimensions (W x D x H)	210 x 366.83 x 83 mm (8.27” x 14.44” x 3.27")
Weight (net/gross)	4.31 kg (9.5 lb)/5.1 kg (11.24 lb)
Certifications	CE, FCC Class A
EOS Support	Linux ubuntu 16.04
Mounting	Wall mount VESA mount
