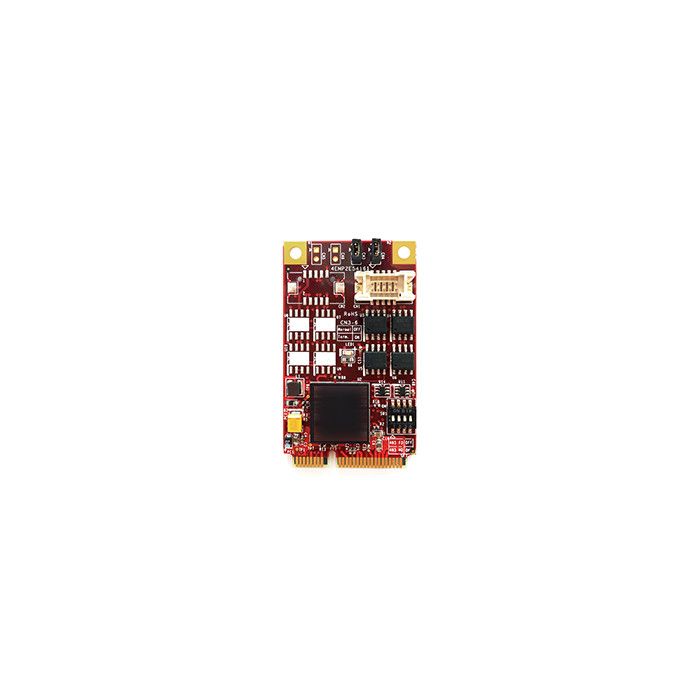

EMP2-X202, mPCIe to 422/485 module

A$0.00

In stock

SKU

EMP2-X202

mPCIe to 2x 422/485 Module

· PCIe 2.0 compliant. RS-422/485 mode configurable by switch. Supports 485HD(Half Duplex) and 485FD(Full Duplex)

· 4800 to 3Mbps serial data rate. 16C550 compatible. 256-byte FIFOs

· Industrial temperature(-40 ºC to 85 ºC) operation

· Flexible design with DB-9 connectors and cable

· Termination Resistor by jumper setting

· ESD up to 15KV(Electrostatic Discharge) protection circuit to prevent system damage

· 30μ" golden finger, 3-year warranty

· Industrial design, manufactured in innodisk Taiwan

Specifications

Module Name	EMP2-X202
Module Type	mPCIe to 2 x RS422/485 Module
Function	Serial
Form Factor	mPCIe
Input I/F	PCI Express 2.0 x 1
Output I/F	RS-422/485
Output connector	DB-9 x 2
TDP	0.33W (3.3V x 100mA)
Dimensions (W x L x H/mm)	30 x 50.9 x 8.25
Temperature	Operation: W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C
Environment	Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms
Notes	Please download driver from MyInnodisk website. Windows: XP(32 bit), 7(32/64 bit), 8/8.1(32/64 bit), 10, WES7, CE7.0 Linux: Kernel 2.6.x and above. (We can provide Linux source for modification.)
